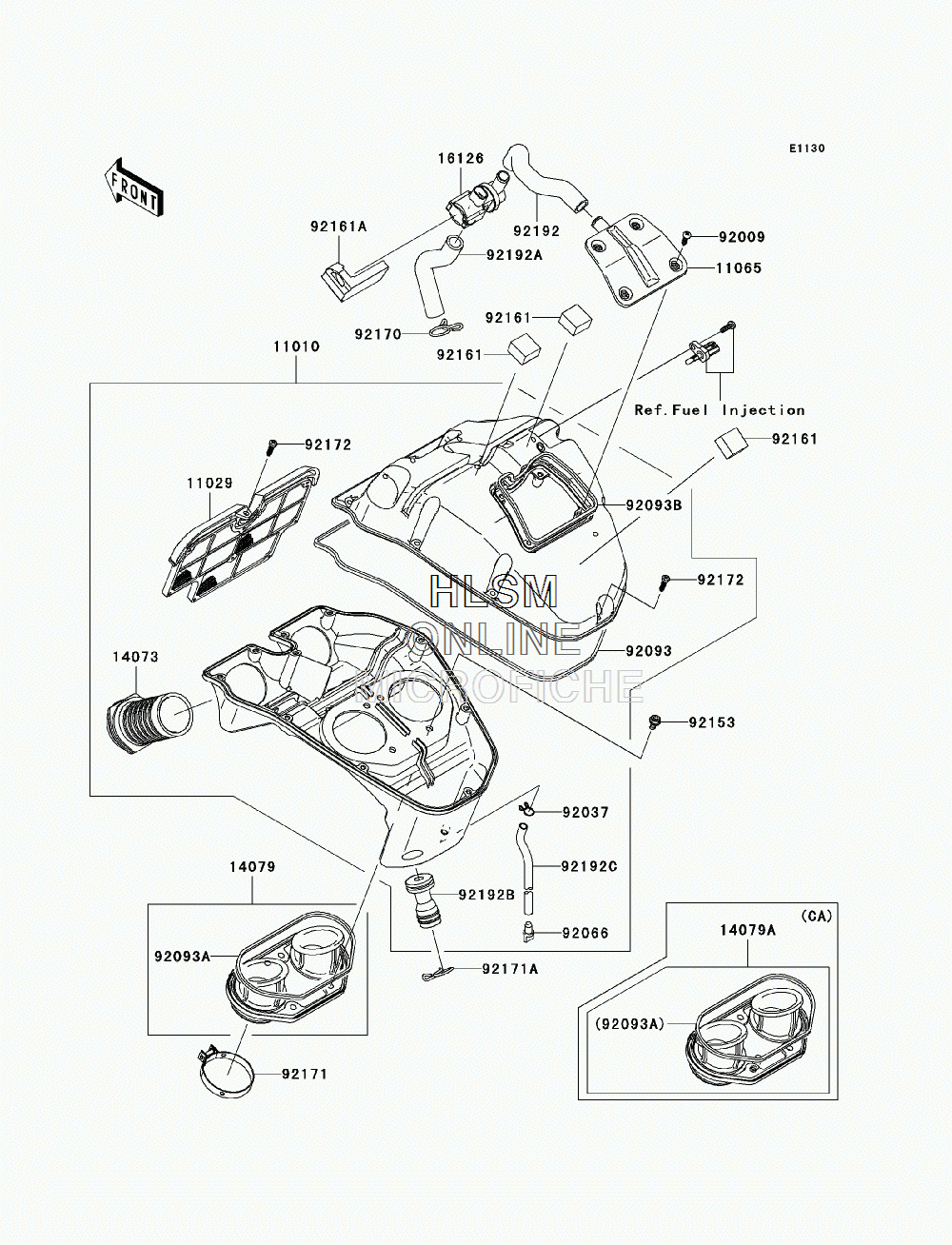

AIR CLEANER для Kawasaki VERSYS (KLE650CAF) - 2010 года выпуска
-
№АртикулНазвание
-
1101011010-0153 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1102911029-0008 ELEMENT-ASSY-AIR FILTERELEMENT-ASSY-AIR FILTER
-
1106511065-0120 CAP,UPPER CASECAP,UPPER CASE
-
1407314073-0110 DUCTDUCT
-
1407914079-0017 HOLDER-ASSY (EXCEPT CALIF.)HOLDER-ASSY (EXCEPT CALIF.)
-
14079A14079-0021 HOLDER-ASSY (CALIF. ONLY)HOLDER-ASSY (CALIF. ONLY)
-
1612616126-0019 VALVE,AIR SWITINGVALVE,AIR SWITING
-
9200992009-1984 SCREW,TAPPING,5X16SCREW,TAPPING,5X16
-
9203792037-147 CLAMP,TUBECLAMP,TUBE
-
9206692066-1211 PLUG,DRAINPLUG,DRAIN
-
9209392093-0045 SEAL,L=1080SEAL,L=1080
-
92093A92093-0046 SEALSEAL
-
92093B92093-0048 SEAL,L=368SEAL,L=368
-
9215392153-0759 BOLT,SOCKET,6X12BOLT,SOCKET,6X12
-
9216192161-0302 DAMPER,T=15DAMPER,T=15
-
92161A92161-0309 DAMPERDAMPER
-
9217092170-1017 CLAMPCLAMP
-
9217192171-0314 CLAMPCLAMP
-
92171A92171-0435 CLAMPCLAMP
-
9217292172-0009 SCREW,TAPPING,5X20SCREW,TAPPING,5X20
-
9219292192-0231 TUBE,ASV-A/CTUBE,ASV-A/C
-
92192A92192-0232 TUBE,HEAD-ASVTUBE,HEAD-ASV
-
92192B92192-0264 TUBE,BREATHERTUBE,BREATHER
-
92192C92192-0325 TUBE,DRAIN,6X9X280TUBE,DRAIN,6X9X280
