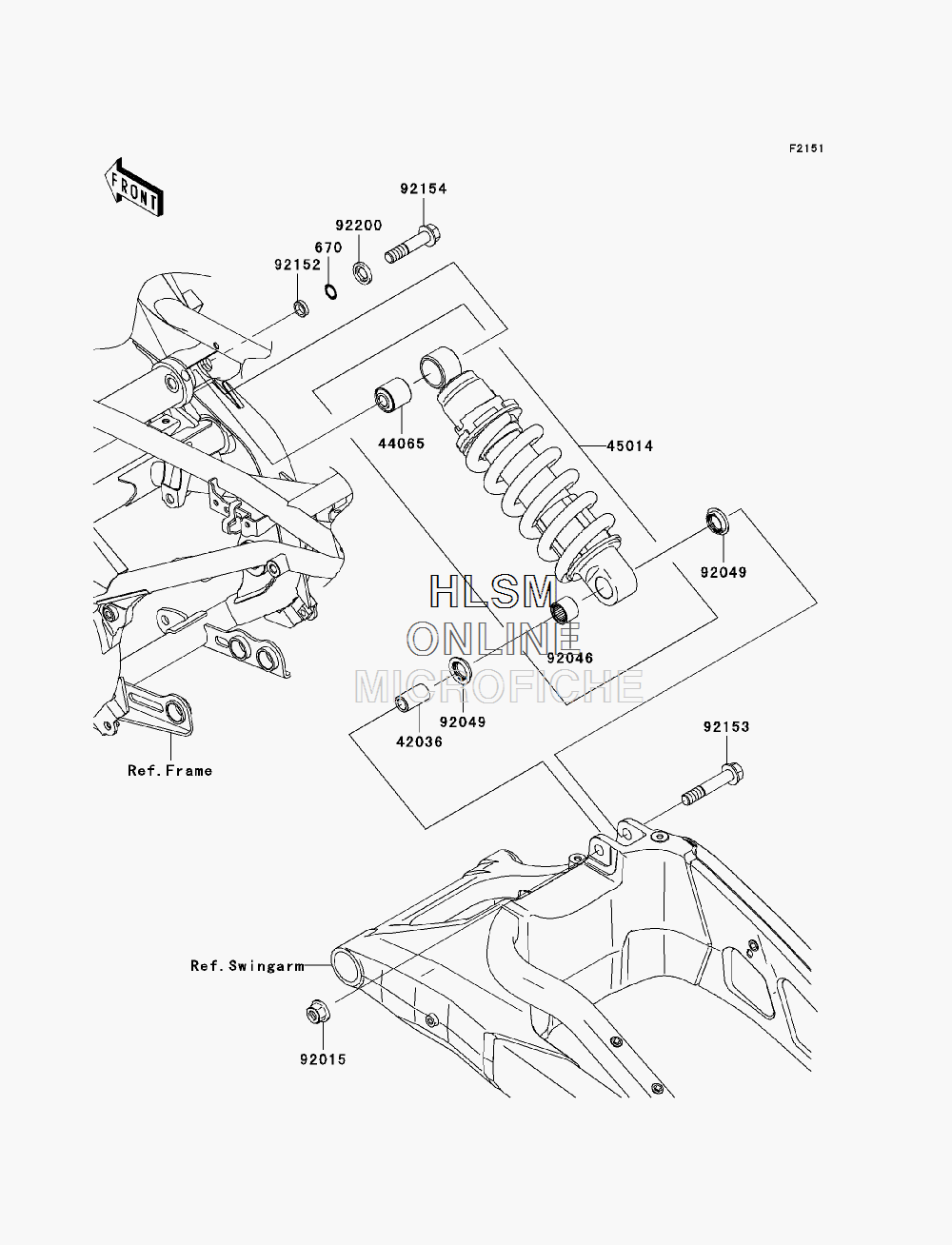

SUSPENSION - SHOCK ABSORBER для Kawasaki VERSYS (KLE650CAF) - 2010 года выпуска
-
№АртикулНазвание
-
670670B2012 O RING,12MMO RING,12MM
-
4203642036-0024 SLEEVE,12.1X18X32SLEEVE,12.1X18X32
-
4406544065-1017 BUSHING,SHOCKABSORBERBUSHING,SHOCKABSORBER
-
4501445014-0147-458 SHOCKABSORBER,P.SILVER (FOR 660)SHOCKABSORBER,P.SILVER (FOR 660)
-
9201592015-1433 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
-
9204692046-1272 BEARING-NEEDLE,SFYZM182417BEARING-NEEDLE,SFYZM182417
-
9204992049-1493 SEAL-OIL,KCR MF018N1SEAL-OIL,KCR MF018N1
-
9215292152-0811 COLLAR,12.1X16.8X4.4COLLAR,12.1X16.8X4.4
-
9215392153-1767 BOLT,FLANGED,12X65BOLT,FLANGED,12X65
-
9215492154-0289 BOLT,FLANGED,12X55BOLT,FLANGED,12X55
-
9220092200-0519 WASHER,12.5X24X3.2WASHER,12.5X24X3.2
