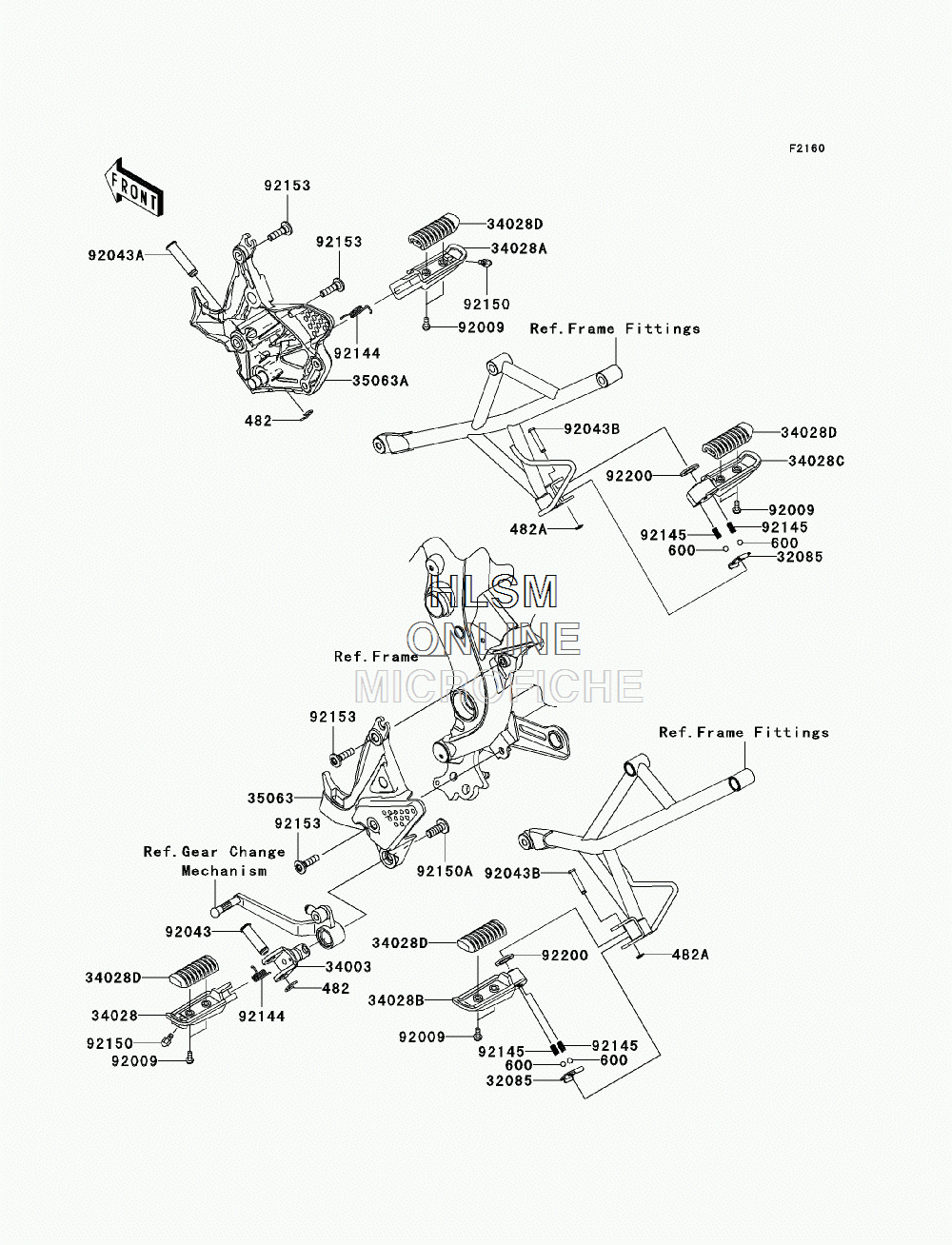

FOOTRESTS для Kawasaki VERSYS (KLE650CAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 482
    482EA0100 CIRCLIP-TYPE-E,10MM
    CIRCLIP-TYPE-E,10MM
  • 482A
    482EA5000 CIRCLIP-TYPE-E
    CIRCLIP-TYPE-E
  • 600
    600A0800 BALL-STEEL,1/4"
    BALL-STEEL,1/4"
  • 32085
    32085-0047 STOPPER, REAR STEP
    STOPPER, REAR STEP
  • 34003
    34003-1474 HOLDER-STEP, FRONT, LEFT HAND
    HOLDER-STEP, FRONT, LEFT HAND
  • 34028
    34028-0127 STEP, FRONT, LEFT HAND
    STEP, FRONT, LEFT HAND
  • 34028A
    34028-0128 STEP, FRONT, RIGHT HAND
    STEP, FRONT, RIGHT HAND
  • 34028B
    34028-0129 STEP, REAR, LEFT HAND
    STEP, REAR, LEFT HAND
  • 34028C
    34028-0130 STEP, REAR, RIGHT HAND
    STEP, REAR, RIGHT HAND
  • 34028D
    34028-0133 STEP,RUBBER
    STEP,RUBBER
  • 35063
    35063-0310-458 STAY,STEP, FRONT, LEFT HAND,P.SILVER (FOR 660)
    STAY,STEP, FRONT, LEFT HAND,P.SILVER (FOR 660)
  • 35063A
    35063-0401-458 STAY,STEP, FRONT, RIGHT HAND,P.SILVER (FOR 660)
    STAY,STEP, FRONT, RIGHT HAND,P.SILVER (FOR 660)
  • 92009
    92009-1404 SCREW,5X14
    SCREW,5X14
  • 92043
    92043-0150 PIN,12X37
    PIN,12X37
  • 92043A
    92043-1145 PIN,12X42.5
    PIN,12X42.5
  • 92043B
    92043-1271 PIN,6X34
    PIN,6X34
  • 92144
    92144-1567 SPRING,STEP RETURN
    SPRING,STEP RETURN
  • 92145
    92145-1319 SPRING
    SPRING
  • 92150
    92150-1114 BOLT,BANK SENSOR
    BOLT,BANK SENSOR
  • 92150A
    92150-1268 BOLT,SOCKET,10X25
    BOLT,SOCKET,10X25
  • 92153
    92153-1630 BOLT,SOCKET,8X30
    BOLT,SOCKET,8X30
  • 92200
    92200-0043 WASHER,16X26X2.3
    WASHER,16X26X2.3
