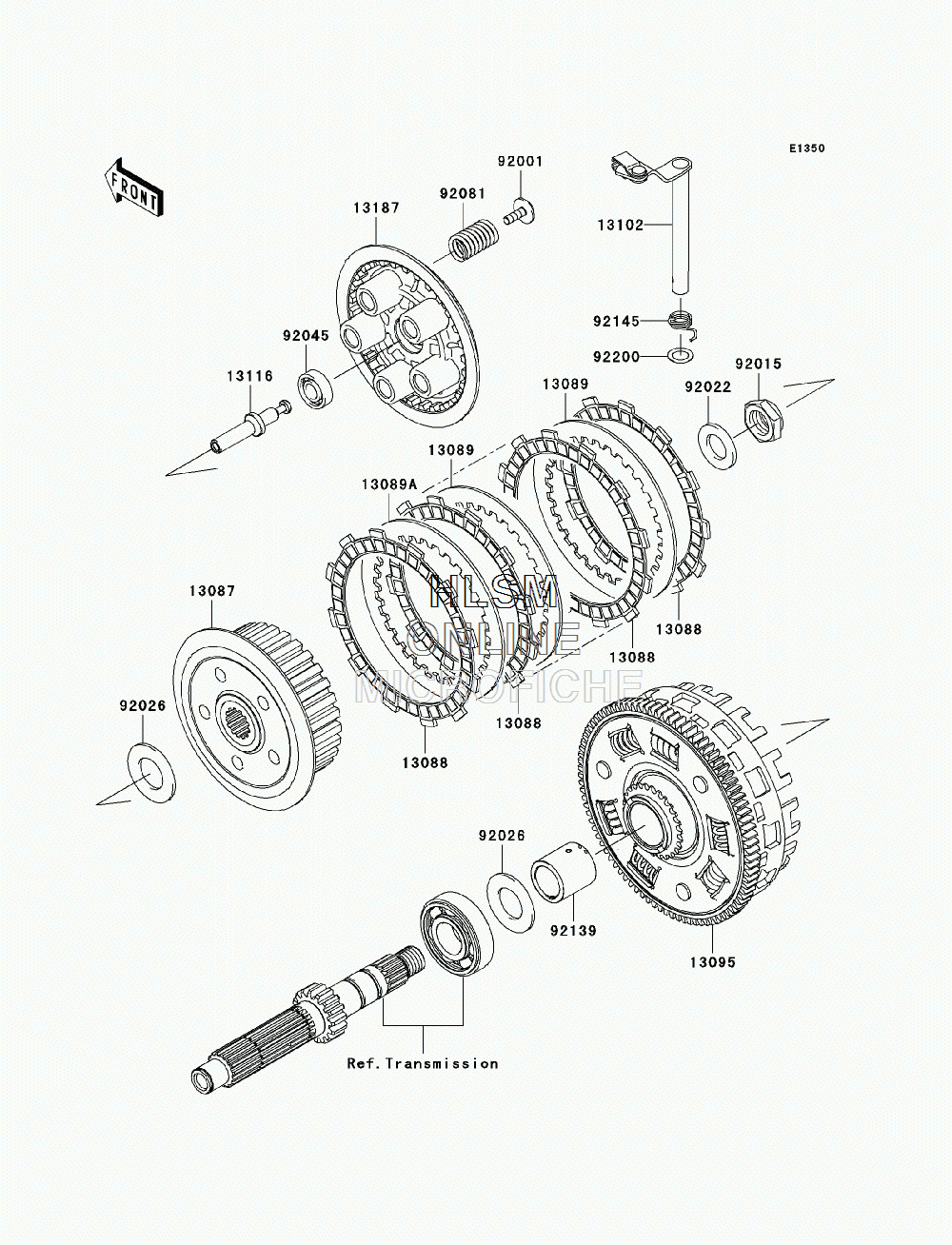

CLUTCH для Kawasaki VERSYS (KLE650CAF) - 2010 года выпуска
-
№АртикулНазвание
-
1308713087-0042 HUB-CLUTCHHUB-CLUTCH
-
1308813088-1105 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-0016 PLATE-CLUTCH,T=2.3PLATE-CLUTCH,T=2.3
-
13089A13089-0017 PLATE-CLUTCH,T=2.6PLATE-CLUTCH,T=2.6
-
1309513095-0112 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310213102-0029 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1311613116-0018 ROD-PUSHROD-PUSH
-
1318713187-1006 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
9200192001-1066 BOLT,FLANGED,6X18BOLT,FLANGED,6X18
-
9201592015-1555 NUT,20MMNUT,20MM
-
9202292022-1868 WASHER,20.3X36X3.7WASHER,20.3X36X3.7
-
9202692026-022 SPACER,25.5X47X2.5SPACER,25.5X47X2.5
-
9204592045-1235 BEARING-BALL,6001C3ML01BEARING-BALL,6001C3ML01
-
9208192081-1033 SPRING,CLUTCHSPRING,CLUTCH
-
9213992139-0106 BUSHINGBUSHING
-
9214592145-0066 SPRING,CLUTCH RELEASESPRING,CLUTCH RELEASE
-
9220092200-1487 WASHER,12X18.5X0.5WASHER,12X18.5X0.5
