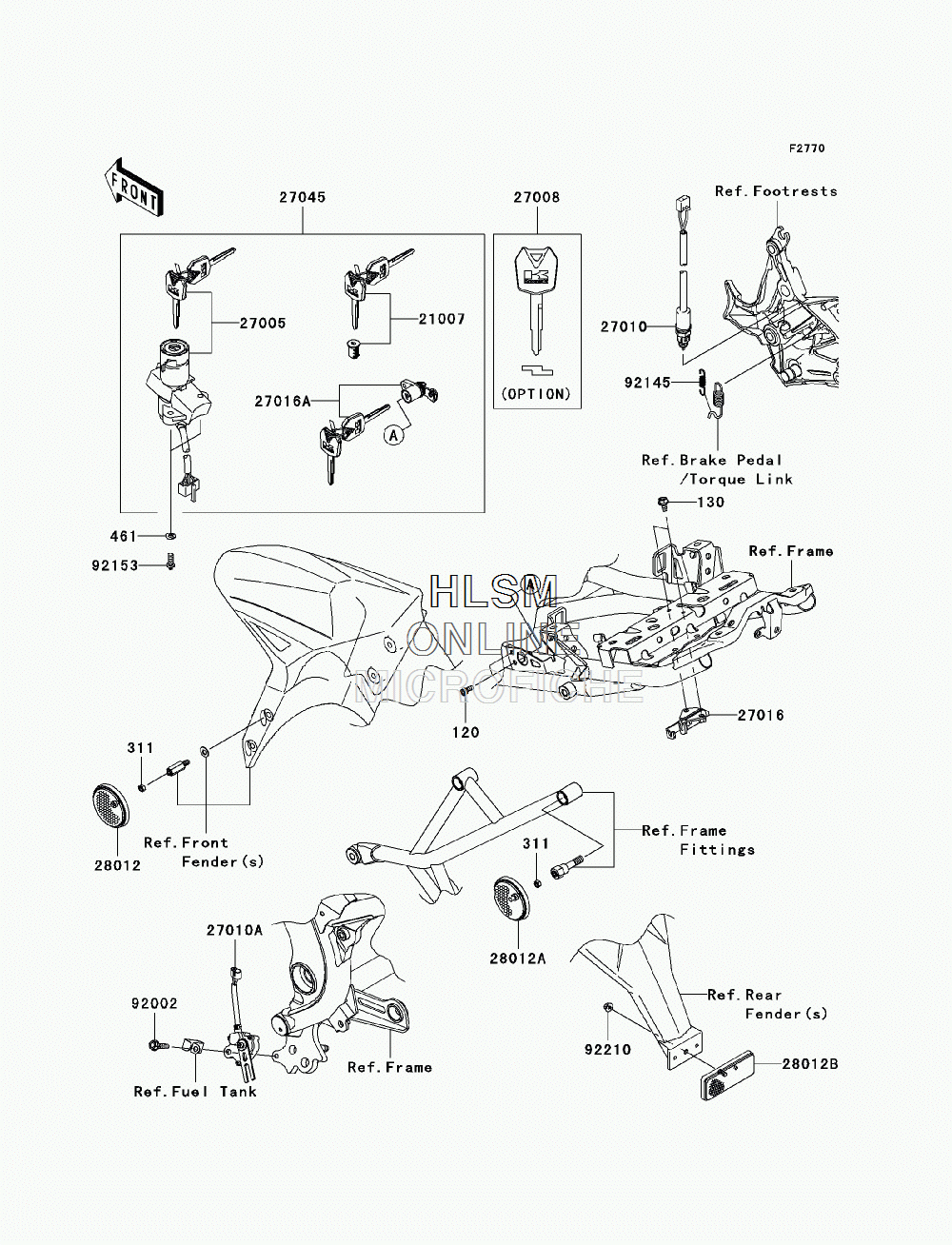

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki VERSYS (KLE650CAF) - 2010 года выпуска
-
№АртикулНазвание
-
120120CB0512 BOLT-SOCKET,5X12BOLT-SOCKET,5X12
-
130130BA0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
311311AB0500 NUT-HEXNUT-HEX
-
461461DA0600 WASHER-SPRING,6MMWASHER-SPRING,6MM
-
2100721007-5057 ROTOR,LOCK,TANK CAPROTOR,LOCK,TANK CAP
-
2700527005-5141 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0030 KEY-LOCK,BLANK (OPTION)KEY-LOCK,BLANK (OPTION)
-
2701027010-0072 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010A27010-1455 SWITCH,SIDE STANDSWITCH,SIDE STAND
-
2701627016-1115 LOCK-ASSY,SEAT STRIKERLOCK-ASSY,SEAT STRIKER
-
27016A27016-5309 LOCK-ASSY,SEATLOCK-ASSY,SEAT
-
2704527045-5360 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0001 REFLECTOR-REFLEX, FRONT,SIDEREFLECTOR-REFLEX, FRONT,SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
9200292002-1582 BOLT,FLANGED,6X25BOLT,FLANGED,6X25
-
9214592145-0091 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215392153-0967 BOLT,TORX,6X16BOLT,TORX,6X16
-
9221092210-0007 NUT,FLANGED,5MMNUT,FLANGED,5MM
