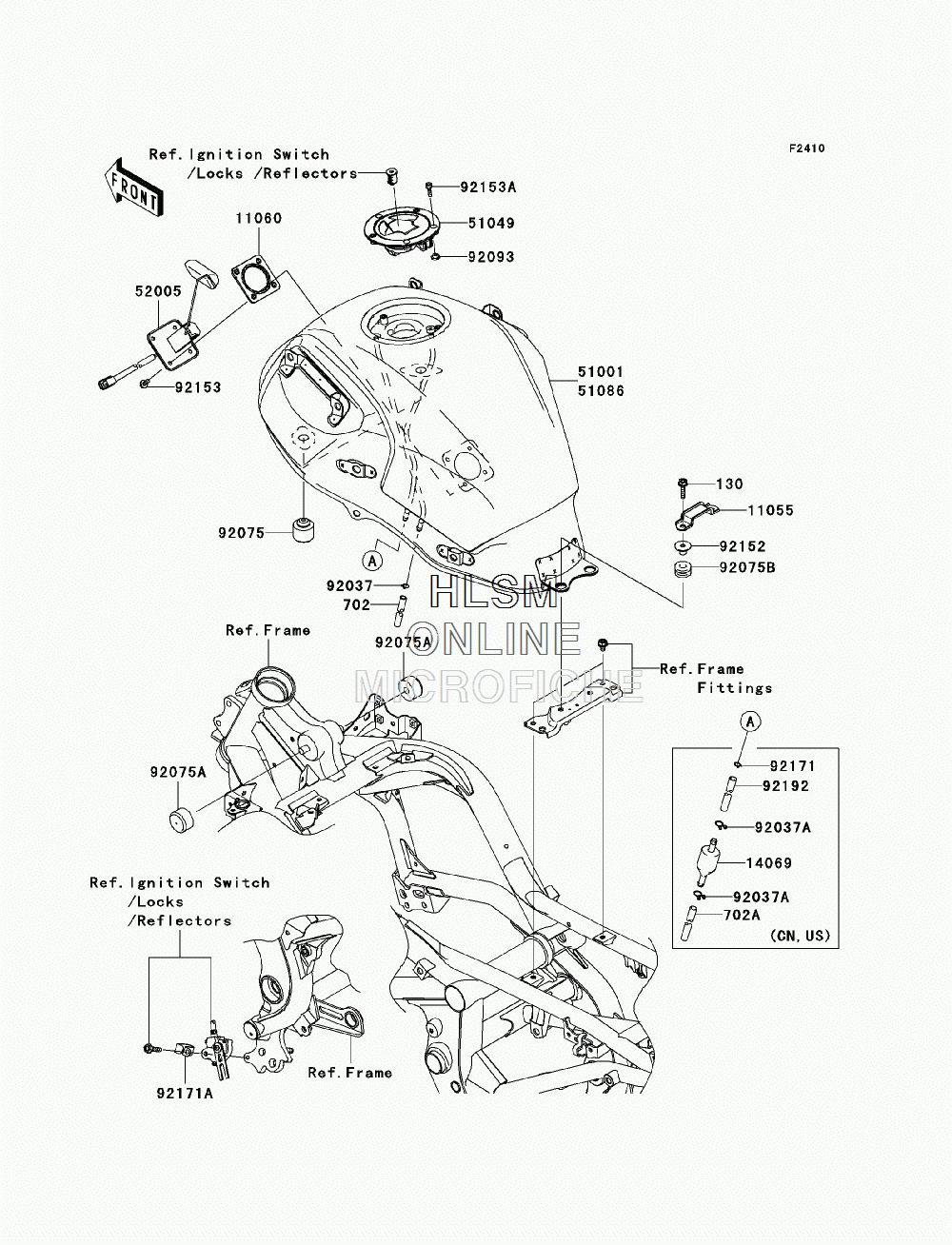

FUEL TANK для Kawasaki VERSYS (KLE650CAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0625 BOLT-FLANGED,6X25
    BOLT-FLANGED,6X25
  • 702
    702A06750 TUBE-RUBBER,6X9X750
    TUBE-RUBBER,6X9X750
  • 702A
    702A07100 TUBE-RUBBER,7X10X100 (EXCEPT CALIF.)
    TUBE-RUBBER,7X10X100 (EXCEPT CALIF.)
  • 11055
    11055-1926 BRACKET,SEAT
    BRACKET,SEAT
  • 11060
    11060-1952 GASKET,FUEL GAUGE
    GASKET,FUEL GAUGE
  • 14069
    14069-1004 BREATHER,FUEL TANK (EXCEPT CALIF.)
    BREATHER,FUEL TANK (EXCEPT CALIF.)
  • 51001
    51001-0332-739 TANK-COMP-FUEL,M.F.S.BLACK (EXCEPT CALIF.) (FOR 660)
    TANK-COMP-FUEL,M.F.S.BLACK (EXCEPT CALIF.) (FOR 660)
  • 51049
    51049-0039 CAP-TANK,FUEL
    CAP-TANK,FUEL
  • 51086
    51086-5308-739 TANK-COMP-FUEL,M.F.S.BLACK (CALIF. ONLY) (FOR 660)
    TANK-COMP-FUEL,M.F.S.BLACK (CALIF. ONLY) (FOR 660)
  • 52005
    52005-0023 GAUGE,FUEL
    GAUGE,FUEL
  • 92037
    92037-010 CLAMP,TUBE
    CLAMP,TUBE
  • 92037A
    92037-147 CLAMP,TUBE (EXCEPT CALIF.)
    CLAMP,TUBE (EXCEPT CALIF.)
  • 92075
    92075-1002 DAMPER
    DAMPER
  • 92075A
    92075-125 DAMPER,FUEL TANK
    DAMPER,FUEL TANK
  • 92075B
    92075-1690 DAMPER
    DAMPER
  • 92093
    92093-1030 SEAL,FUEL TANK CAP
    SEAL,FUEL TANK CAP
  • 92152
    92152-0365 COLLAR
    COLLAR
  • 92153
    92153-1421 BOLT,FLANGED,5X12
    BOLT,FLANGED,5X12
  • 92153A
    92153-1616 BOLT,SOCKET,5X16
    BOLT,SOCKET,5X16
  • 92171
    92171-0573 CLAMP (EXCEPT CALIF.)
    CLAMP (EXCEPT CALIF.)
  • 92171A
    92171-0911 CLAMP
    CLAMP
  • 92192
    92192-0828 TUBE,BREATHER (EXCEPT CALIF.)
    TUBE,BREATHER (EXCEPT CALIF.)
