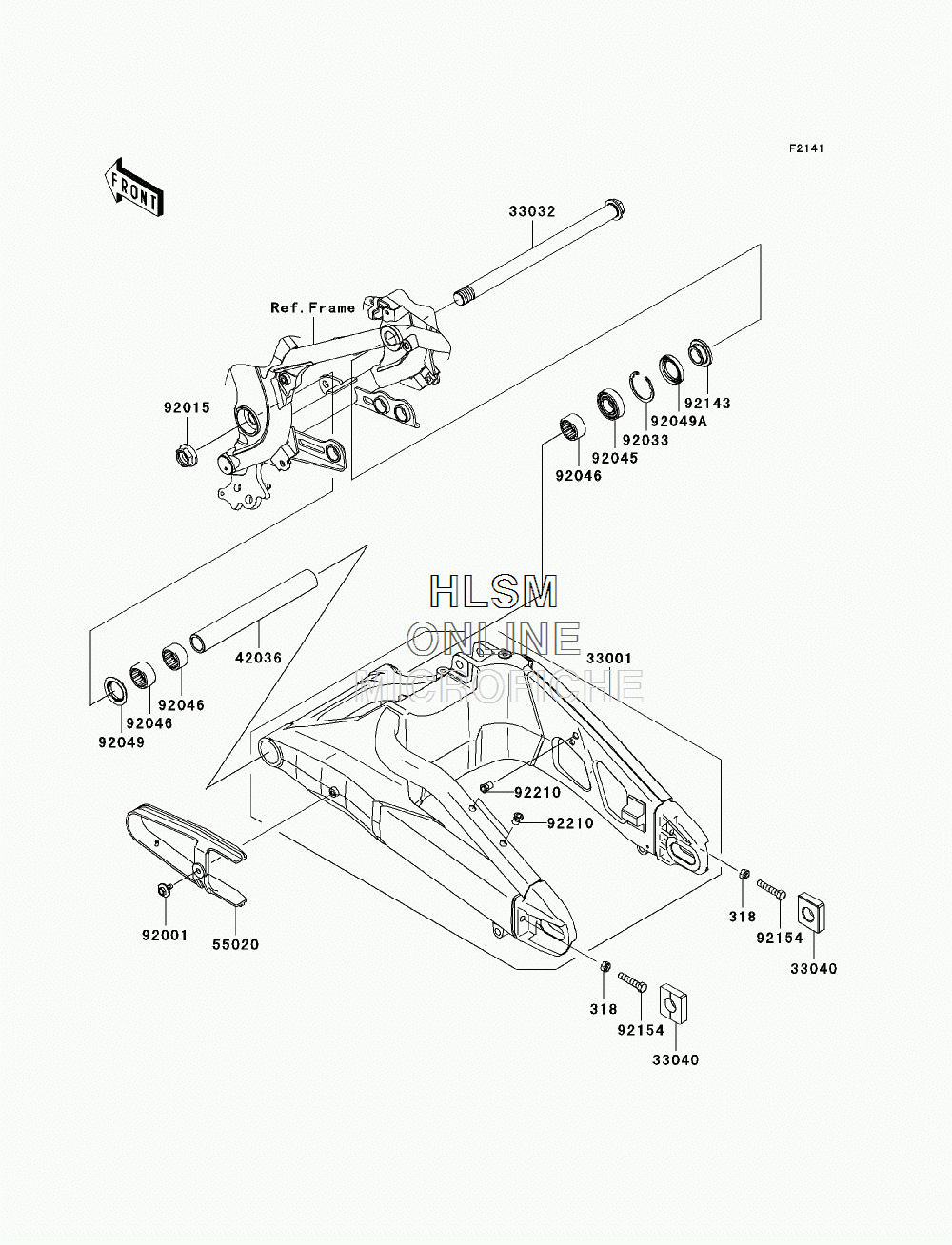

SUSPENSION - SWINGARM для Kawasaki VERSYS (KLE650CAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 318
    318BA0800 NUT-HEX-SMALL,8MM
    NUT-HEX-SMALL,8MM
  • 33001
    33001-0209-458 ARM-COMP-SWING,P.SILVER (FOR 660)
    ARM-COMP-SWING,P.SILVER (FOR 660)
  • 33032
    33032-1142 SHAFT-SWING ARM
    SHAFT-SWING ARM
  • 33040
    33040-1109 ADJUSTER-CHAIN
    ADJUSTER-CHAIN
  • 42036
    42036-1358 SLEEVE,SWING ARM,L=219.5
    SLEEVE,SWING ARM,L=219.5
  • 55020
    55020-0234 GUARD,CHAIN
    GUARD,CHAIN
  • 92001
    92001-1950 BOLT,6X16
    BOLT,6X16
  • 92015
    92015-1724 NUT,FLANGED,20MM
    NUT,FLANGED,20MM
  • 92033
    92033-1041 RING-SNAP,42MM
    RING-SNAP,42MM
  • 92045
    92045-0017 BEARING-BALL,6004UL11
    BEARING-BALL,6004UL11
  • 92046
    92046-0008 BEARING-NEEDLE,7E-HVS 28X34X17
    BEARING-NEEDLE,7E-HVS 28X34X17
  • 92049
    92049-1181 SEAL-OIL
    SEAL-OIL
  • 92049A
    92049-1185 SEAL-OIL,TC28426.5
    SEAL-OIL,TC28426.5
  • 92143
    92143-1727 COLLAR,SWING ARM, RIGHT HAND,L=12.5
    COLLAR,SWING ARM, RIGHT HAND,L=12.5
  • 92154
    92154-0288 BOLT,8X40
    BOLT,8X40
  • 92210
    92210-1397 NUT,POP,6MM,L=15
    NUT,POP,6MM,L=15
