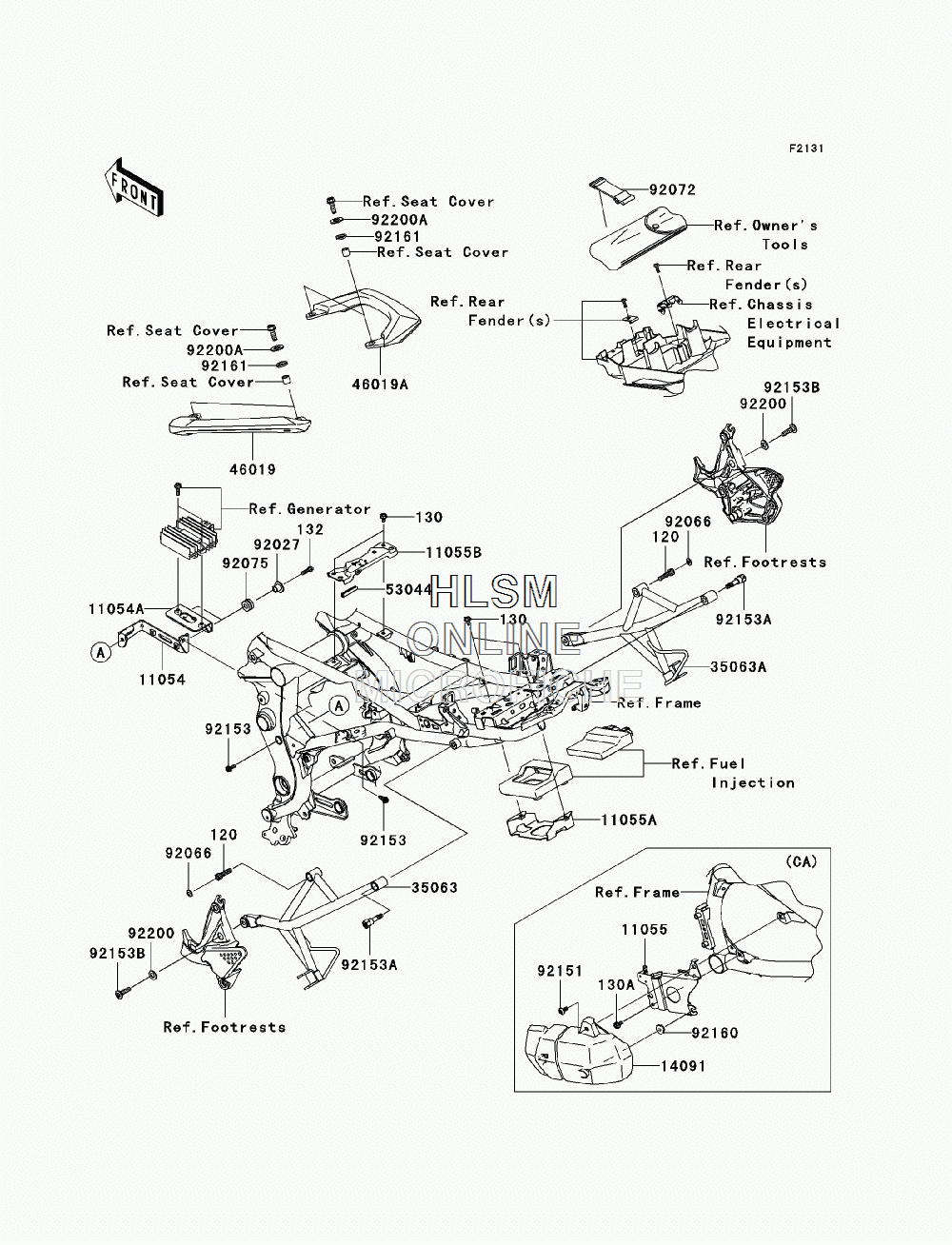

FRAME FITTINGS для Kawasaki VERSYS (KLE650CAF) - 2010 года выпуска
-
№АртикулНазвание
-
120120CA0830 BOLT-SOCKET,8X30BOLT-SOCKET,8X30
-
130130BA0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
130A130BB0612 BOLT-FLANGED,6X12 (CALIF. ONLY)BOLT-FLANGED,6X12 (CALIF. ONLY)
-
132132BB0622 BOLT-FLANGED-SMALL,6X22BOLT-FLANGED-SMALL,6X22
-
1105411054-1283 BRACKET, REGULATORBRACKET, REGULATOR
-
11054A11054-1284 BRACKET, REGULATORBRACKET, REGULATOR
-
1105511055-0586 BRACKET,CANISTER (CALIF. ONLY)BRACKET,CANISTER (CALIF. ONLY)
-
11055A11055-1872 BRACKET,ECUBRACKET,ECU
-
11055B11055-1929 BRACKET,FUEL TANKBRACKET,FUEL TANK
-
1409114091-1586 COVER,CANISTER (CALIF. ONLY)COVER,CANISTER (CALIF. ONLY)
-
3506335063-0478-26M STAY,STEP, REAR, LEFT HAND,F.M.GRAY (FOR 660)STAY,STEP, REAR, LEFT HAND,F.M.GRAY (FOR 660)
-
35063A35063-0479-26M STAY,STEP, REAR, RIGHT HAND,F.M.GRAY (FOR 660)STAY,STEP, REAR, RIGHT HAND,F.M.GRAY (FOR 660)
-
4601946019-0030 GRIP-ASSY, LEFT HANDGRIP-ASSY, LEFT HAND
-
46019A46019-0031 GRIP-ASSY, RIGHT HANDGRIP-ASSY, RIGHT HAND
-
5304453044-1174 TRIM,L=40TRIM,L=40
-
9202792027-1450 COLLAR,L=13.1,BLACKCOLLAR,L=13.1,BLACK
-
9206692066-1216 PLUGPLUG
-
9207292072-1176 BAND,TOOLBAND,TOOL
-
9207592075-209 DAMPERDAMPER
-
9215192151-1654 BOLT,SOCKET,6X14 (CALIF. ONLY)BOLT,SOCKET,6X14 (CALIF. ONLY)
-
9215392153-1517 BOLT,SOCKET,6X16BOLT,SOCKET,6X16
-
92153A92153-1532 BOLTBOLT
-
92153B92153-1630 BOLT,SOCKET,8X30BOLT,SOCKET,8X30
-
9216092160-1613 DAMPER (CALIF. ONLY)DAMPER (CALIF. ONLY)
-
9216192161-0867 DAMPER,14X22X3DAMPER,14X22X3
-
9220092200-0328 WASHER,10.2X20X1.6WASHER,10.2X20X1.6
-
92200A92200-0568 WASHER,8.2X26X3.2WASHER,8.2X26X3.2
