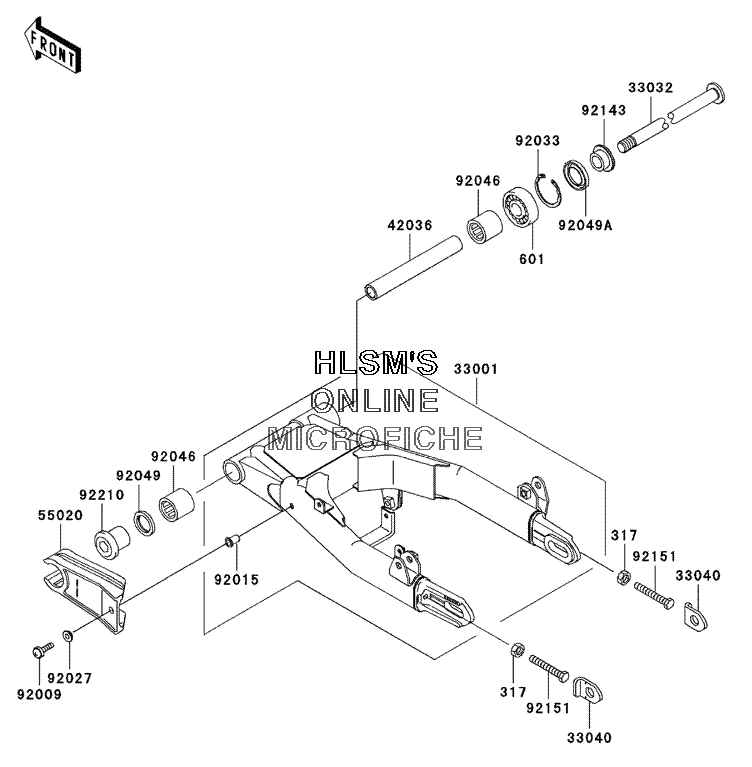

SUSPENSION - SWINGARM для Kawasaki W650 - 2001 года выпуска

  • №
    Артикул
    Название
  • 317
    317G0800 NUT, HEX, SMALL, 8MM
    NUT, HEX, SMALL, 8MM
  • 601
    601A6203 BEARING, BALL, #6203
    BEARING, BALL, #6203
  • 33001
    33001-1565 ARM, COMP, SWING
    ARM, COMP, SWING
  • 33032
    33032-1192 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-1181 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 42036
    42036-1352 SLEEVE, SWING ARM, L=186.6
    SLEEVE, SWING ARM, L=186.6
  • 55020
    55020-1686 GUARD, CHAIN
    GUARD, CHAIN
  • 92009
    92009-1663 SCREW, 6X18
    SCREW, 6X18
  • 92015
    92015-1791 NUT, POP, 6MM, L=15
    NUT, POP, 6MM, L=15
  • 92027
    92027-1965 COLLAR, L=4.5
    COLLAR, L=4.5
  • 92033
    92033-1040 RING, SNAP, 40MM
    RING, SNAP, 40MM
  • 92046
    92046-1035 BEARING, NEEDLE, BHTM2530, 1
    BEARING, NEEDLE, BHTM2530, 1
  • 92049
    92049-1060 SEAL, OIL, MH25334
    SEAL, OIL, MH25334
  • 92049A
    92049-1388 SEAL, OIL, VC25X40X5
    SEAL, OIL, VC25X40X5
  • 92143
    92143-1188 COLLAR, REAR AXLE, L=14
    COLLAR, REAR AXLE, L=14
  • 92151
    92151-1578 BOLT, 8X55
    BOLT, 8X55
  • 92210
    92210-1077 NUT, PIVOT, 16MM
    NUT, PIVOT, 16MM
