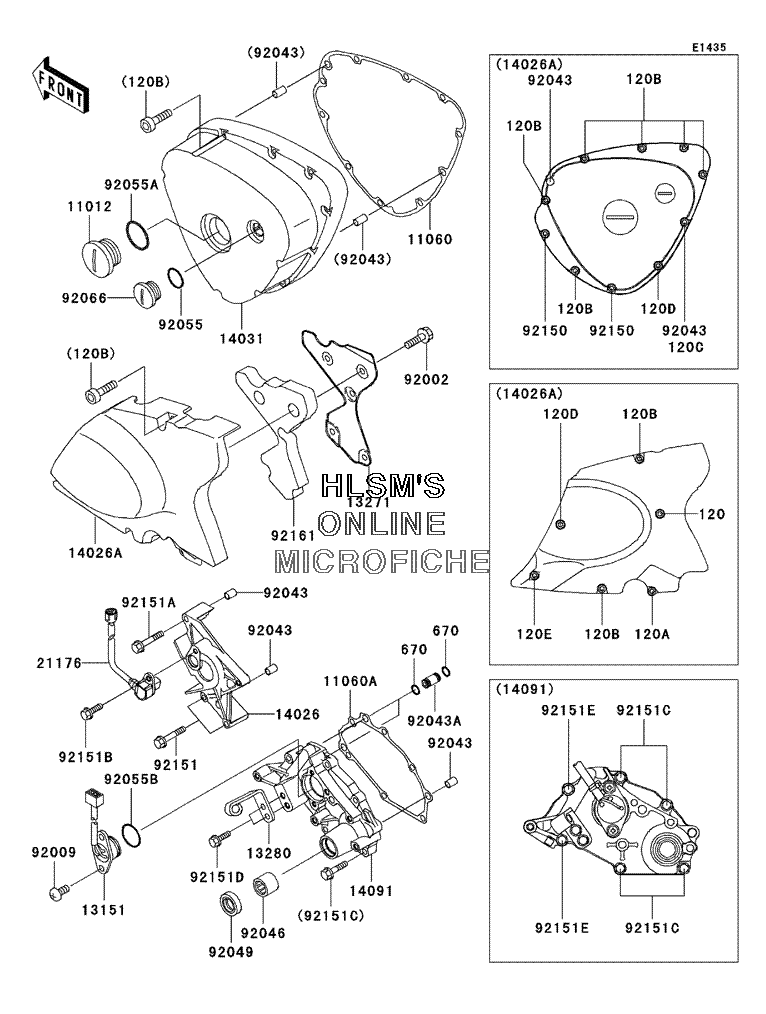

ENGINE COVER(S) - LEFT для Kawasaki W650 - 2001 года выпуска`
-
№АртикулНазвание
-
120120R0616 BOLT, SOCKETBOLT, SOCKET
-
120A120R0625 BOLT, SOCKETBOLT, SOCKET
-
120B120R0635 BOLT, SOCKETBOLT, SOCKET
-
120C120R0640 BOLT, SOCKET, 6X40BOLT, SOCKET, 6X40
-
120D120R0645 BOLT, SOCKETBOLT, SOCKET
-
120E120R0650 BOLT, SOCKETBOLT, SOCKET
-
670670D1505 O-RINGO-RING
-
1101211012-1817 CAP, GENERATORCAP, GENERATOR
-
1106011060-1892 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11060A11060-1893 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
1315113151-1089 SWITCH, COMPSWITCH, COMP
-
1327113271-1223 PLATE, SOUND ARRESTORPLATE, SOUND ARRESTOR
-
1328013280-1109 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
1402614026-1261 COVER, CHAIN, INSIDECOVER, CHAIN, INSIDE
-
14026A14026-1263 COVER, CHAINCOVER, CHAIN
-
1403114031-1366 COVER, GENERATORCOVER, GENERATOR
-
1409114091-1084 COVER, TRANSMISSIONCOVER, TRANSMISSION
-
2117621176-1090 SENSORSENSOR
-
9200292002-1541 BOLT, 6X10BOLT, 6X10
-
9200992009-1571 SCREW, 5X16SCREW, 5X16
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1588 PINPIN
-
9204692046-1148 BEARING, NEEDLE, HK1312BEARING, NEEDLE, HK1312
-
9204992049-1519 SEAL, OIL, TC13225.5SEAL, OIL, TC13225.5
-
9205592055-1146 O-RINGO-RING
-
92055A92055-1618 O-RING, 39.4X3.1O-RING, 39.4X3.1
-
92055B92055-1619 O-RING, 27.7X2.4O-RING, 27.7X2.4
-
9206692066-1397 PLUGPLUG
-
9215092150-1887 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
-
9215192151-1131 BOLT, 6X40BOLT, 6X40
-
92151A92151-1234 BOLT, 6X50BOLT, 6X50
-
92151B92151-1249 BOLT, 5X12BOLT, 5X12
-
92151C92151-1640 BOLT, 6X25BOLT, 6X25
-
92151D92151-1644 BOLT, 6X16BOLT, 6X16
-
92151E92151-1646 BOLT, 6X35BOLT, 6X35
-
9216192161-1052 DAMPER, SOUND ARRESTORDAMPER, SOUND ARRESTOR
