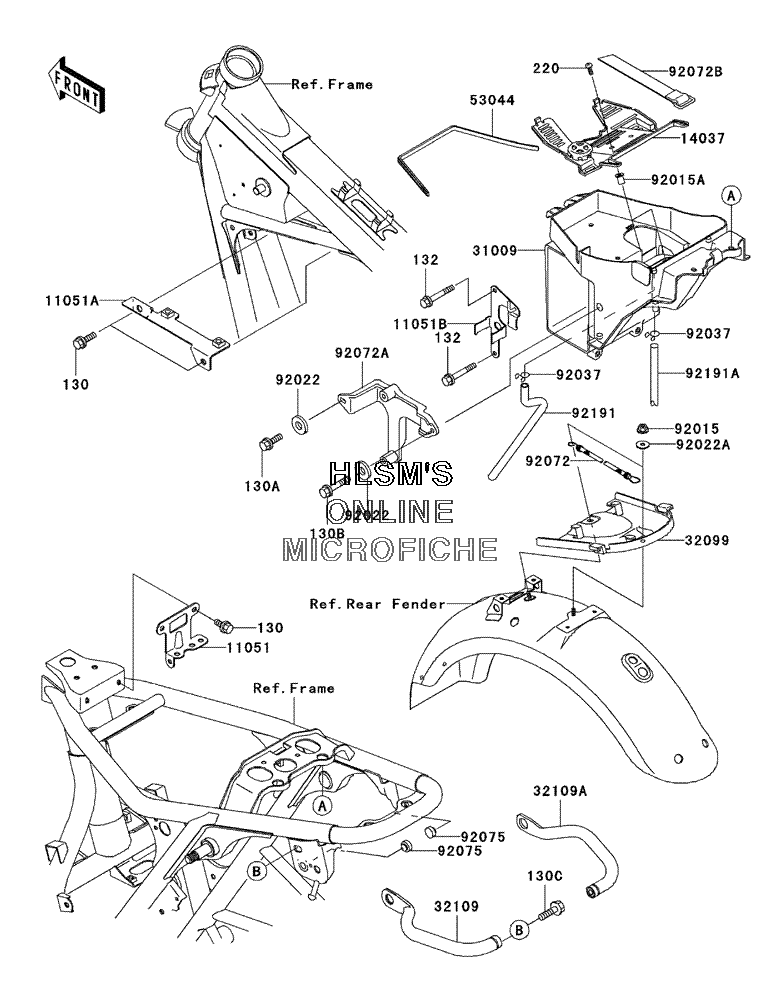

FRAME FITTINGS для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
130130J0610 BOLT, FLANGEDBOLT, FLANGED
-
130A130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
130B130J0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
130C130J0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
132132J0640 BOLT, FLANGED, SMALL, 6X40BOLT, FLANGED, SMALL, 6X40
-
220220C0616 SCREW, PAN, CROS, 6X16 (BLACK)SCREW, PAN, CROS, 6X16 (BLACK)
-
1105111051-1262 BRACKETBRACKET
-
11051A11051-1549 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
11051B11051-1559 BRACKET, RELAYBRACKET, RELAY
-
1403714037-1276 SCREENSCREEN
-
3100931009-1055 CASE, COMP, BATTERYCASE, COMP, BATTERY
-
3209932099-1202 CASE, U LOCKCASE, U LOCK
-
3210932109-1287 GRIP, FRAME (LEFT)GRIP, FRAME (LEFT)
-
32109A32109-1288 GRIP, FRAME (RIGHT)GRIP, FRAME (RIGHT)
-
5304453044-1290 TRIM, L=350TRIM, L=350
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
92015A92015-1700 NUTNUT
-
9202292022-1344 WASHER, 7X16X1.2WASHER, 7X16X1.2
-
92022A92022-1346 WASHER, 6.5X20X1.6 (BLACK)WASHER, 6.5X20X1.6 (BLACK)
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9207292072-1369 BAND, U LOCK CASEBAND, U LOCK CASE
-
92072A92072-1370 BAND, BATTERYBAND, BATTERY
-
92072B92072-1371 BAND, L=410BAND, L=410
-
9207592075-281 DAMPERDAMPER
-
9219192191-1396 TUBE, DRAIN, L=215TUBE, DRAIN, L=215
-
92191A92191-1420 TUBE, 7X10X50TUBE, 7X10X50
