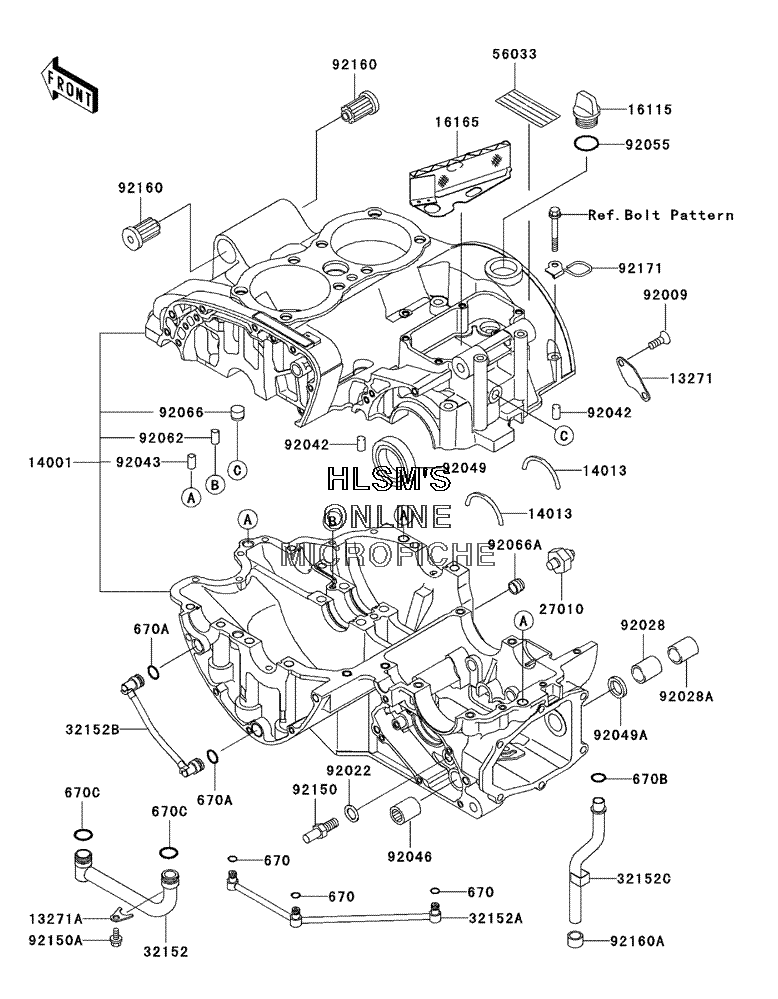

CRANKCASE для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
670670D1505 O-RINGO-RING
-
670A670D2010 O-RINGO-RING
-
670B670D2012 O-RING, 12MMO-RING, 12MM
-
670C670D2014 O-RING, 14MMO-RING, 14MM
-
1327113271-1186 PLATE, BREATHERPLATE, BREATHER
-
13271A13271-1187 PLATE, OIL PIPEPLATE, OIL PIPE
-
1400114001-1260 SET, CRANKCASESET, CRANKCASE
-
1401314013-1004 RING, POSITION, T=1.98RING, POSITION, T=1.98
-
1611516115-1009 CAP, OIL FILLERCAP, OIL FILLER
-
1616516165-1068 SEPARATOR, BREATHERSEPARATOR, BREATHER
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
3215232152-1902 PIPE, MAIN OILPIPE, MAIN OIL
-
32152A32152-1903 PIPE, TRANSMISSION OILPIPE, TRANSMISSION OIL
-
32152B32152-1904 PIPE, BALANCER OILPIPE, BALANCER OIL
-
32152C32152-1905 PIPE, BREATHER OILPIPE, BREATHER OIL
-
5603356033-1155 LABEL, MANUAL, OIL CAPACITYLABEL, MANUAL, OIL CAPACITY
-
9200992009-1880 SCREW, 6X12SCREW, 6X12
-
9202292022-1973 WASHER, 10X15X1.0WASHER, 10X15X1.0
-
9202892028-1899 BUSHING, KICK LEVER, INSIDEBUSHING, KICK LEVER, INSIDE
-
92028A92028-1900 BUSHING, KICK LEVER, OUTSIDEBUSHING, KICK LEVER, OUTSIDE
-
9204292042-016 PIN, DOWEL, 6X16PIN, DOWEL, 6X16
-
9204392043-1037 PIN, DOWEL, 10X14PIN, DOWEL, 10X14
-
9204692046-1148 BEARING, NEEDLE, HK1312BEARING, NEEDLE, HK1312
-
9204992049-1501 SEAL, OIL, HTC40628SEAL, OIL, HTC40628
-
92049A92049-1523 SEAL, OIL, KICK PEDALSEAL, OIL, KICK PEDAL
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
9206292062-1079 NOZZLE, 6X8 (BLACK)NOZZLE, 6X8 (BLACK)
-
9206692066-1355 PLUG, 10.5MMPLUG, 10.5MM
-
92066A92066-1530 PLUG, MAIN GALLERYPLUG, MAIN GALLERY
-
9215092150-1803 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92150A92150-1826 BOLT, 6X12BOLT, 6X12
-
9216092160-1483 DAMPER, ENGINE MOUNTDAMPER, ENGINE MOUNT
-
92160A92160-1986 DAMPER, BREATHER PIPEDAMPER, BREATHER PIPE
-
9217192171-1124 CLAMP, DRAIN TUBECLAMP, DRAIN TUBE
