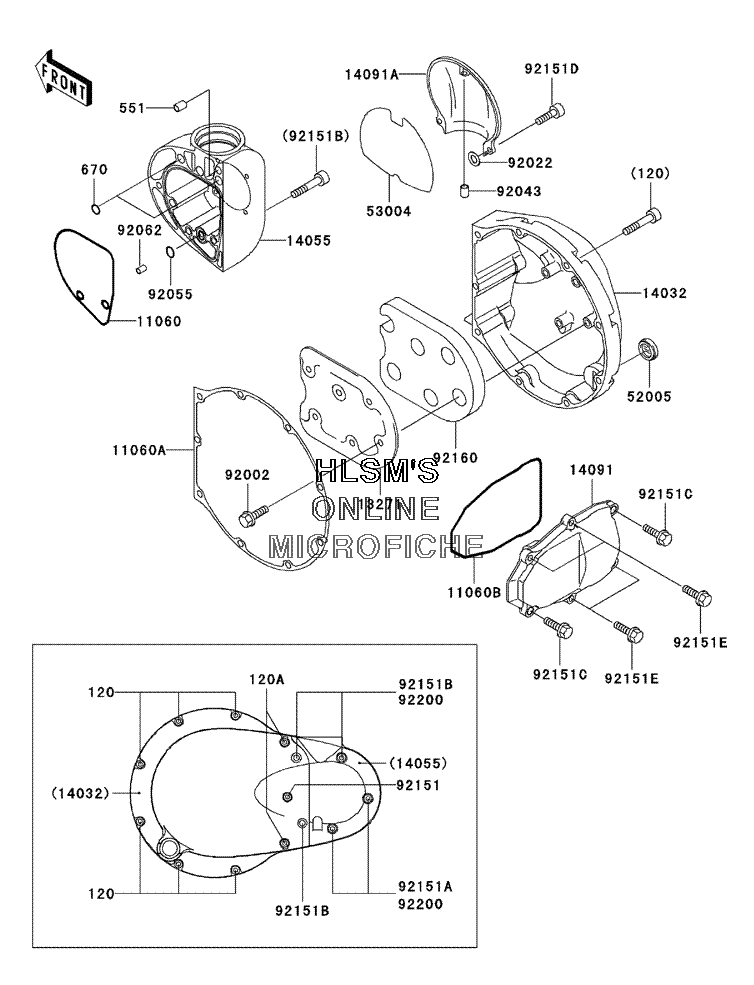

ENGINE COVER(S) - RIGHT для Kawasaki W650 - 2001 года выпуска`
-
№АртикулНазвание
-
120120R0625 BOLT, SOCKETBOLT, SOCKET
-
120A120R0650 BOLT, SOCKETBOLT, SOCKET
-
551551A0820 PIN, DOWELPIN, DOWEL
-
670670D1507 O-RING, 7MMO-RING, 7MM
-
1106011060-1890 GASKET, GEAR CASEGASKET, GEAR CASE
-
11060A11060-1891 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11060B11060-1896 GASKET, KICK COVERGASKET, KICK COVER
-
1327113271-1215 PLATE, SOUND ARRESTERPLATE, SOUND ARRESTER
-
1403214032-1495 COVER, CLUTCHCOVER, CLUTCH
-
1405514055-1141 CASE, GEARCASE, GEAR
-
1409114091-1080 COVER, KICKCOVER, KICK
-
14091A14091-1287 COVER, BEVEL GEARCOVER, BEVEL GEAR
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5300453004-1124 MAT, BEVEL COVERMAT, BEVEL COVER
-
9200292002-1541 BOLT, 6X10BOLT, 6X10
-
9202292022-1023 WASHER, 5.2X10X1.5WASHER, 5.2X10X1.5
-
9204392043-1606 PIN, 6X12PIN, 6X12
-
9205592055-1594 O-RING, 12.3X1.9O-RING, 12.3X1.9
-
9206292062-1079 NOZZLE, 6X8 (BLACK)NOZZLE, 6X8 (BLACK)
-
9215192151-1495 BOLT, SOCKET, 6X70BOLT, SOCKET, 6X70
-
92151A92151-1496 BOLT, SOCKET, 6X55BOLT, SOCKET, 6X55
-
92151B92151-1497 BOLT, SOCKET, 6X60BOLT, SOCKET, 6X60
-
92151C92151-1499 BOLTBOLT
-
92151D92151-1581 BOLT, SOCKET, 5X14BOLT, SOCKET, 5X14
-
92151E92151-1642 BOLT, 6X22BOLT, 6X22
-
9216092160-1996 DAMPER, SOUND ARRESTERDAMPER, SOUND ARRESTER
-
9220092200-1461 WASHER, 6.8X11.5X1.0WASHER, 6.8X11.5X1.0
