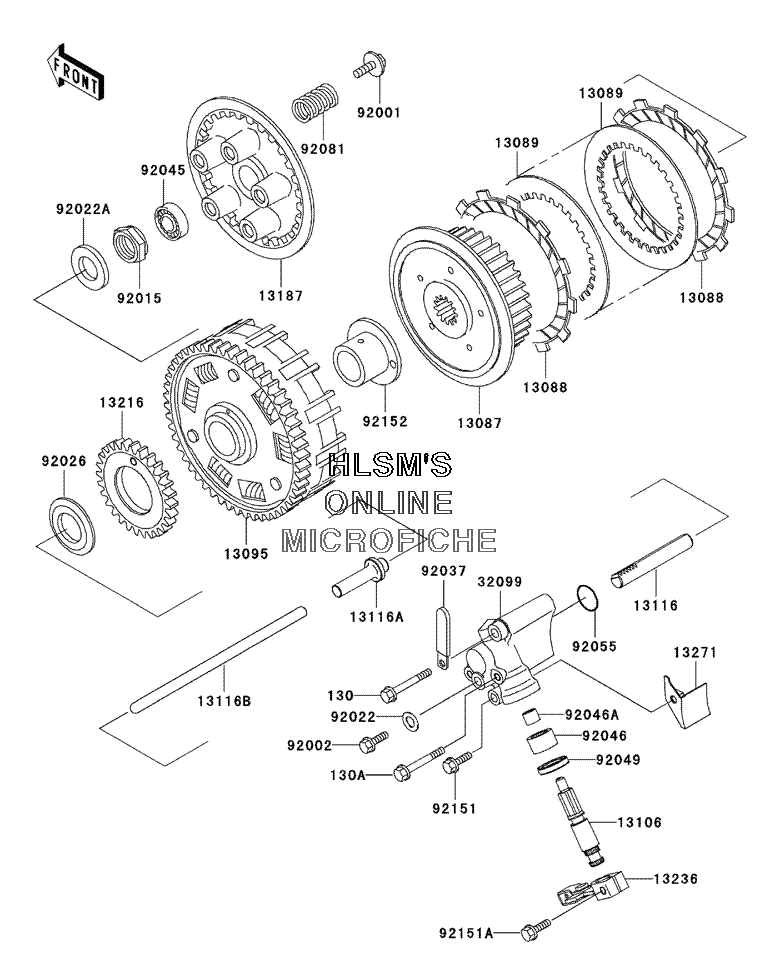

CLUTCH для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
130130Z0670 BOLT, FLANGEDBOLT, FLANGED
-
130A130Z0680 BOLT, FLANGEDBOLT, FLANGED
-
1308713087-042 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1133 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-027 PLATE, CLUTCHPLATE, CLUTCH
-
1309513095-1378 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310613106-1068 SHAFT, CLUTCH RELEASESHAFT, CLUTCH RELEASE
-
1311613116-1163 ROD, PUSH, RELEASE POSITIONROD, PUSH, RELEASE POSITION
-
13116A13116-1164 ROD, PUSH, CLUTCH POSITIONROD, PUSH, CLUTCH POSITION
-
13116B13116-1165 ROD, PUSH, MIDDLE POSITIONROD, PUSH, MIDDLE POSITION
-
1318713187-1006 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
1321613216-1177 GEAR, COMP, OIL PUMPGEAR, COMP, OIL PUMP
-
1323613236-1331 LEVER, COMP, CLUTCH RELEASELEVER, COMP, CLUTCH RELEASE
-
1327113271-1179 PLATEPLATE
-
3209932099-1204 CASE, CLUTCH RELEASECASE, CLUTCH RELEASE
-
9200192001-1066 BOLT, FLANGED, 6X18BOLT, FLANGED, 6X18
-
9200292002-1357 BOLTBOLT
-
9201592015-1555 NUT, 20MMNUT, 20MM
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-1868 WASHERWASHER
-
9202692026-1242 SPACERSPACER
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
9204592045-1235 BEARING, BALL, 6001C3ML01BEARING, BALL, 6001C3ML01
-
9204692046-037 BEARING, NEEDLE, 7E, HK1412BEARING, NEEDLE, 7E, HK1412
-
92046A92046-1142 BEARING, NEEDLE, HK0709BEARING, NEEDLE, HK0709
-
9204992049-1520 SEAL, OIL, TC14245SEAL, OIL, TC14245
-
9205592055-1598 O-RING, 16.8X1.9O-RING, 16.8X1.9
-
9208192081-1864 SPRING, CLUTCHSPRING, CLUTCH
-
9215192151-1131 BOLT, 6X40BOLT, 6X40
-
92151A92151-1226 BOLT, 6X20BOLT, 6X20
-
9215292152-1146 COLLAR, CLUTCH GEARCOLLAR, CLUTCH GEAR
