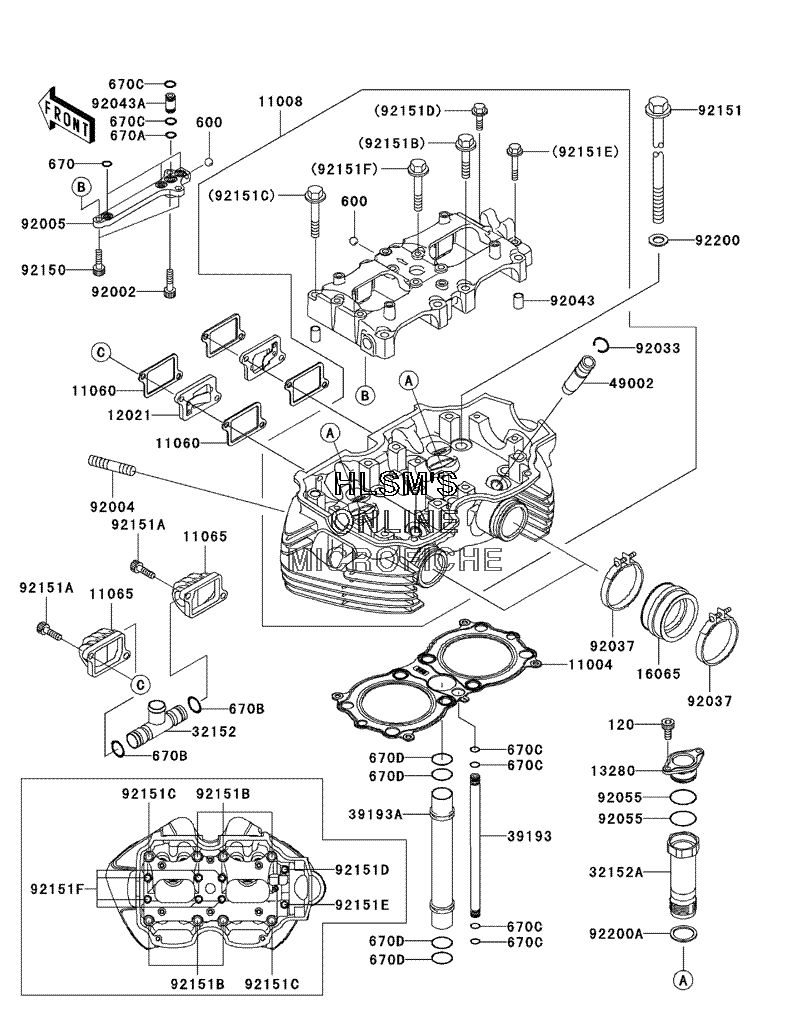

CYLINDER HEAD для Kawasaki W650 - 2001 года выпуска
-
№АртикулНазвание
-
120120R0514 BOLT, SOCKETBOLT, SOCKET
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
670670D1509 O-RING, 9MMO-RING, 9MM
-
670A670D1510 O-RING, 10MMO-RING, 10MM
-
670B670D2014 O-RING, 14MMO-RING, 14MM
-
670C670E1507 O-RINGO-RING
-
670D670E2022 O-RING, 22MMO-RING, 22MM
-
1100411004-1341 GASKET, HEADGASKET, HEAD
-
1100811008-1362 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1106011060-1886 GASKET, AIR SUCTION VALVEGASKET, AIR SUCTION VALVE
-
1106511065-1121 CAP, AIR SUCTION VALVECAP, AIR SUCTION VALVE
-
1202112021-1115 VALVE, ASSY., REEDVALVE, ASSY., REED
-
1328013280-1118 HOLDERHOLDER
-
1606516065-1361 HOLDER, CARBURETORHOLDER, CARBURETOR
-
3215232152-1900 PIPE, AIR SUCTION VALVEPIPE, AIR SUCTION VALVE
-
32152A32152-1901 PIPE, PLUG HOLEPIPE, PLUG HOLE
-
3919339193-1045 PIPE, OILPIPE, OIL
-
39193A39193-1046 PIPE, OILPIPE, OIL
-
4900249002-1116 GUIDE, VALVEGUIDE, VALVE
-
9200292002-1696 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
9200492004-1121 STUD, 8X30STUD, 8X30
-
9200592005-1361 FITTINGFITTING
-
9203392033-1247 RING, SNAPRING, SNAP
-
9203792037-1523 CLAMPCLAMP
-
9204392043-1037 PIN, DOWEL, 10X14PIN, DOWEL, 10X14
-
92043A92043-1587 PINPIN
-
9205592055-1592 O-RING, 24.7X1.9O-RING, 24.7X1.9
-
9215092150-1880 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
9215192151-1452 BOLT, 11X195BOLT, 11X195
-
92151A92151-1455 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
92151B92151-1621 BOLT, 8X40BOLT, 8X40
-
92151C92151-1622 BOLT, 8X50BOLT, 8X50
-
92151D92151-1623 BOLT, 6X22BOLT, 6X22
-
92151E92151-1624 BOLT, 6X35BOLT, 6X35
-
92151F92151-1625 BOLT, 6X50BOLT, 6X50
-
9220092200-1128 WASHER, 11.5X20.5X1.6WASHER, 11.5X20.5X1.6
-
92200A92200-1484 WASHER, 22X26X1.2WASHER, 22X26X1.2
