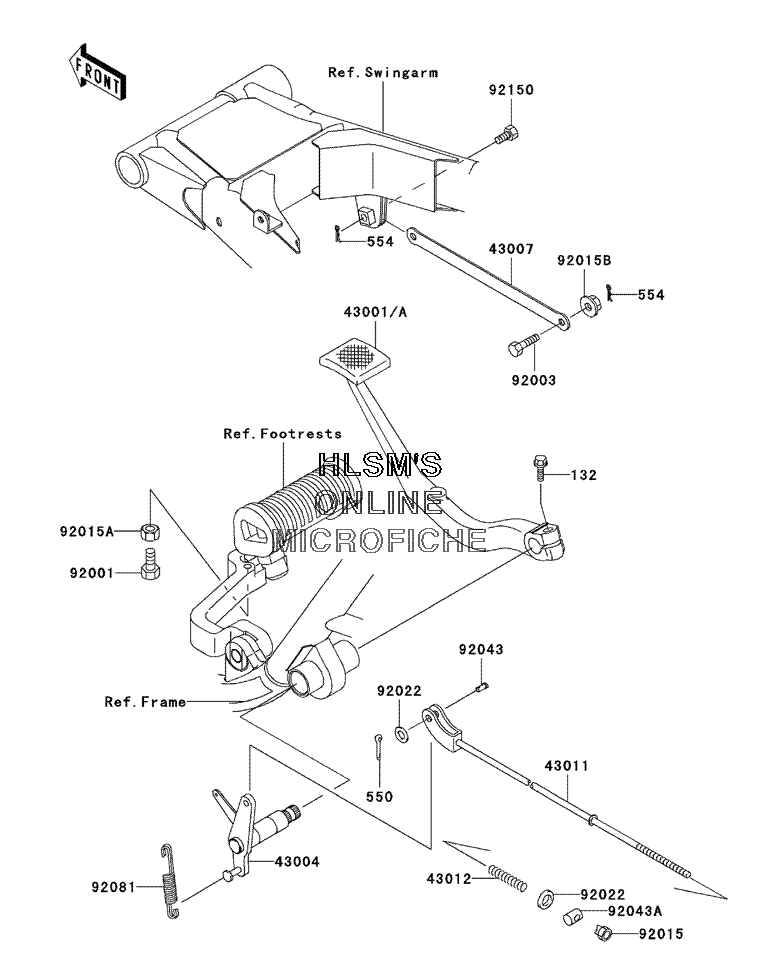

BRAKE PEDAL W/ TORQUE LINK для Kawasaki W650 - 2001 года выпуска`
-
№АртикулНазвание
-
132132E0825 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
554554A0800 PIN, SNAP, 8MMPIN, SNAP, 8MM
-
43001A43001-1436 LEVER, BRAKE, PEDALLEVER, BRAKE, PEDAL
-
4300443004-1137 SHAFT, BRAKESHAFT, BRAKE
-
4300743007-1190 ROD, TORQUEROD, TORQUE
-
4301143011-1180 ROD, BRAKEROD, BRAKE
-
4301243012-001 SPRING, BRAKE RODSPRING, BRAKE ROD
-
9200192001-1090 BOLT, 6X25BOLT, 6X25
-
9200392003-034 BOLT, 10X35BOLT, 10X35
-
9201592015-042 NUT, BRAKE RODNUT, BRAKE ROD
-
92015A92015-1391 NUT, 6MMNUT, 6MM
-
92015B92015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202292022-1588 WASHER, 6.3X10.2X1.6WASHER, 6.3X10.2X1.6
-
9204392043-064 PIN, 6X17PIN, 6X17
-
92043A92043-065 PIN, BRAKE RODPIN, BRAKE ROD
-
9208192081-1669 SPRING, SIDE STANDSPRING, SIDE STAND
-
9215092150-1873 BOLT, 10X25BOLT, 10X25
