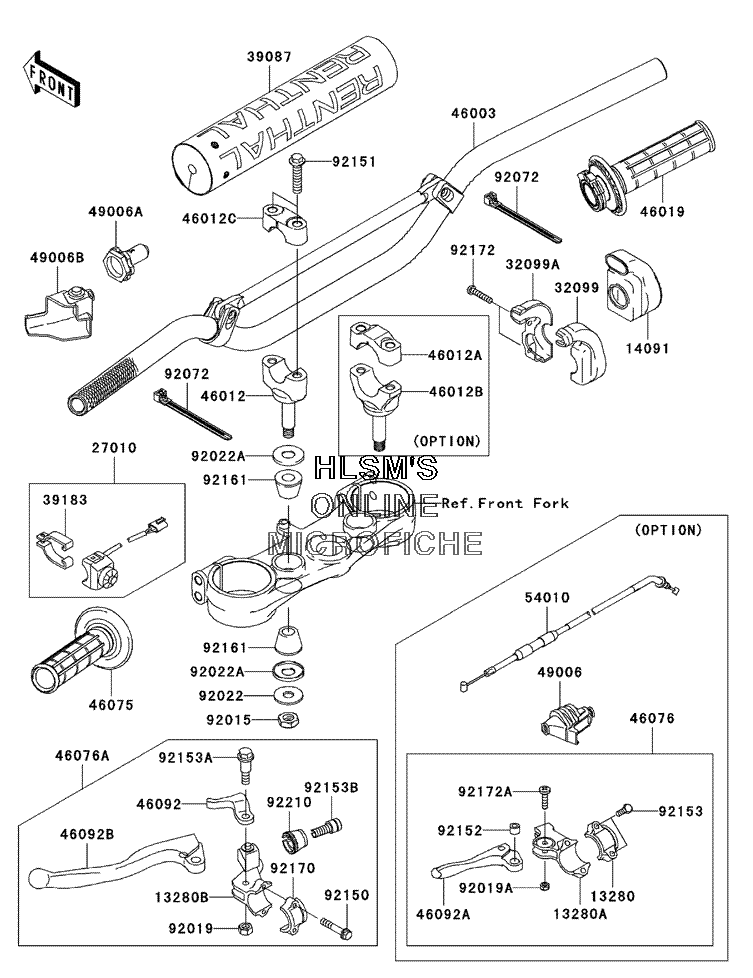

HANDLEBAR для Kawasaki KX 250F - 2006 года выпуска
-
№АртикулНазвание
-
1328013280-0055 HOLDERHOLDER
-
13280A13280-0056 HOLDERHOLDER
-
13280B13280-0097 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
1409114091-0182 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
2701027010-0047 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
3209932099-0002 CASE, THROTTLE, LOWERCASE, THROTTLE, LOWER
-
32099A32099-0003 CASE, THROTTLE, FRONTCASE, THROTTLE, FRONT
-
3908739087-0003 PAD-HANDLEPAD-HANDLE
-
3918339183-1059 BAND-ASSY., ENGINE STOP SWITCHBAND-ASSY., ENGINE STOP SWITCH
-
4600346003-0077 HANDLEHANDLE
-
4601246012-0013-D3 HOLDER-HANDLE, LOWER, M.M.GOLDHOLDER-HANDLE, LOWER, M.M.GOLD
-
46012A46012-0020-D3 HOLDER-HANDLE, UPPER, GOLD, FAT BARHOLDER-HANDLE, UPPER, GOLD, FAT BAR
-
46012B46012-0021-D3 HOLDER-HANDLE, LOWER, GOLD, FAT BARHOLDER-HANDLE, LOWER, GOLD, FAT BAR
-
46012C46012-0023-D3 HOLDER-HANDLE, UPPER, M.M.GOLDHOLDER-HANDLE, UPPER, M.M.GOLD
-
4601946019-0011 GRIP-ASSY., THROTTLEGRIP-ASSY., THROTTLE
-
4607546075-0038 GRIP, LEFTGRIP, LEFT
-
4607646076-0009 LEVER-ASSY.-GRIP, MANUAL DECOMPLEVER-ASSY.-GRIP, MANUAL DECOMP
-
46076A46076-0016 LEVER-ASSY.-GRIP, CLUTCH & STARTERLEVER-ASSY.-GRIP, CLUTCH & STARTER
-
4609246092-0001 LEVER-GRIP, STARTERLEVER-GRIP, STARTER
-
46092A46092-0004 LEVER-GRIPLEVER-GRIP
-
46092B46092-0007 LEVER-GRIP, CLUTCHLEVER-GRIP, CLUTCH
-
4900649006-0011 BOOTBOOT
-
49006A49006-0027 BOOT, CLUTCH CABLEBOOT, CLUTCH CABLE
-
49006B49006-0033 BOOT, CLUTCH LEVERBOOT, CLUTCH LEVER
-
5401054010-0019 CABLE, MANUAL DECOMPCABLE, MANUAL DECOMP
-
9201592015-1962 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
92019A92019-014 NUT, LOCK, 5MMNUT, LOCK, 5MM
-
9202292022-1088 WASHER, 10.2X28X2WASHER, 10.2X28X2
-
92022A92022-1737 WASHERWASHER
-
9207292072-0055 BAND, L=100BAND, L=100
-
9215092150-1474 BOLT, LEVER HOLDERBOLT, LEVER HOLDER
-
9215192151-1537 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
9215292152-0135 COLLARCOLLAR
-
9215392153-0617 BOLT, 5X16BOLT, 5X16
-
92153A92153-0772 BOLT, 6MMBOLT, 6MM
-
92153B92153-0773 BOLT, BOLT ADJUSTINGBOLT, BOLT ADJUSTING
-
9216192161-0113 DAMPER, HANDLE HOLDERDAMPER, HANDLE HOLDER
-
9217092170-1226 CLAMP, LEVER HOLDERCLAMP, LEVER HOLDER
-
9217292172-0069 SCREW, 5X20SCREW, 5X20
-
92172A92172-0125 SCREW, 5X20 (OPT.)SCREW, 5X20 (OPT.)
-
9221092210-0167 NUT, BOLT WIRE ADJUSTINGNUT, BOLT WIRE ADJUSTING
