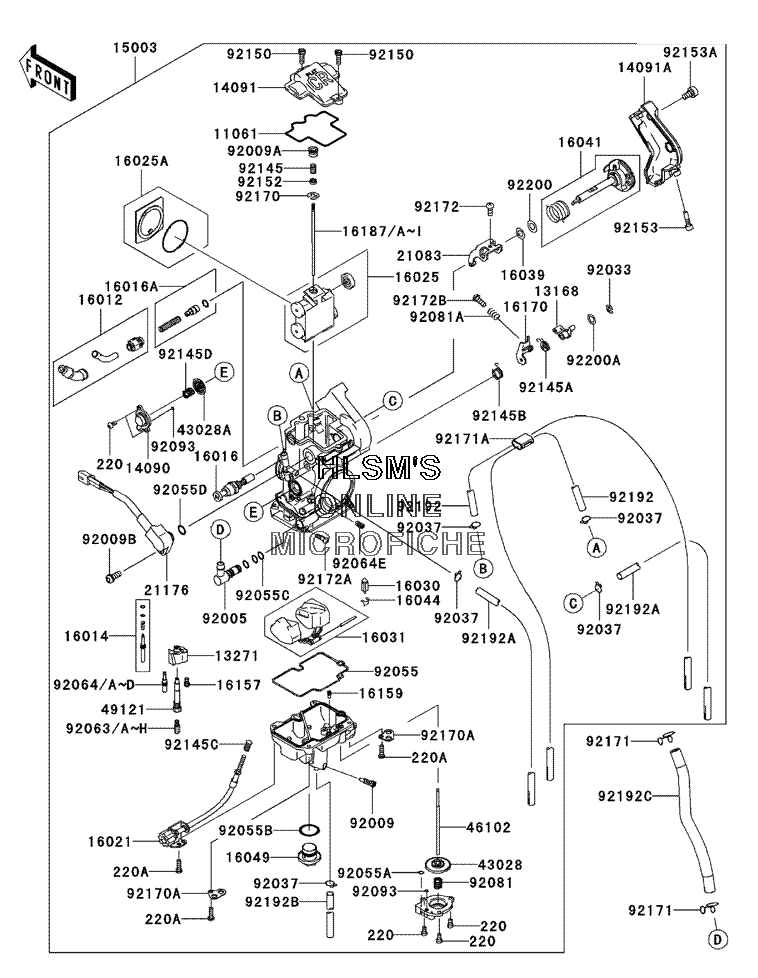

CARBURETOR для Kawasaki KX 250F - 2006 года выпуска
-
№АртикулНазвание
-
1106111061-0077 GASKETGASKET
-
1316813168-0051 LEVERLEVER
-
1327113271-0241 PLATEPLATE
-
1409014090-1959 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1409114091-0208 COVER, TOPCOVER, TOP
-
14091A14091-0209 COVERCOVER
-
1500315003-0080 CARBURETOR-ASSY., FCR-MX37CARBURETOR-ASSY., FCR-MX37
-
1601216012-0002 CAP-STARTER PLUNGERCAP-STARTER PLUNGER
-
1601416014-0004 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-0009 PLUNGERPLUNGER
-
16016A16016-0017 PLUNGERPLUNGER
-
1602116021-0005 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1602516025-0008 VALVE-THROTTLEVALVE-THROTTLE
-
16025A16025-0009 VALVE-THROTTLEVALVE-THROTTLE
-
1603016030-1057 VALVE-FLOATVALVE-FLOAT
-
1603116031-1100 FLOATFLOAT
-
1603916039-0230 WASHERWASHER
-
1604116041-0002 SHAFT-CARBURETORSHAFT-CARBURETOR
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1604916049-1051 COVER-MAIN JETCOVER-MAIN JET
-
1615716157-0001 JET-STARTER, #68JET-STARTER, #68
-
1615916159-1057 JET-POWER, #60JET-POWER, #60
-
1617016170-0003 LINK-ASSY.LINK-ASSY.
-
1618716187-0191 NEEDLE-JET, NCYS (OPT.)NEEDLE-JET, NCYS (OPT.)
-
16187A16187-0192 NEEDLE-JET, NCYT (OPT.)NEEDLE-JET, NCYT (OPT.)
-
16187B16187-0193 NEEDLE-JET, NCYUNEEDLE-JET, NCYU
-
16187C16187-0194 NEEDLE-JET, NCYV (OPT.)NEEDLE-JET, NCYV (OPT.)
-
16187D16187-0195 NEEDLE-JET, NCYW (OPT.)NEEDLE-JET, NCYW (OPT.)
-
16187E16187-0215 NEEDLE-JET, NCVS (OPT.)NEEDLE-JET, NCVS (OPT.)
-
16187F16187-0216 NEEDLE-JET, NCVT (OPT.)NEEDLE-JET, NCVT (OPT.)
-
16187G16187-0217 NEEDLE-JET, NCVU (OPT.)NEEDLE-JET, NCVU (OPT.)
-
16187H16187-0218 NEEDLE-JET, NCVV (OPT.)NEEDLE-JET, NCVV (OPT.)
-
16187I16187-0219 NEEDLE-JET, NCVW (OPT.)NEEDLE-JET, NCVW (OPT.)
-
2108321083-0004 ARMARM
-
2117621176-0016 SENSOR, THROTTLESENSOR, THROTTLE
-
4302843028-0001 DIAPHRAGMDIAPHRAGM
-
43028A43028-1085 DIAPHRAGM, AIR CUT VALVEDIAPHRAGM, AIR CUT VALVE
-
4610246102-0033 RODROD
-
4912149121-0001 NOZZLE-MAINNOZZLE-MAIN
-
9200592005-0016 FITTINGFITTING
-
9200992009-1551 SCREW, DRAIN, 6X0.75SCREW, DRAIN, 6X0.75
-
92009A92009-1876 SCREWSCREW
-
92009B92009-1981 SCREW, THROTTLE SENSORSCREW, THROTTLE SENSOR
-
9203392033-0018 RING-SNAPRING-SNAP
-
9203792037-1396 CLAMP, TUBECLAMP, TUBE
-
9205592055-0066 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
92055A92055-1004 RING-ORING-O
-
92055B92055-1167 RING-O, MAIN JET COVERRING-O, MAIN JET COVER
-
92055C92055-1223 RING-ORING-O
-
92055D92055-1671 RING-ORING-O
-
9206392063-1372 JET-MAIN, #170 (OPT.)JET-MAIN, #170 (OPT.)
-
92063A92063-1373 JET-MAIN, #172 (OPT.)JET-MAIN, #172 (OPT.)
-
92063B92063-1374 JET-MAIN, #175 (OPT.)JET-MAIN, #175 (OPT.)
-
92063C92063-1375 JET-MAIN, #178 (OPT.)JET-MAIN, #178 (OPT.)
-
92063D92063-1376 JET-MAIN, #180JET-MAIN, #180
-
92063E92063-1377 JET-MAIN, #182 (OPT.)JET-MAIN, #182 (OPT.)
-
92063F92063-1378 JET-MAIN, #185 (OPT.)JET-MAIN, #185 (OPT.)
-
92063G92063-1379 JET-MAIN, #188 (OPT.)JET-MAIN, #188 (OPT.)
-
92063H92063-1380 JET-MAIN, #190 (OPT.)JET-MAIN, #190 (OPT.)
-
9206492064-1138 JET-PILOT, #35 (OPT.)JET-PILOT, #35 (OPT.)
-
92064A92064-1139 JET-PILOT, #38 (OPT.)JET-PILOT, #38 (OPT.)
-
92064B92064-1140 JET-PILOT, #40JET-PILOT, #40
-
92064C92064-1141 JET-PILOT, #42 (OPT.)JET-PILOT, #42 (OPT.)
-
220220D0408 SCREW-PAN-CROS, 4X8SCREW-PAN-CROS, 4X8
-
220A220D0414 SCREW-PAN-CROS, 4X14SCREW-PAN-CROS, 4X14
-
92064D92064-1142 JET-PILOT, #45 (OPT.)JET-PILOT, #45 (OPT.)
-
92064E92064-1160 JET-PILOT, #100JET-PILOT, #100
-
9208192081-1092 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
92081A92081-1620 SPRINGSPRING
-
9209392093-1046 SEAL, "U"RINGSEAL, "U"RING
-
9214592145-0164 SPRINGSPRING
-
92145A92145-0166 SPRINGSPRING
-
92145B92145-0167 SPRINGSPRING
-
92145C92145-0384 SPRINGSPRING
-
92145D92145-1450 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
9215092150-1426 BOLT, SOCKET, 4X12BOLT, SOCKET, 4X12
-
9215292152-0141 COLLARCOLLAR
-
9215392153-0638 BOLTBOLT
-
92153A92153-0639 BOLTBOLT
-
9217092170-1204 CLAMP, JET NEEDLECLAMP, JET NEEDLE
-
92170A92170-1582 CLAMPCLAMP
-
9217192171-0149 CLAMPCLAMP
-
92171A92171-0246 CLAMPCLAMP
-
9217292172-0127 SCREWSCREW
-
92172A92172-0128 SCREWSCREW
-
92172B92172-0129 SCREWSCREW
-
9219292192-0083 TUBETUBE
-
92192A92192-0084 TUBETUBE
-
92192B92192-0085 TUBETUBE
-
92192C92192-0311 TUBE, FUEL L=257TUBE, FUEL L=257
-
9220092200-0107 WASHERWASHER
-
92200A92200-1434 WASHER, LINK ARM, STAINLESSWASHER, LINK ARM, STAINLESS
