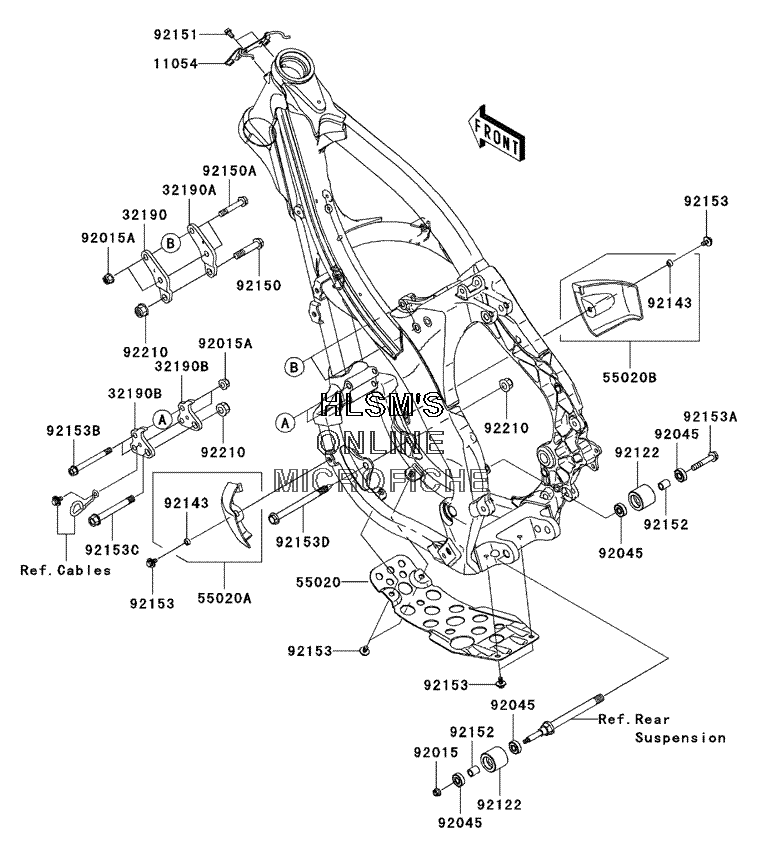

FRAME FITTING(S) для Kawasaki KX 250F - 2006 года выпуска

  • №
    Артикул
    Название
  • 11054
    11054-0241 BRACKET, IGNITER
    BRACKET, IGNITER
  • 32190
    32190-0172 BRACKET-ENGINE, UPPER, LEFT
    BRACKET-ENGINE, UPPER, LEFT
  • 32190A
    32190-0173 BRACKET-ENGINE, UPPER, RIGHT
    BRACKET-ENGINE, UPPER, RIGHT
  • 32190B
    32190-0231 BRACKET-ENGINE, FRONT
    BRACKET-ENGINE, FRONT
  • 55020
    55020-0174 GUARD, ENGINE, LOWER
    GUARD, ENGINE, LOWER
  • 55020A
    55020-0175 GUARD, ENGINE, FRONT, LEFT
    GUARD, ENGINE, FRONT, LEFT
  • 55020B
    55020-0176 GUARD, ENGINE, FRONT, RIGHT
    GUARD, ENGINE, FRONT, RIGHT
  • 92015
    92015-1339 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92015A
    92015-1432 NUT, 8MM
    NUT, 8MM
  • 92045
    92045-1009 BEARING-BALL, 608LLU/2A
    BEARING-BALL, 608LLU/2A
  • 92122
    92122-0007 ROLLER, CHAIN GUIDE
    ROLLER, CHAIN GUIDE
  • 92143
    92143-1307 COLLAR
    COLLAR
  • 92150
    92150-1170 BOLT, FLANGED, 10X49
    BOLT, FLANGED, 10X49
  • 92150A
    92150-1214 BOLT, FLANGED, 8X50
    BOLT, FLANGED, 8X50
  • 92151
    92151-1233 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 92152
    92152-0211 COLLAR, 8.5X12.5X15.5
    COLLAR, 8.5X12.5X15.5
  • 92153
    92153-0503 BOLT, 6X12
    BOLT, 6X12
  • 92153A
    92153-0751 BOLT, FLANGED, 8X45
    BOLT, FLANGED, 8X45
  • 92153B
    92153-0994 BOLT, FLANGED, 8X82
    BOLT, FLANGED, 8X82
  • 92153C
    92153-0997 BOLT, FLANGED, 10X84
    BOLT, FLANGED, 10X84
  • 92153D
    92153-1359 BOLT, FLANGED, 10X120
    BOLT, FLANGED, 10X120
  • 92210
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
