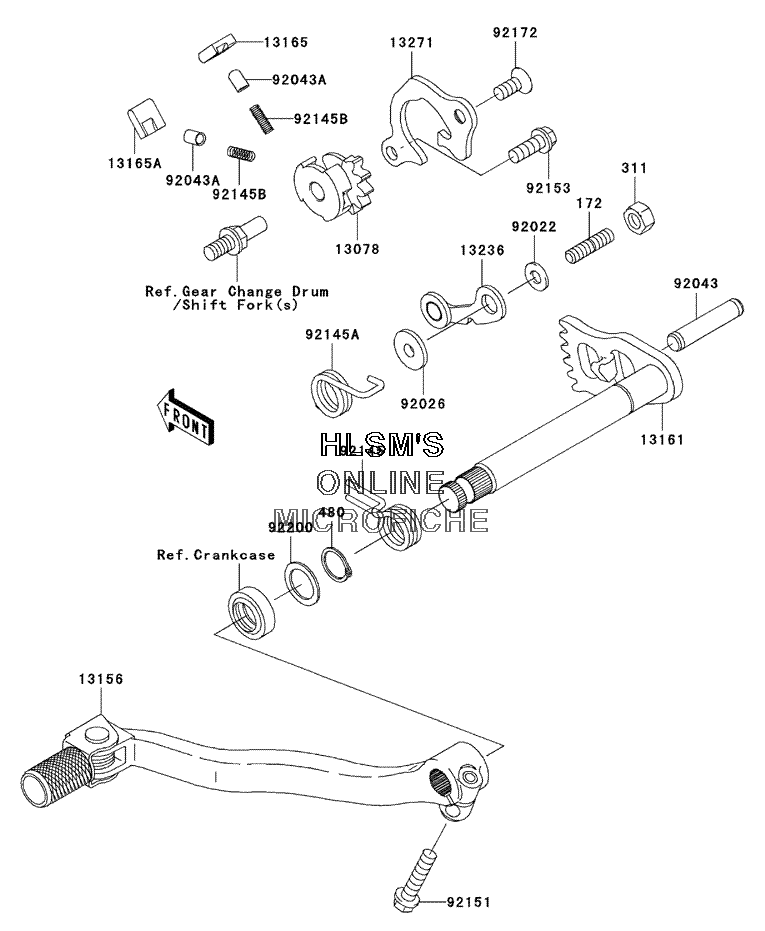

GEAR CHANGE MECHANISM для Kawasaki KX 250F - 2006 года выпуска`
-
№АртикулНазвание
-
172172G0612 BOLT-STUD, 6X12BOLT-STUD, 6X12
-
311311G0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
480480J1400 CIRCLIP-TYPE-C, 14MMCIRCLIP-TYPE-C, 14MM
-
1307813078-0003 RATCHETRATCHET
-
1315613156-0050 LEVER-CHANGE, PEDALLEVER-CHANGE, PEDAL
-
1316113161-0016 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316513165-0009 PAWLPAWL
-
13165A13165-0010 PAWLPAWL
-
1323613236-0041 LEVER-COMP, POSITIONLEVER-COMP, POSITION
-
1327113271-0681 PLATE, PAWL GUIDEPLATE, PAWL GUIDE
-
9202292022-1827 WASHER, 6X12.8X1.2WASHER, 6X12.8X1.2
-
9202692026-1217 SPACERSPACER
-
9204392043-0017 PIN, 8X39PIN, 8X39
-
92043A92043-1676 PIN, PLUNGERPIN, PLUNGER
-
9214592145-0052 SPRING, RETURNSPRING, RETURN
-
92145A92145-0154 SPRING, POSITIONSPRING, POSITION
-
92145B92145-1490 SPRINGSPRING
-
9215192151-1930 BOLT, FLANGED-SMALL, 6X25BOLT, FLANGED-SMALL, 6X25
-
9215392153-0825 BOLT, 6X16BOLT, 6X16
-
9217292172-0110 SCREW, 6X14SCREW, 6X14
-
9220092200-0029 WASHER, 14.2X20X1WASHER, 14.2X20X1
