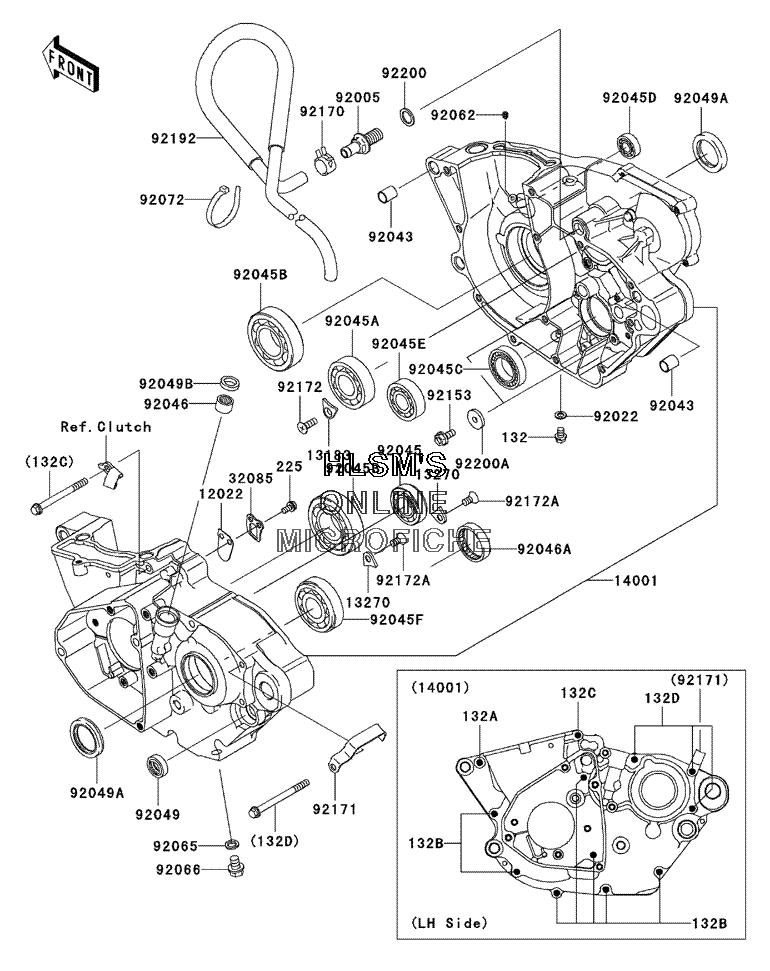

CRANKCASE для Kawasaki KX 250F - 2006 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0608 BOLT-FLANGED-SMALL, 6X8
    BOLT-FLANGED-SMALL, 6X8
  • 132A
    132G0640 BOLT-FLANGED-SMALL, 6X40
    BOLT-FLANGED-SMALL, 6X40
  • 132B
    132G0660 BOLT-FLANGED-SMALL, 6X60
    BOLT-FLANGED-SMALL, 6X60
  • 132C
    132G0665 BOLT-FLANGED-SMALL, 6X65
    BOLT-FLANGED-SMALL, 6X65
  • 132D
    132G0670 BOLT-FLANGED-SMALL, 6X70
    BOLT-FLANGED-SMALL, 6X70
  • 225
    225D0510 SCREW-PAN-WSP-CROS, 5X10
    SCREW-PAN-WSP-CROS, 5X10
  • 12022
    12022-0006 VALVE-REED
    VALVE-REED
  • 13183
    13183-1182 PLATE
    PLATE
  • 13270
    13270-1638 PLATE
    PLATE
  • 14001
    14001-0070 SET-CRANKCASE
    SET-CRANKCASE
  • 32085
    32085-0011 STOPPER, VALVE-REED
    STOPPER, VALVE-REED
  • 92005
    92005-0014 FITTING, BREATHER
    FITTING, BREATHER
  • 92022
    92022-304 WASHER, 6.2X11X1
    WASHER, 6.2X11X1
  • 92043
    92043-4009 PIN, 10.1X12X14
    PIN, 10.1X12X14
  • 92045
    92045-0013 BEARING-BALL, 3TM-SX0391ZC3
    BEARING-BALL, 3TM-SX0391ZC3
  • 92045A
    92045-0051 BEARING-BALL, 22X50X14
    BEARING-BALL, 22X50X14
  • 92045B
    92045-0052 BEARING-BALL, CRANKSHAFT MAIN
    BEARING-BALL, CRANKSHAFT MAIN
  • 92045C
    92045-1058 BEARING-BALL, 6905Z
    BEARING-BALL, 6905Z
  • 92045D
    92045-1123 BEARING-BALL, #628
    BEARING-BALL, #628
  • 92045E
    92045-1291 BEARING-BALL, TMB203
    BEARING-BALL, TMB203
  • 92045F
    92045-1335 BEARING-BALL, SX04A81C3
    BEARING-BALL, SX04A81C3
  • 92046
    92046-1010 BEARING-NEEDLE, HK1210
    BEARING-NEEDLE, HK1210
  • 92046A
    92046-1221 BEARING-NEEDLE, 7E-HKS33X38X8
    BEARING-NEEDLE, 7E-HKS33X38X8
  • 92049
    92049-0015 SEAL-OIL, SD2 14 22 6-1 NS
    SEAL-OIL, SD2 14 22 6-1 NS
  • 92049A
    92049-0030 SEAL-OIL, TC 30 40 7
    SEAL-OIL, TC 30 40 7
  • 92049B
    92049-1262 SEAL-OIL, AG0353-F0
    SEAL-OIL, AG0353-F0
  • 92062
    92062-0004 NOZZLE
    NOZZLE
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 92066
    92066-1437 PLUG, DRAIN
    PLUG, DRAIN
  • 92072
    92072-3874 BAND
    BAND
  • 92153
    92153-0878 BOLT, 6X14
    BOLT, 6X14
  • 92170
    92170-1938 CLAMP
    CLAMP
  • 92171
    92171-0579 CLAMP
    CLAMP
  • 92172
    92172-0087 SCREW, 6X14
    SCREW, 6X14
  • 92172A
    92172-0109 SCREW, 6X8
    SCREW, 6X8
  • 92192
    92192-0102 TUBE, BREATHER
    TUBE, BREATHER
  • 92200
    92200-0087 WASHER, 12.5X18X1.6
    WASHER, 12.5X18X1.6
  • 92200A
    92200-0120 WASHER, 6X20X3.2
    WASHER, 6X20X3.2
