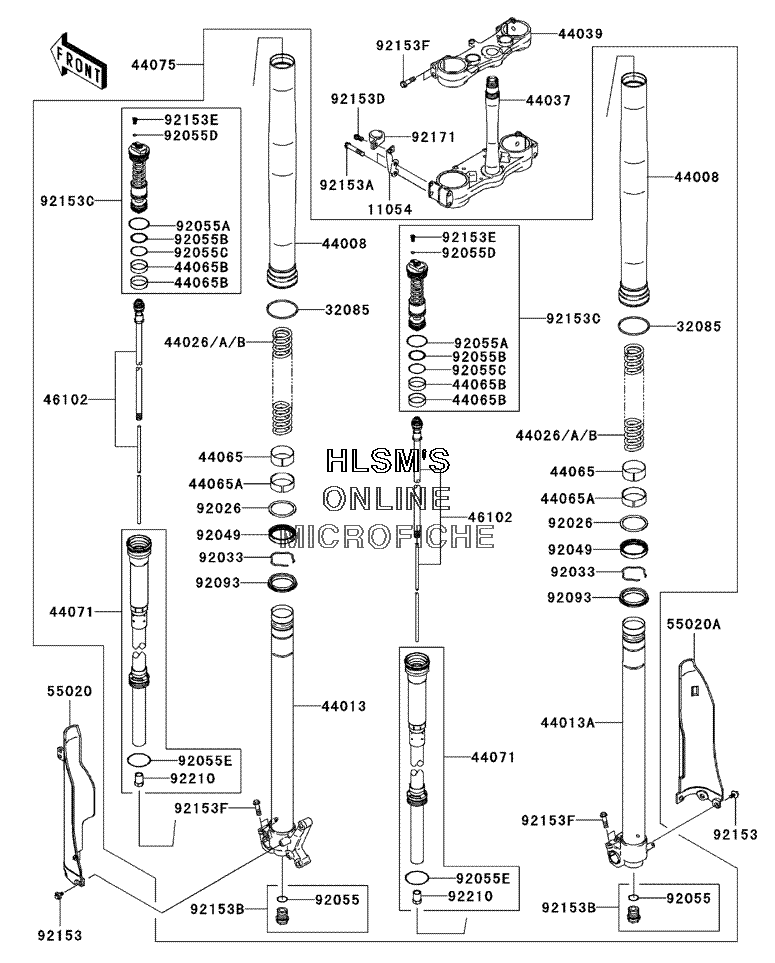

FRONT FORK для Kawasaki KX 250F - 2006 года выпуска
-
№АртикулНазвание
-
1105411054-0111 BRACKETBRACKET
-
3208532085-0073 STOPPER, RINGSTOPPER, RING
-
4400844008-0016-828 PIPE-FORK OUTER, GOLDPIPE-FORK OUTER, GOLD
-
4401344013-0040 PIPE-FORK INNER, LEFTPIPE-FORK INNER, LEFT
-
44013A44013-0041 PIPE-FORK INNER, RIGHTPIPE-FORK INNER, RIGHT
-
4402644026-0075 SPRING-FRONT FORK, K=4.1N/MM (OPT.)SPRING-FRONT FORK, K=4.1N/MM (OPT.)
-
44026A44026-0076 SPRING-FRONT FORK, K=4.3N/MMSPRING-FRONT FORK, K=4.3N/MM
-
44026B44026-0077 SPRING-FRONT FORK, K=4.5N/MM (OPT.)SPRING-FRONT FORK, K=4.5N/MM (OPT.)
-
4403744037-0034-D3 HOLDER-FORK UNDER, M.M.GOLDHOLDER-FORK UNDER, M.M.GOLD
-
4403944039-0036-D3 HOLDER-FORK UPPER, M.M.GOLDHOLDER-FORK UPPER, M.M.GOLD
-
4406544065-0016 BUSHING-FRONT FORK, SLIDEBUSHING-FRONT FORK, SLIDE
-
44065A44065-0017 BUSHING-FRONT FORK, GUIDEBUSHING-FRONT FORK, GUIDE
-
44065B44065-0018 BUSHING-FRONT FORK, SLIDEBUSHING-FRONT FORK, SLIDE
-
4407144071-0323 DAMPER-ASSY., FORKDAMPER-ASSY., FORK
-
4407544075-5009 DAMPER-SET-FORKDAMPER-SET-FORK
-
4610246102-0075 ROD, PUSHROD, PUSH
-
5502055020-0172-RZ GUARD, FORK, LEFT, WHITEGUARD, FORK, LEFT, WHITE
-
55020A55020-0173-RZ GUARD, FORK, RIGHT, WHITEGUARD, FORK, RIGHT, WHITE
-
9202692026-0089 SPACER, SEALSPACER, SEAL
-
9203392033-0039 RING-SNAPRING-SNAP
-
9204992049-0074 SEAL-OILSEAL-OIL
-
9205592055-0090 RING-O, CENTER BOLTRING-O, CENTER BOLT
-
92055A92055-0091 RING-ORING-O
-
92055B92055-0092 RING-ORING-O
-
92055C92055-0093 RING-ORING-O
-
92055D92055-0094 RING-ORING-O
-
92055E92055-0095 RING-ORING-O
-
9209392093-0059 SEAL, DUSTSEAL, DUST
-
9215392153-0936 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
92153A92153-0990 BOLT, FLANGED, 8X45BOLT, FLANGED, 8X45
-
92153B92153-1395 BOLT, CENTERBOLT, CENTER
-
92153C92153-1396-10J BOLT, FORK, GOLDBOLT, FORK, GOLD
-
92153D92153-1397 BOLT, FLANGEDBOLT, FLANGED
-
92153E92153-1398 BOLT, PLUGBOLT, PLUG
-
92153F92153-1399 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
9217192171-0506 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9221092210-0268 NUT, LOCKNUT, LOCK
