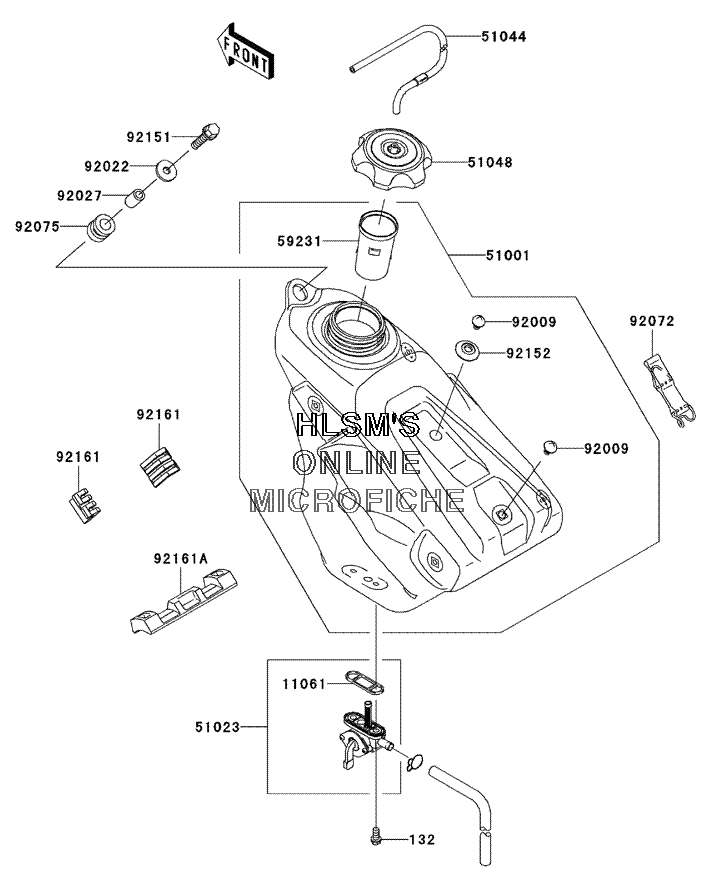

FUEL TANK для Kawasaki KX 250F - 2006 года выпуска
-
№АртикулНазвание
-
132132L0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
1106111061-0181 GASKET, FUEL TAPGASKET, FUEL TAP
-
5100151001-0110-6Z TANK-COMP-FUEL, F.BLACKTANK-COMP-FUEL, F.BLACK
-
5102351023-0016 TAP-ASSY., FUELTAP-ASSY., FUEL
-
5104451044-0023 TUBE-ASSY., TANK CAPTUBE-ASSY., TANK CAP
-
5104851048-0009 CAP-ASSY.-TANK, FUELCAP-ASSY.-TANK, FUEL
-
5923159231-0019 FILLERFILLER
-
9200992009-1971 SCREW, 6MMSCREW, 6MM
-
9202292022-1690 WASHER, 6.5X24X2WASHER, 6.5X24X2
-
9202792027-1966 COLLAR, 6.8X10X14COLLAR, 6.8X10X14
-
9207292072-0045 BAND, FUEL TANKBAND, FUEL TANK
-
9207592075-1787 DAMPERDAMPER
-
9215192151-1930 BOLT, FLANGED-SMALL, 6X25BOLT, FLANGED-SMALL, 6X25
-
9215292152-1346 COLLARCOLLAR
-
9216192161-0254 DAMPER, FUEL TANK, SIDEDAMPER, FUEL TANK, SIDE
-
92161A92161-0255 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
