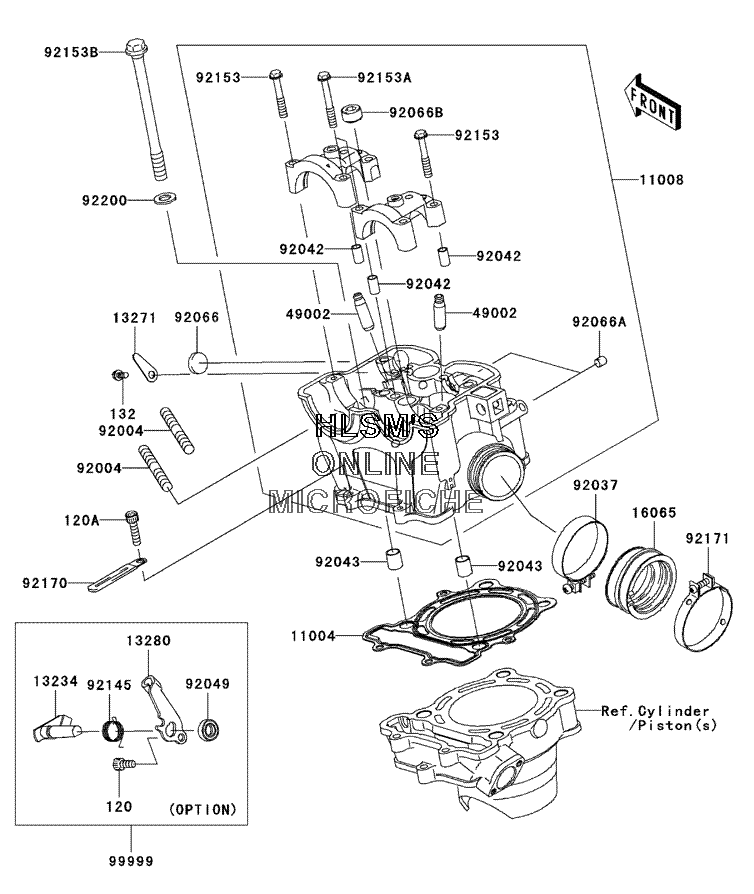

CYLINDER HEAD для Kawasaki KX 250F - 2006 года выпуска`
-
№АртикулНазвание
-
120120P0612 BOLT-SOCKET, 6X12BOLT-SOCKET, 6X12
-
120A120P0625 BOLT-SOCKET, 6X25BOLT-SOCKET, 6X25
-
132132L0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
1100411004-0003 GASKET-HEADGASKET-HEAD
-
1100811008-0057 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1323413234-0009 SHAFT-COMP, DECOMPSHAFT-COMP, DECOMP
-
1327113271-0675 PLATEPLATE
-
1328013280-0038 HOLDER, DECOMPHOLDER, DECOMP
-
1606516065-0028 HOLDER-CARBURETORHOLDER-CARBURETOR
-
4900249002-0003 GUIDE-VALVEGUIDE-VALVE
-
9200492004-1249 STUD, 8X22STUD, 8X22
-
9203792037-1523 CLAMPCLAMP
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9204992049-1196 SEAL-OILSEAL-OIL
-
9206692066-0024 PLUG, 4X18PLUG, 4X18
-
92066A92066-1012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
92066B92066-3777 PLUG, 10X16.6PLUG, 10X16.6
-
9214592145-0048 SPRINGSPRING
-
9215392153-0338 BOLT, 6X38BOLT, 6X38
-
92153A92153-0339 BOLT, 6X45BOLT, 6X45
-
92153B92153-0341 BOLT, 10X122BOLT, 10X122
-
9217092170-1514 CLAMPCLAMP
-
9217192171-0314 CLAMPCLAMP
-
9220092200-1339 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
-
9999999999-0023 KIT., MANUAL DECOMPKIT., MANUAL DECOMP
