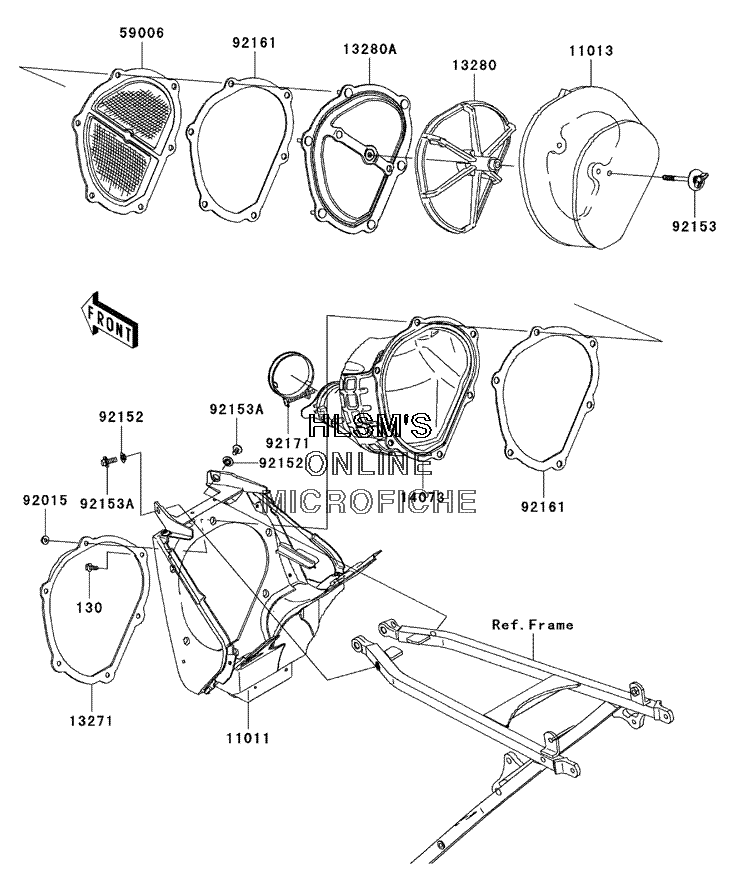

AIR CLEANER для Kawasaki KX 250F - 2006 года выпуска
-
№АртикулНазвание
-
130130G0512 BOLT-FLANGED, 5X12BOLT-FLANGED, 5X12
-
1101111011-0055-6Z CASE-AIR FILTER, F.BLACKCASE-AIR FILTER, F.BLACK
-
1101311013-0011 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1327113271-0730 PLATE, DUCT FITTINGPLATE, DUCT FITTING
-
1328013280-0108 HOLDER, ELEMENTHOLDER, ELEMENT
-
13280A13280-0170 HOLDERHOLDER
-
1407314073-0086 DUCT, FUNNELDUCT, FUNNEL
-
5900659006-0009 ARRESTER-FLAMEARRESTER-FLAME
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9215292152-0275 COLLARCOLLAR
-
9215392153-0623 BOLT, 6X75BOLT, 6X75
-
92153A92153-0863 BOLT, 6X16BOLT, 6X16
-
9216192161-0213 DAMPERDAMPER
-
9217192171-0651 CLAMP, CARBURETOR, DUCTCLAMP, CARBURETOR, DUCT
