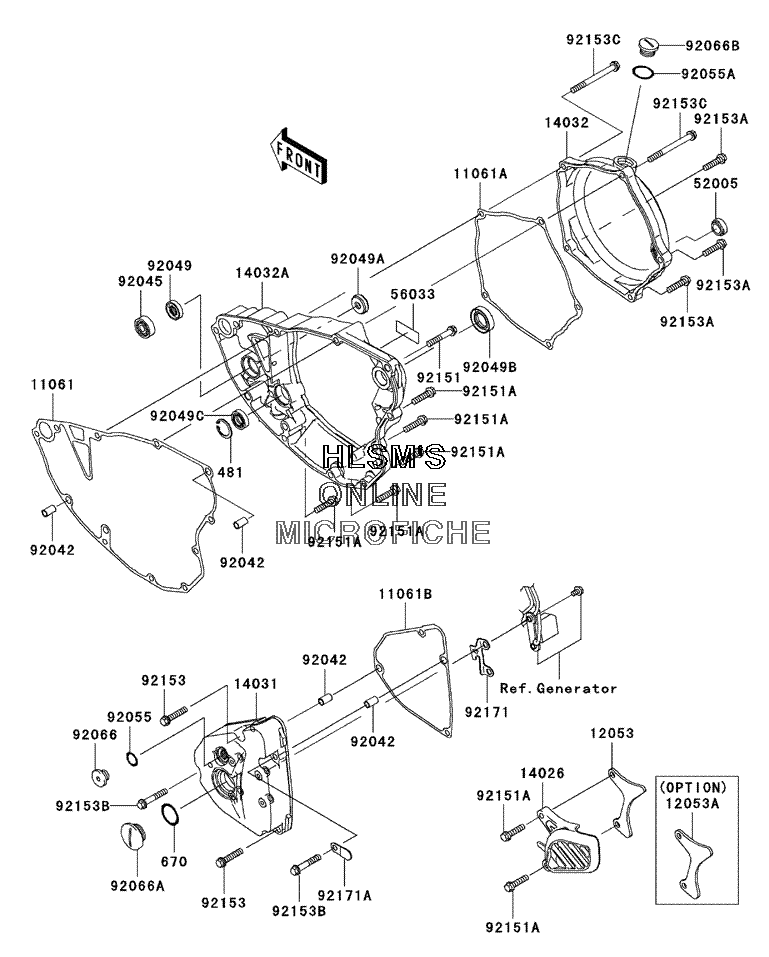

ENGINE COVER для Kawasaki KX 250F - 2006 года выпуска
-
№АртикулНазвание
-
481481J2200 CIRCLIPCIRCLIP
-
670670B2022 O RING, 22MMO RING, 22MM
-
1106111061-0030 GASKET, CLUTCH COVER, INNERGASKET, CLUTCH COVER, INNER
-
11061A11061-0031 GASKET, CLUTCH COVER, OUTERGASKET, CLUTCH COVER, OUTER
-
11061B11061-0032 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1205312053-0011 GUIDE-CHAIN (13 TEETH)GUIDE-CHAIN (13 TEETH)
-
12053A12053-0018 GUIDE-CHAIN (12 TEETH) (OPT.)GUIDE-CHAIN (12 TEETH) (OPT.)
-
1402614026-0026 COVER-CHAINCOVER-CHAIN
-
1403114031-0037 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0049 COVER-CLUTCH, OUTERCOVER-CLUTCH, OUTER
-
14032A14032-0057 COVER-CLUTCH, INNERCOVER-CLUTCH, INNER
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5603356033-0049 LABEL-MANUAL, OIL CAPACITYLABEL-MANUAL, OIL CAPACITY
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204592045-1123 BEARING-BALL, #628BEARING-BALL, #628
-
9204992049-0060 SEAL-OIL, SD 8 22 5 ZSSEAL-OIL, SD 8 22 5 ZS
-
92049A92049-0061 SEAL-OILSEAL-OIL
-
92049B92049-013 SEAL-OIL, SB18307SEAL-OIL, SB18307
-
92049C92049-1519 SEAL-OIL, TC13225.5SEAL-OIL, TC13225.5
-
9205592055-1011 RING-O, 13.0X1.9RING-O, 13.0X1.9
-
92055A92055-1146 RING-O, 20X2RING-O, 20X2
-
9206692066-0039 PLUG, 12X9.1PLUG, 12X9.1
-
92066A92066-0059 PLUG, OILPLUG, OIL
-
92066B92066-0060 PLUG, OILPLUG, OIL
-
9215192151-1135 BOLT, 6X35BOLT, 6X35
-
92151A92151-1930 BOLT, FLANGED-SMALL, 6X25BOLT, FLANGED-SMALL, 6X25
-
9215392153-0601 BOLT, 6X30BOLT, 6X30
-
92153A92153-0604 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92153B92153-0826 BOLT, 6X35BOLT, 6X35
-
92153C92153-0905 BOLT, 6X65BOLT, 6X65
-
9217192171-0195 CLAMP, HARNESSCLAMP, HARNESS
-
92171A92171-0295 CLAMPCLAMP
