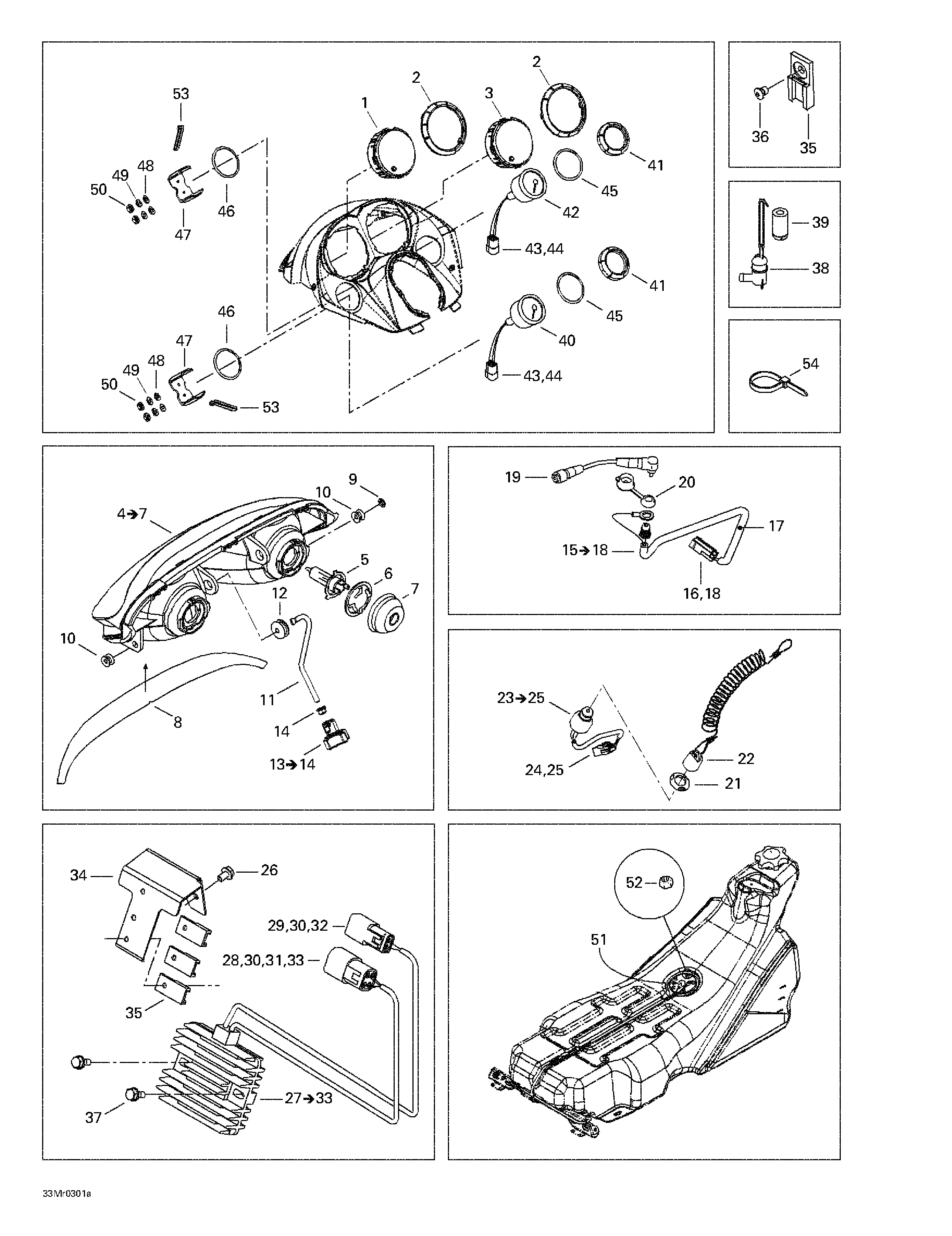

10- Electrical System 1 для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1515175942 SpeedometerSpeedometer
-
2515175651 Gauge ringGauge ring
-
3515175943 TachometerTachometer
-
4515175909 Halogen headlamp. Includes 4 - 7.Halogen headlamp. Includes 4 - 7.
-
5410504401 Halogen bulb (60/55 W, 12 V)Halogen bulb (60/55 W, 12 V)
-
6515175910 Bulb holderBulb holder
-
7515175911 CoverCover
-
8516001328 Headlamp decalHeadlamp decal
-
9732610072 Push nutPush nut
-
10515175760 Headlamp bushingHeadlamp bushing
-
11515175521 Adjuster rodAdjuster rod
-
12415100800 GrommetGrommet
-
13515175975 Handle. Includes 13 - 14.Handle. Includes 13 - 14.
-
14233261414 Elastic flanged nut M6Elastic flanged nut M6
-
15515175799 Visor plug harness. Includes 15 - 18. (JAMES EDITION) MX Z 600 H.O.Visor plug harness. Includes 15 - 18. (JAMES EDITION) MX Z 600 H.O.
-
16515175232 Male terminal. MX Z 600 H.O..Male terminal. MX Z 600 H.O..
-
17515175332 Tubing. MX Z 600 H.O..Tubing. MX Z 600 H.O..
-
18515175654 Male terminal housing (2 Circuits). MX Z 600 H.O..Male terminal housing (2 Circuits). MX Z 600 H.O..
-
19515175851 Extension (JAMES EDITION). MX Z 600 H.O..Extension (JAMES EDITION). MX Z 600 H.O..
-
20572103300 Cap (JAMES EDITION). MX Z 600 H.O..Cap (JAMES EDITION). MX Z 600 H.O..
-
21278000508 NutNut
-
22515166900 DESS capDESS cap
-
23515175797 DESS switch. Includes 23 - 25.DESS switch. Includes 23 - 25.
-
24515175232 Male terminalMale terminal
-
25515175494 Male terminal housing (3 circuits)Male terminal housing (3 circuits)
-
26210261080 Hex. forming screw M6 x 10Hex. forming screw M6 x 10
-
27515175968 Voltage regulator. Includes 27 - 33.Voltage regulator. Includes 27 - 33.
-
28278001477 Male terminal housing (4 circuits)Male terminal housing (4 circuits)
-
29278001674 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
30515175568 Male TerminalMale Terminal
-
31278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
32278001672 Male lock (2 circuits)Male lock (2 circuits)
-
33293000052 PlugPlug
-
34515175916 Housing supportHousing support
-
35515175917 ClipClip
-
36390402200 Pop rivet 3/16''Pop rivet 3/16''
-
37210262080 Hex. forming screw M6 x 20Hex. forming screw M6 x 20
-
38414681800 Level switchLevel switch
-
39414681900 FloatFloat
-
40515175601 Temperatue gauge. (JAMES EDITION) MX Z 600 H.O.Temperatue gauge. (JAMES EDITION) MX Z 600 H.O.
-
41515175711 Gauge ring (JAMES EDITION). MX Z 600 H.O..Gauge ring (JAMES EDITION). MX Z 600 H.O..
-
42515175529 Fuel gauge. (JAMES EDITION) MX Z 600 H.O.Fuel gauge. (JAMES EDITION) MX Z 600 H.O.
-
43409210000 Male terminal (JAMES EDITION). MX Z 600 H.O..Male terminal (JAMES EDITION). MX Z 600 H.O..
-
44409204200 Male terminal housing (3 circuits). (JAMES EDITION) MX Z 600 H.O.Male terminal housing (3 circuits). (JAMES EDITION) MX Z 600 H.O.
-
45414807200 Packing (JAMES EDITION). MX Z 600 H.O..Packing (JAMES EDITION). MX Z 600 H.O..
-
46517258600 Washer (JAMES EDITION). MX Z 600 H.O..Washer (JAMES EDITION). MX Z 600 H.O..
-
47414806600 Case holder (JAMES EDITION). MX Z 600 H.O..Case holder (JAMES EDITION). MX Z 600 H.O..
-
48391301700 Flat washer (JAMES EDITION). MX Z 600 H.O..Flat washer (JAMES EDITION). MX Z 600 H.O..
-
49414833700 Lock washer (JAMES EDITION). MX Z 600 H.O..Lock washer (JAMES EDITION). MX Z 600 H.O..
-
50414833600 Nut (JAMES EDITION). MX Z 600 H.O..Nut (JAMES EDITION). MX Z 600 H.O..
-
51515175522 Fuel sensor. (JAMES EDITION) MX Z 600 H.O.Fuel sensor. (JAMES EDITION) MX Z 600 H.O.
-
52232551414 Elastic stop nut M5. (JAMES EDITION) MX Z 600 H.O.Elastic stop nut M5. (JAMES EDITION) MX Z 600 H.O.
-
53414115200 Tie-rap 180 mm (JAMES EDITION). MX Z 600 H.O..Tie-rap 180 mm (JAMES EDITION). MX Z 600 H.O..
-
54293750002 Locking Tie 142 mmLocking Tie 142 mm
-
293750009 Tie-rap 160 mmTie-rap 160 mm
-
414115200 Tie-rap 180 mmTie-rap 180 mm
-
293750008 Tie-rap 350 mmTie-rap 350 mm
