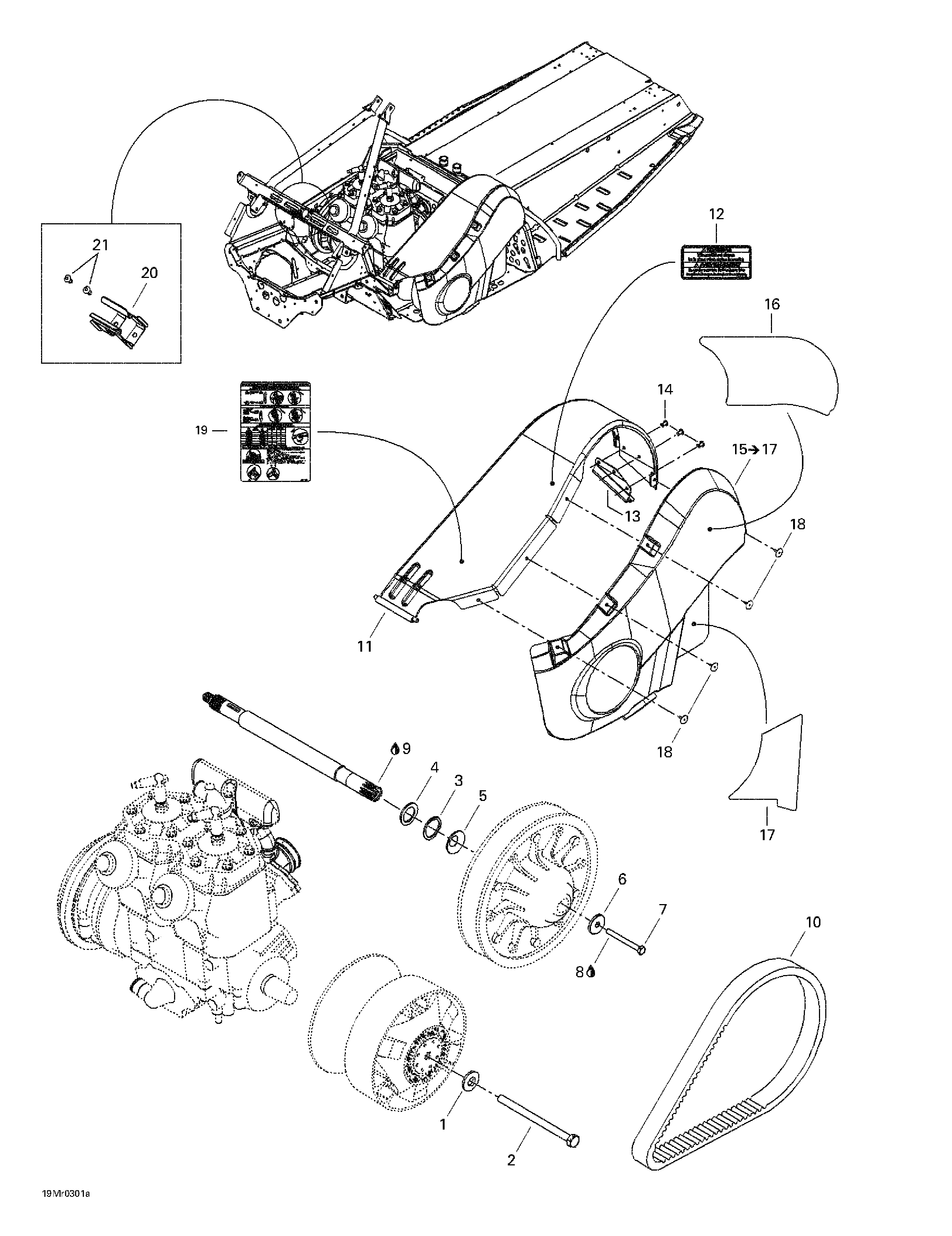

05- Pulleys System And Belt Guard для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1250200006 Conical spring washerConical spring washer
-
2417120000 Drive pulley boltDrive pulley bolt
-
3417300231 SpacerSpacer
-
417300054 SpacerSpacer
-
504112000 ShimShim
-
4417300231 Spacer (RER 800). MX Z 800.Spacer (RER 800). MX Z 800.
-
504149100 Spacer (STD 600 H.O.). MX Z 600 H.O..Spacer (STD 600 H.O.). MX Z 600 H.O..
-
5417300055 Protector (RER 800). MX Z 800.Protector (RER 800). MX Z 800.
-
6517302322 Strength washerStrength washer
-
7207087544 Hex. screw M8 x 75Hex. screw M8 x 75
-
8293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
9293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
10417300166 Drive belt. MX Z 800.Drive belt. MX Z 800.
-
417300197 Drive belt. MX Z 600 H.O..Drive belt. MX Z 600 H.O..
-
11417300213 Belt guardBelt guard
-
12516001190 Security labelSecurity label
-
13417300216 Belt guard bracketBelt guard bracket
-
14390402200 Pop rivet 3/16''Pop rivet 3/16''
-
15417300218 Side protector ass'y. Includes 15 - 17.Side protector ass'y. Includes 15 - 17.
-
16417300220 FoamFoam
-
17417300221 FoamFoam
-
18293150103 Pop rivet 3/16''Pop rivet 3/16''
-
19516001639 Adjustment decalAdjustment decal
-
20517281905 BracketBracket
-
21210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
