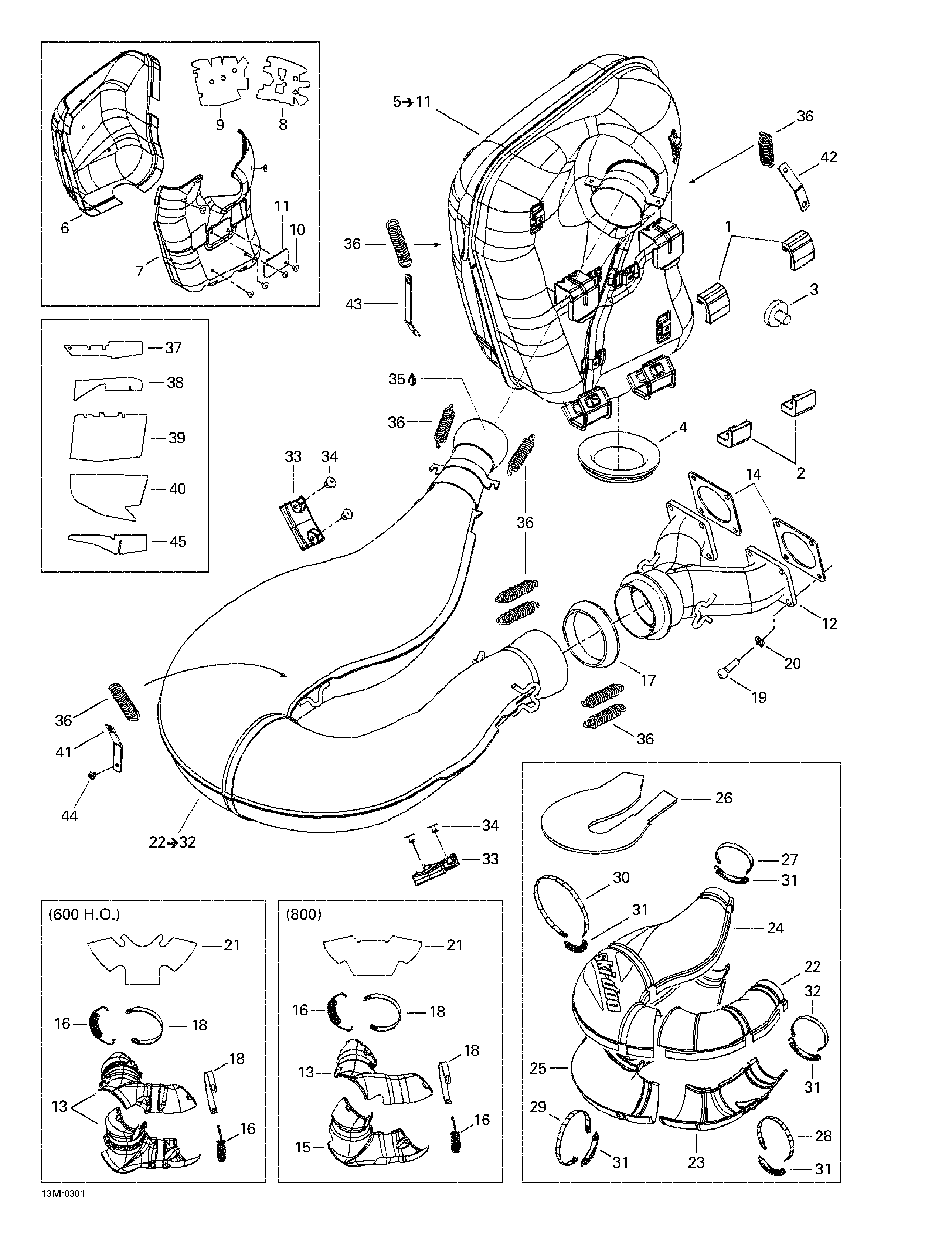

01- Exhaust System для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003

  • №
    Артикул
    Название
  • 1
    514053372 Upper stopper
    Upper stopper
  • 2
    514053373 Lower stopper
    Lower stopper
  • 3
    514053654 Rubber bumper
    Rubber bumper
  • 4
    514053394 Exhaust grommet
    Exhaust grommet
  • 5
    514053541 Muffler ass'y. Includes 5 - 11.
    Muffler ass'y. Includes 5 - 11.
  • 6
    514053563 R.H. Heat Shield
    R.H. Heat Shield
  • 7
    514053585 L.H. Heat Shield
    L.H. Heat Shield
  • 8
    514053590 L.H. insulating wool
    L.H. insulating wool
  • 9
    514053589 R.H. insulating wool
    R.H. insulating wool
  • 10
    390910000 Pop rivet 3/16''
    Pop rivet 3/16''
  • 11
    514053429 Reinforcement
    Reinforcement
  • 12
    420673070 Exhaust manifold. MX Z 600 H.O..
    Exhaust manifold. MX Z 600 H.O..
  • 420973713 Exhaust manifold. MX Z 800.
    Exhaust manifold. MX Z 800.
  • 13
    514053592 Upper enveloppe. MX Z 800.
    Upper enveloppe. MX Z 800.
  • 514053593 Upper enveloppe. MX Z 600 H.O..
    Upper enveloppe. MX Z 600 H.O..
  • 14
    420850552 Gasket. MX Z 600 H.O..
    Gasket. MX Z 600 H.O..
  • 420931850 Gasket. MX Z 800.
    Gasket. MX Z 800.
  • 15
    514053594 Lower enveloppe. MX Z 800.
    Lower enveloppe. MX Z 800.
  • 16
    514053643 Spring
    Spring
  • 17
    514053487 Exhaust gasket
    Exhaust gasket
  • 18
    514053603 Retaining strap
    Retaining strap
  • 19
    205062044 Socket head screw M6 x 20
    Socket head screw M6 x 20
  • 20
    234161471 Lock washer 6 mm
    Lock washer 6 mm
  • 21
    514053284 Insulating wool. MX Z 800.
    Insulating wool. MX Z 800.
  • 514053588 Insulating wool. MX Z 600 H.O..
    Insulating wool. MX Z 600 H.O..
  • 22
    514053547 Tuned pipe ass'y. Includes 22 - 32. MX Z 800.
    Tuned pipe ass'y. Includes 22 - 32. MX Z 800.
  • 22
    514053550 Tuned pipe ass'y. Includes 22 - 32. MX Z 600 H.O..
    Tuned pipe ass'y. Includes 22 - 32. MX Z 600 H.O..
  • 22
    514053609 Upper front half enveloppe
    Upper front half enveloppe
  • 23
    514053610 Lower front haft enveloppe
    Lower front haft enveloppe
  • 24
    514053612 Upper rear half enveloppe
    Upper rear half enveloppe
  • 25
    514053613 Lower rear half enveloppe
    Lower rear half enveloppe
  • 26
    514053584 Insulating wool
    Insulating wool
  • 27
    514053437 Retaining strap
    Retaining strap
  • 28
    514053500 Retaining strap
    Retaining strap
  • 29
    514053534 Retaining strap
    Retaining strap
  • 30
    514053535 Retaining strap
    Retaining strap
  • 31
    514053643 Spring
    Spring
  • 32
    514053536 Retaining strap
    Retaining strap
  • 33
    514053352 Bumper
    Bumper
  • 34
    293150103 Pop rivet 3/16''
    Pop rivet 3/16''
  • 35
    293800090 Sealant, Loctite, 80 ml
    Sealant, Loctite, 80 ml
  • 36
    415107100 Spring
    Spring
  • 37
    514053560 Reflection sheet
    Reflection sheet
  • 38
    514053622 Reflection sheet
    Reflection sheet
  • 39
    514053561 Reflection sheet
    Reflection sheet
  • 40
    514053562 Reflection sheet
    Reflection sheet
  • 41
    514049700 Spring bracket
    Spring bracket
  • 42
    514049700 Spring bracket
    Spring bracket
  • 43
    514053393 Spring bracket
    Spring bracket
  • 44
    390402200 Pop rivet 3/16''
    Pop rivet 3/16''
  • 45
    514053673 Reflection sheet
    Reflection sheet
