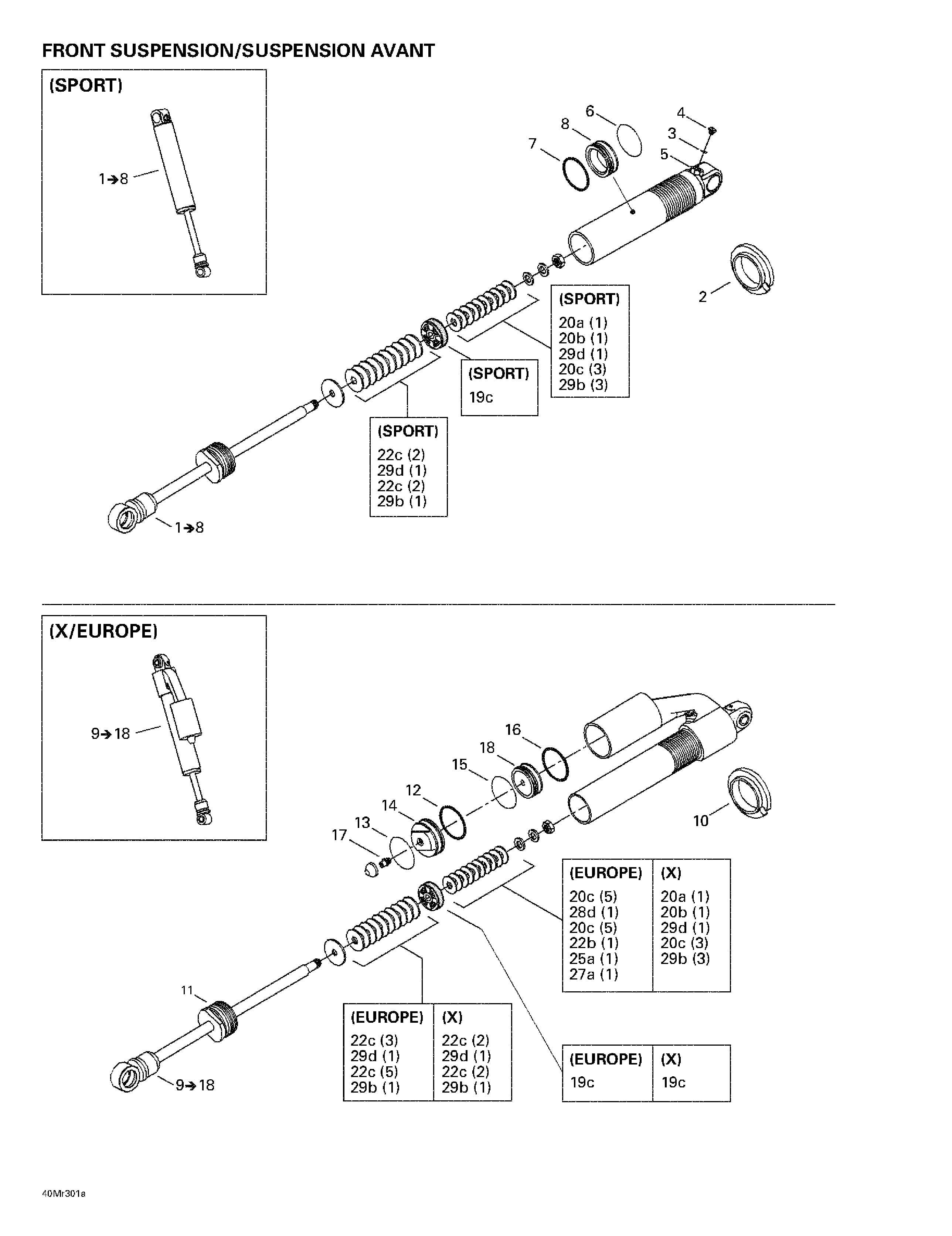

07- Front Take Apart Shocks для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1505070966 Front shock (SPORT). Includes 1 - 8.Front shock (SPORT). Includes 1 - 8.
-
2505071167 Spring plastic seatSpring plastic seat
-
3505070400 O-ringO-ring
-
4505070399 ScrewScrew
-
5505070398 Air valveAir valve
-
6503189308 Piston ringPiston ring
-
7414888312 O-ringO-ring
-
8503189309 Free pistonFree piston
-
9505070903 L.H. front shock (X). Includes 9 - 18.L.H. front shock (X). Includes 9 - 18.
-
9505070904 R.H. front shock (X). Includes 9 - 18.R.H. front shock (X). Includes 9 - 18.
-
9505070937 L.H. front shock (EUROPE). Includes 9 - 18.L.H. front shock (EUROPE). Includes 9 - 18.
-
9505070938 R.H. front shock (EUROPE). Includes 9 - 18.R.H. front shock (EUROPE). Includes 9 - 18.
-
10505071167 Spring plastic seatSpring plastic seat
-
11415093819 Sealing capSealing cap
-
12415093804 O-ringO-ring
-
13415093805 Stop ringStop ring
-
14415093808 GuideGuide
-
15415093806 Piston ringPiston ring
-
16415093807 O-ringO-ring
-
17414888314 Air valveAir valve
-
18415093812 Free pistonFree piston
-
19a414888307 Piston (2 x 0.3-6) (C36)Piston (2 x 0.3-6) (C36)
-
19b414888306 Piston (2 x 0.3-4) (C36)Piston (2 x 0.3-4) (C36)
-
19c414888305 Piston (2 x 0.3-2) (C36)Piston (2 x 0.3-2) (C36)
-
19d414888304 Piston (C36)Piston (C36)
-
20a415039100 Leaf valve O30 x 0.254 (C36)Leaf valve O30 x 0.254 (C36)
-
20b414888318 Leaf valve O30 x 0.203 (C36)Leaf valve O30 x 0.203 (C36)
-
20c414888319 Leaf valve O30 x 0.152 (C36)Leaf valve O30 x 0.152 (C36)
-
21a414888320 Leaf valve O28 x 0.203 (C36)Leaf valve O28 x 0.203 (C36)
-
21b414888321 Leaf valve O28 x 0.152 (C36)Leaf valve O28 x 0.152 (C36)
-
22a415039000 Leaf valve O26 x 0.254 (C36)Leaf valve O26 x 0.254 (C36)
-
22b414888322 Leaf valve O26 x 0.203 (C36)Leaf valve O26 x 0.203 (C36)
-
22c414888323 Leaf valve O26 x 0.152 (C36)Leaf valve O26 x 0.152 (C36)
-
23a414888324 Leaf valve O22 x 0.203 (C36)Leaf valve O22 x 0.203 (C36)
-
23b414888325 Leaf valve O22 x 0.152 (C36)Leaf valve O22 x 0.152 (C36)
-
24a414888340 Leaf valve O21 x 0.114 (C36)Leaf valve O21 x 0.114 (C36)
-
25a414888326 Leaf valve O20 x 0.203 (C36)Leaf valve O20 x 0.203 (C36)
-
25b414888327 Leaf valve O20 x 0.152 (C36)Leaf valve O20 x 0.152 (C36)
-
25c414888328 Leaf valve O20 x 0.114 (C36)Leaf valve O20 x 0.114 (C36)
-
26a414888329 Leaf valve O18 x 0.203 (C36)Leaf valve O18 x 0.203 (C36)
-
26b414888330 Leaf valve O18 x 0.152 (C36)Leaf valve O18 x 0.152 (C36)
-
27a414888331 Leaf valve O16 x 0.254 (C36)Leaf valve O16 x 0.254 (C36)
-
27b414888332 Leaf valve O16 x 0.203 (C36)Leaf valve O16 x 0.203 (C36)
-
27C414888333 Leaf valve O16 x 0.152 (C36)Leaf valve O16 x 0.152 (C36)
-
27D415083900 Leaf valve O16 x 0.114 (C36)Leaf valve O16 x 0.114 (C36)
-
28a414888334 Leaf valve O15 x 0.254 (C36)Leaf valve O15 x 0.254 (C36)
-
28b414888335 Leaf valve O15 x 0.203 (C36)Leaf valve O15 x 0.203 (C36)
-
28c414888336 Leaf valve O15 x 0.152 (C36)Leaf valve O15 x 0.152 (C36)
-
28D414888337 Leaf valve O15 x 0.114 (C36)Leaf valve O15 x 0.114 (C36)
-
29a503189538 Leaf valve O12 x 0.254 (C36)Leaf valve O12 x 0.254 (C36)
-
29b414888338 Leaf valve O12 x 0.203 (C36)Leaf valve O12 x 0.203 (C36)
-
29c414888339 Leaf valve O12 x 0.152 (C36)Leaf valve O12 x 0.152 (C36)
-
29D415038800 Leaf valve O12 x 0.114 (C36)Leaf valve O12 x 0.114 (C36)
-
30293600035 Shock oil (not shown)Shock oil (not shown)
