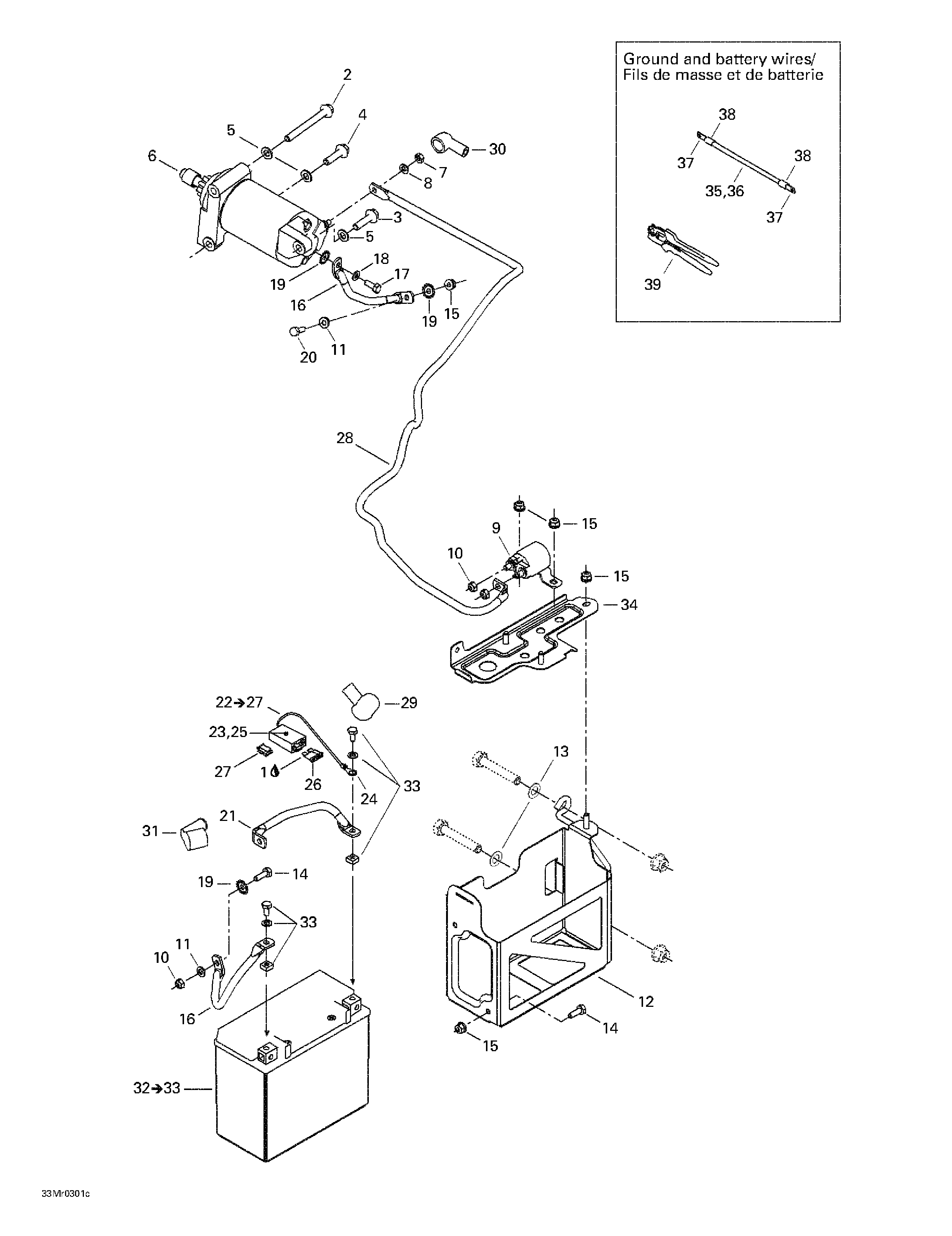

10- Battery And Starter для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2207587544 Hex. flanged screw M8 x 75. (Scotch Grip)Hex. flanged screw M8 x 75. (Scotch Grip)
-
3207583044 Hex Flanged Screw M8 x 30 (Scotch Grip). (Scotch Grip)Hex Flanged Screw M8 x 30 (Scotch Grip). (Scotch Grip)
-
4207583044 Hex Flanged Screw M8 x 30 (Scotch Grip). (Scotch Grip)Hex Flanged Screw M8 x 30 (Scotch Grip). (Scotch Grip)
-
5250200008 Flat washer 8 mmFlat washer 8 mm
-
6515175843 StarterStarter
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8234061410 Flat washer 6 mmFlat washer 6 mm
-
9710000111 Starter relayStarter relay
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11234061410 Flat washer 6 mmFlat washer 6 mm
-
12515175525 Suppport batterySuppport battery
-
13503175800 WasherWasher
-
14207161844 Hex. screw M6 x 18Hex. screw M6 x 18
-
15233261414 Elastic flanged nut M6Elastic flanged nut M6
-
17207361644 Hex. screw M6 x 16 (Scotch Grip)Hex. screw M6 x 16 (Scotch Grip)
-
18234061410 Flat washer 6 mmFlat washer 6 mm
-
19250200000 Serrated lock washer 6 mmSerrated lock washer 6 mm
-
20207162044 Hex. screw M6 x 20Hex. screw M6 x 20
-
22515175489 Fuse battery wire. Includes 22 - 27.Fuse battery wire. Includes 22 - 27.
-
23409004200 Female terminalFemale terminal
-
24278000992 Ring terminalRing terminal
-
25409004000 Fuse holderFuse holder
-
26410917200 Fuse (30 amperes)Fuse (30 amperes)
-
27409014200 ClipClip
-
29570151000 Protection capProtection cap
-
30278000020 Protection capProtection cap
-
31570064200 Protection capProtection cap
-
32410301203 Battery (18 amperes). Includes 32 - 33.Battery (18 amperes). Includes 32 - 33.
-
33295500849 Kit (screw, nut and washer)Kit (screw, nut and washer)
-
34515175735 Battery stripBattery strip
-
35278001680 Ground cable battery (no 6) (meter)Ground cable battery (no 6) (meter)
-
36278001690 Red cable battery (no 6) (meter)Red cable battery (no 6) (meter)
-
37278001682 Flat terminal (small hole)Flat terminal (small hole)
-
278001683 Terminal 45 Deg. (small hole)Terminal 45 Deg. (small hole)
-
278001684 Terminal 90 Deg. (small hole)Terminal 90 Deg. (small hole)
-
278001685 Flat terminal (big hole)Flat terminal (big hole)
-
278001686 Terminal 45 Deg. (big hole)Terminal 45 Deg. (big hole)
-
278001687 Terminal 90 Deg. (big hole)Terminal 90 Deg. (big hole)
-
278001688 Flat terminalFlat terminal
-
278001776 Terminal 30 Deg. (2 holes)Terminal 30 Deg. (2 holes)
-
38278001692 Heat shrinkHeat shrink
-
39529035730 Crimp plierCrimp plier
