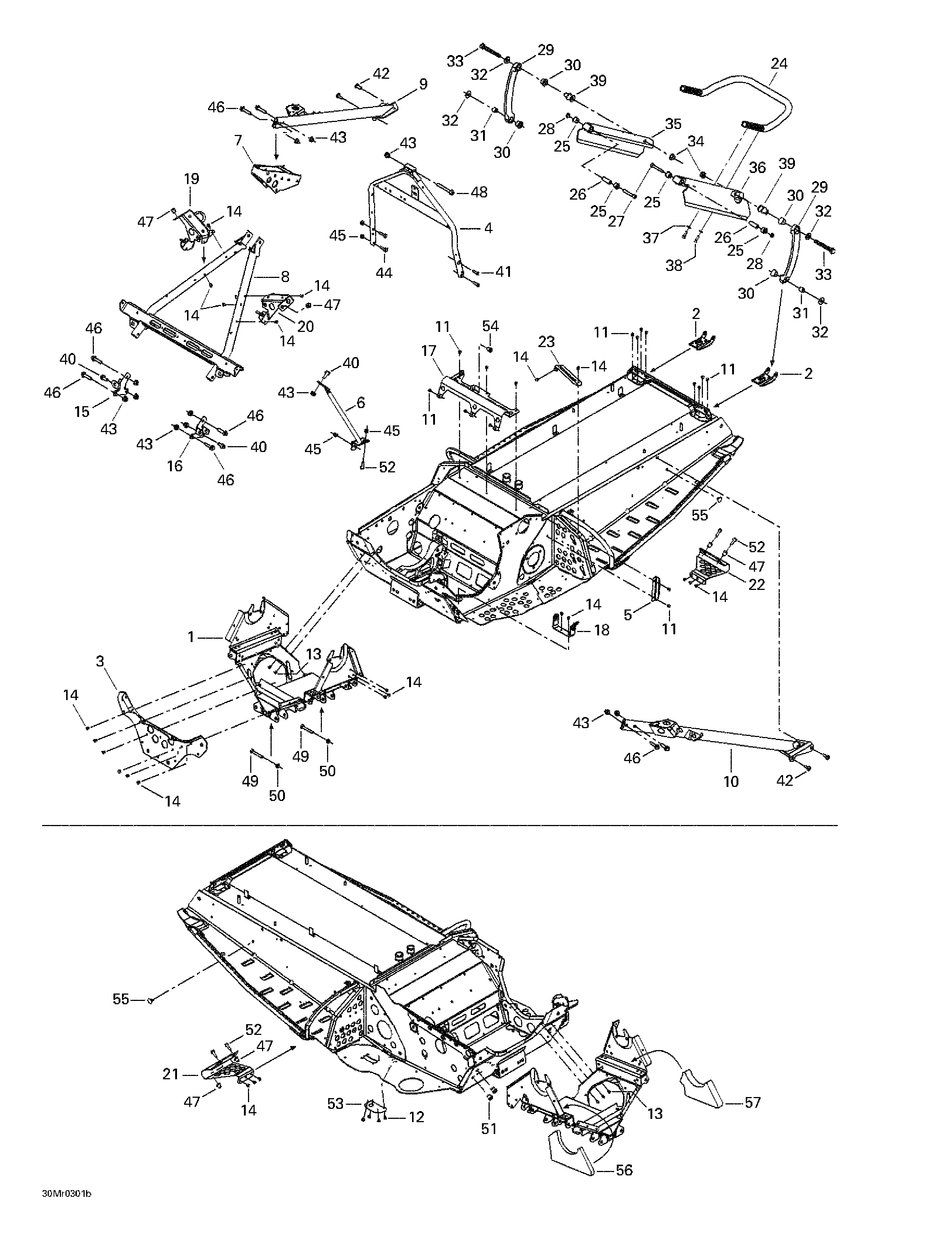

09- Frame - Front And Rear для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1518323246 Front cross-memberFront cross-member
-
2518322253 Rear pivotRear pivot
-
3518322166 Front plateFront plate
-
4518323394 Handle supportHandle support
-
6518323472 BraceBrace
-
7518322546 BracketBracket
-
8518323251 Upper cross-memberUpper cross-member
-
9518323352 R.H. memberR.H. member
-
10518323354 L.H. memberL.H. member
-
11390402200 Pop rivet 3/16''Pop rivet 3/16''
-
12390402400 Pop rivet 3/16''Pop rivet 3/16''
-
13390909100 Rivet AvexRivet Avex
-
14390909200 Rivet AvexRivet Avex
-
15518322461 R.H. shock bracketR.H. shock bracket
-
16518322462 L.H. shock bracketL.H. shock bracket
-
17518323463 Air intake supportAir intake support
-
18518322726 Belt guard bracketBelt guard bracket
-
19518322961 R.H. console supportR.H. console support
-
20518322962 L.H. console supportL.H. console support
-
21518323377 R.H. toe holdR.H. toe hold
-
22518323378 L.H. toe holdL.H. toe hold
-
23518323105 PlatePlate
-
24518322370 Rear bumperRear bumper
-
25520000234 CushionCushion
-
26518322367 BushingBushing
-
27205085544 Socket head screw M8 x 55Socket head screw M8 x 55
-
28232581414 Elastic stop nut M8Elastic stop nut M8
-
29518323454 RodRod
-
30503189117 CushionCushion
-
31518322368 BushingBushing
-
32732900051 Flat washerFlat washer
-
33207108044 Hex. screw M10 x 80Hex. screw M10 x 80
-
34233201414 Elastic flanged nut M10Elastic flanged nut M10
-
35518323396 R.H. supportR.H. support
-
36518323398 L.H. supportL.H. support
-
38224061121 Flat washerFlat washer
-
39518322682 SpacerSpacer
-
40207682044 Hex. flanged screw M8 x 20Hex. flanged screw M8 x 20
-
41205862044 Socket head screw M6 x 20 (Scotch Grip)Socket head screw M6 x 20 (Scotch Grip)
-
42250000117 Torx screw M8 x 20 (Scotch Grip)Torx screw M8 x 20 (Scotch Grip)
-
43233281414 Elastic flanged nut M8Elastic flanged nut M8
-
44207662544 Hex. flanged screw M6 x 25Hex. flanged screw M6 x 25
-
45233261414 Elastic flanged nut M6Elastic flanged nut M6
-
46207683544 Hex. flanged screw M8 x 35Hex. flanged screw M8 x 35
-
47415107300 InsertInsert
-
48207687044 Hex. flanged screw M8 x 70Hex. flanged screw M8 x 70
-
49207085044 Hex. screw M8 x 50Hex. screw M8 x 50
-
50232581414 Elastic stop nut M8Elastic stop nut M8
-
51293450166 InsertInsert
-
52207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
53518323505 PlatePlate
-
54293450232 InsertInsert
-
55518321954 FastenerFastener
-
56518323453 FoamFoam
-
57518323007 FoamFoam
