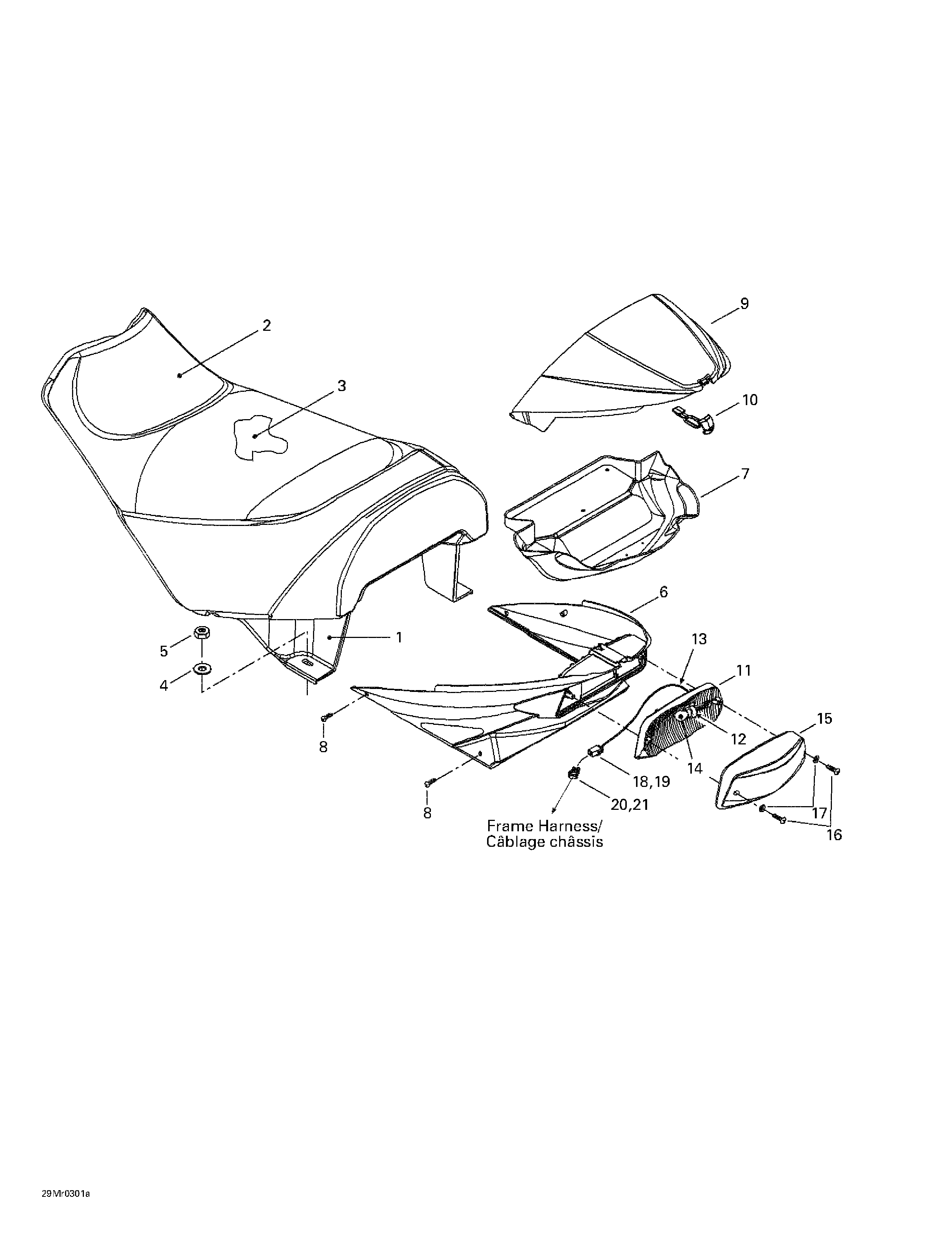

09- Seat для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1510003819 Seat baseSeat base
-
2510003820 Seat coverSeat cover
-
510004179 Seat cover (JAMES EDITION). MX Z 600 H.O..Seat cover (JAMES EDITION). MX Z 600 H.O..
-
3510003821 Seat foamSeat foam
-
4234082410 Flat washer 8 mmFlat washer 8 mm
-
5232581414 Elastic stop nut M8Elastic stop nut M8
-
6510004136 Trunk (YELLOW (B-190))Trunk (YELLOW (B-190))
-
510004138 Trunk (BLACK (B-160))Trunk (BLACK (B-160))
-
510004138 Trunk. (BLACK (B-160)) (JAMES EDITION) MX Z 600 H.O.Trunk. (BLACK (B-160)) (JAMES EDITION) MX Z 600 H.O.
-
7510004021 Box linerBox liner
-
8250000123 Phillips screw M6 x 16Phillips screw M6 x 16
-
9510004137 Cover (ORANGE (B-228))Cover (ORANGE (B-228))
-
9510004139 Cover (BLACK (B-160))Cover (BLACK (B-160))
-
9510004139 Cover. (BLACK (B-160)) (JAMES EDITION) MX Z 600 H.O.Cover. (BLACK (B-160)) (JAMES EDITION) MX Z 600 H.O.
-
10510003917 BracketBracket
-
11510004018 ReflectorReflector
-
12414979411 Rubber damperRubber damper
-
13515175940 FittingFitting
-
14410504100 Tail lamp bulbTail lamp bulb
-
15510003826 LensLens
-
16209632580 Phillips tapping screw 3.9 x 25Phillips tapping screw 3.9 x 25
-
17414516400 WasherWasher
-
18515175494 Male terminal housingMale terminal housing
-
19515175232 Male terminalMale terminal
-
20515175231 Female terminalFemale terminal
-
21515175495 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
