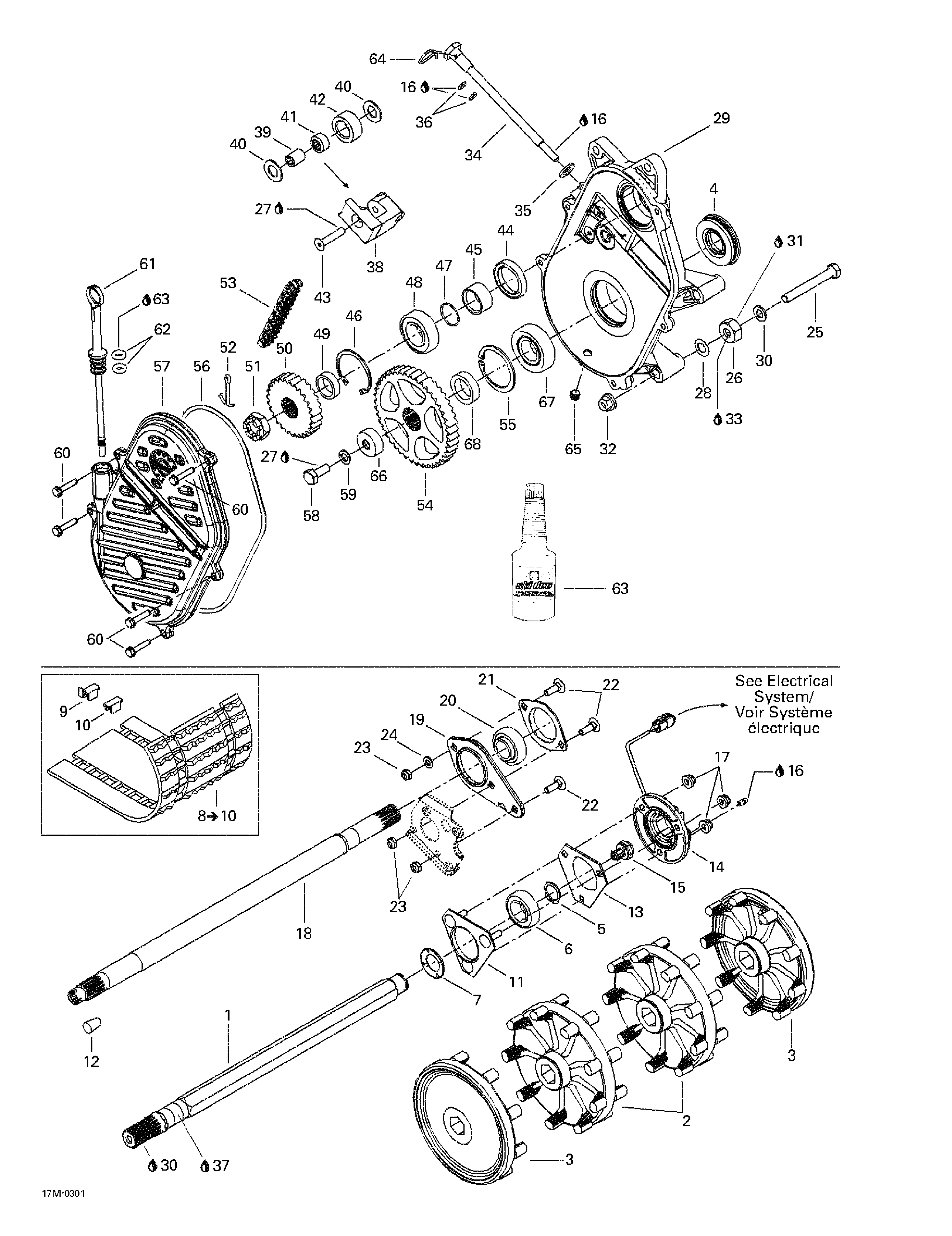

05- Drive System для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1501027400 Drive axleDrive axle
-
2504151781 Sprocket (9 teeth)Sprocket (9 teeth)
-
3504151782 Half sprocket (9 teeth)Half sprocket (9 teeth)
-
4504151918 Oil seal ass'yOil seal ass'y
-
5371910200 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 Ball bearing protectorBall bearing protector
-
8504152157 Track (15'' x 121'' x 1''). Includes 8 - 10.Track (15'' x 121'' x 1''). Includes 8 - 10.
-
9500003400 Guide clipGuide clip
-
10504151828 CleatCleat
-
8504152176 Track (15'' x 121'' x 1.25''). Includes 8 - 10.Track (15'' x 121'' x 1.25''). Includes 8 - 10.
-
9500003400 Guide clipGuide clip
-
10504151828 CleatCleat
-
8504152196 Track (15'' x 121'' x 1.75''). Includes 8 - 10. MX Z 800.Track (15'' x 121'' x 1.75''). Includes 8 - 10. MX Z 800.
-
9500003400 Guide clip. MX Z 800.Guide clip. MX Z 800.
-
10504151828 Cleat. MX Z 800.Cleat. MX Z 800.
-
11504151860 Ball bearing housingBall bearing housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152167 Speed sensor flangeSpeed sensor flange
-
15504152040 Magnetic adaptorMagnetic adaptor
-
16219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
17233281414 Elastic flanged nut M8Elastic flanged nut M8
-
18504152018 Counter shaftCounter shaft
-
19504151968 SpacerSpacer
-
20504152026 Ball bearingBall bearing
-
21501026900 FlangeFlange
-
22207782544 Carriage bolt M8 x 25Carriage bolt M8 x 25
-
23232581414 Elastic stop nut M8Elastic stop nut M8
-
24234081410 Flat washer 8 mmFlat washer 8 mm
-
25207108044 Hex. screw M10 x 80Hex. screw M10 x 80
-
26504083800 SpacerSpacer
-
27293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
28504073700 WasherWasher
-
29504152105 ChaincaseChaincase
-
30503183800 WasherWasher
-
31293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
32233201414 Elastic flanged nut M10Elastic flanged nut M10
-
33293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
34732601314 Adjusting screwAdjusting screw
-
35234001410 Flat washer 10 mmFlat washer 10 mm
-
36414484400 O-ringO-ring
-
37219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
38504151951 Chain tensionnerChain tensionner
-
39504080200 SpacerSpacer
-
40504080300 WasherWasher
-
41405403000 Needle bearingNeedle bearing
-
42414531300 RollerRoller
-
43732601144 ScrewScrew
-
44415049300 Oil sealOil seal
-
45507031500 SpacerSpacer
-
46371901700 CirclipCirclip
-
47414876700 O-ringO-ring
-
48504152006 Ball bearingBall bearing
-
49504147200 ShimShim
-
50504085300 Sprocket, large (26 teeth). MX Z 800.Sprocket, large (26 teeth). MX Z 800.
-
504139700 Sprocket, large (24 teeth). MX Z 600 H.O..Sprocket, large (24 teeth). MX Z 600 H.O..
-
51250000012 Hex. castellated nut M20Hex. castellated nut M20
-
52371006300 Cotter pinCotter pin
-
53504151830 Drive chain, large (72 links)Drive chain, large (72 links)
-
54504148500 Sprocket (43 teeth)Sprocket (43 teeth)
-
55415064300 CirclipCirclip
-
56414362300 O-ringO-ring
-
57504152081 CoverCover
-
58207102544 Hex. screw M10 x 25Hex. screw M10 x 25
-
59234100602 Lock washer 10 mmLock washer 10 mm
-
60210263080 Hex. flanged screw M6 x 30Hex. flanged screw M6 x 30
-
61504151750 Filler capFiller cap
-
62414969400 O-ringO-ring
-
63413803300 Synthetic chaincase oil,. 12 x 355 mlSynthetic chaincase oil,. 12 x 355 ml
-
64414575600 Hair pinHair pin
-
65504151921 Plug 1/8''-27Plug 1/8''-27
-
66504152104 CapCap
-
67504152005 Ball bearingBall bearing
-
68504152058 ShimShim
