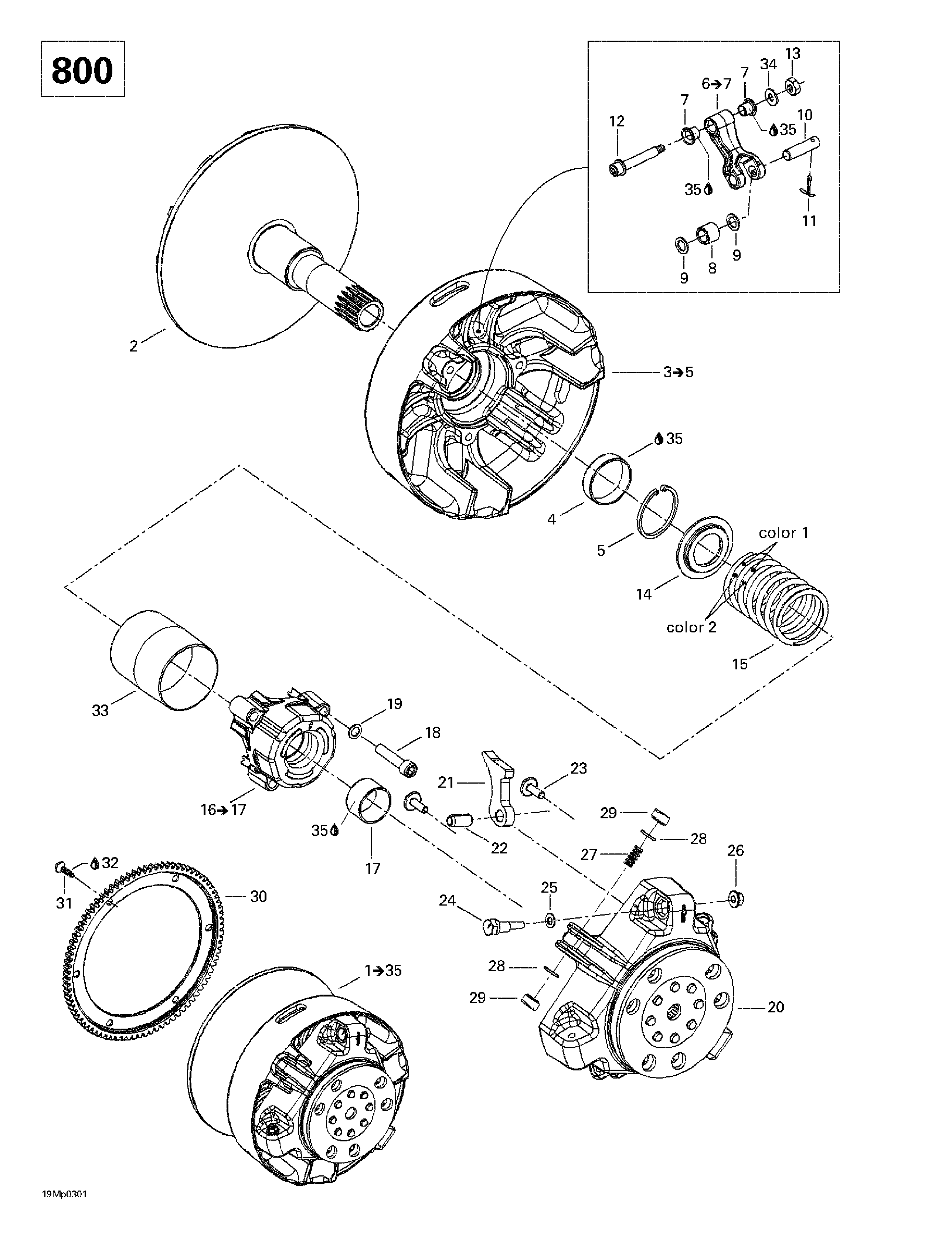

05- Drive Pulley (800) для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
2417222167 Fixed flange. MX Z 800.Fixed flange. MX Z 800.
-
3417222171 Sliding flange ass'y. Includes 3 - 5. MX Z 800.Sliding flange ass'y. Includes 3 - 5. MX Z 800.
-
4417006900 Bushing. MX Z 800.Bushing. MX Z 800.
-
5293370037 Circlip. MX Z 800.Circlip. MX Z 800.
-
6417222306 Lever ass'y. Includes 6 - 7. MX Z 800.Lever ass'y. Includes 6 - 7. MX Z 800.
-
7417004305 Bushing. MX Z 800.Bushing. MX Z 800.
-
8417003900 Roller ass'y. MX Z 800.Roller ass'y. MX Z 800.
-
9417004302 Stopper washer. MX Z 800.Stopper washer. MX Z 800.
-
10417004308 Pin. MX Z 800.Pin. MX Z 800.
-
11732958001 Cotter pin. MX Z 800.Cotter pin. MX Z 800.
-
12417222028 Screw ass'y. MX Z 800.Screw ass'y. MX Z 800.
-
13232561414 Elastic Stop Nut M6. MX Z 800.Elastic Stop Nut M6. MX Z 800.
-
14417222312 Spring seat. MX Z 800.Spring seat. MX Z 800.
-
15415015300 Spring (violet/yellow). MX Z 800.Spring (violet/yellow). MX Z 800.
-
16417007500 Spring cover ass'y. Includes 16 - 17. MX Z 800.Spring cover ass'y. Includes 16 - 17. MX Z 800.
-
17417009204 Bushing. MX Z 800.Bushing. MX Z 800.
-
18205084044 Socket Head Screw M8 x 40. MX Z 800.Socket Head Screw M8 x 40. MX Z 800.
-
19250200009 Lock washer 8 mm. MX Z 800.Lock washer 8 mm. MX Z 800.
-
20417222213 Governor cup. MX Z 800.Governor cup. MX Z 800.
-
21417222546 Ramp 414. MX Z 800.Ramp 414. MX Z 800.
-
22250400009 Rolled pin M10 x 22. MX Z 800.Rolled pin M10 x 22. MX Z 800.
-
23250000059 Hex. flanged screw M6 x 18. MX Z 800.Hex. flanged screw M6 x 18. MX Z 800.
-
24417005500 Calibration screw. MX Z 800.Calibration screw. MX Z 800.
-
25417005600 Washer. MX Z 800.Washer. MX Z 800.
-
26233061414 Hex. flanged nut M6. MX Z 800.Hex. flanged nut M6. MX Z 800.
-
27417005700 Spring. MX Z 800.Spring. MX Z 800.
-
28732401030 O-ring. MX Z 800.O-ring. MX Z 800.
-
29417222362 Slider shoe. MX Z 800.Slider shoe. MX Z 800.
-
30417222321 Ring gear. RER 800 ELECTRIC MX Z 800.Ring gear. RER 800 ELECTRIC MX Z 800.
-
31250000049 Torx screw M8 x 14.5. RER 800 ELECTRIC MX Z 800.Torx screw M8 x 14.5. RER 800 ELECTRIC MX Z 800.
-
32293800005 Loctite 271, 10 ml. RER 800 ELECTRIC MX Z 800.Loctite 271, 10 ml. RER 800 ELECTRIC MX Z 800.
-
33417009205 Guard. MX Z 800.Guard. MX Z 800.
-
34234061410 Flat washer 6 mm. MX Z 800.Flat washer 6 mm. MX Z 800.
-
35413703100 Loctite 609, 10 ml. MX Z 800.Loctite 609, 10 ml. MX Z 800.
