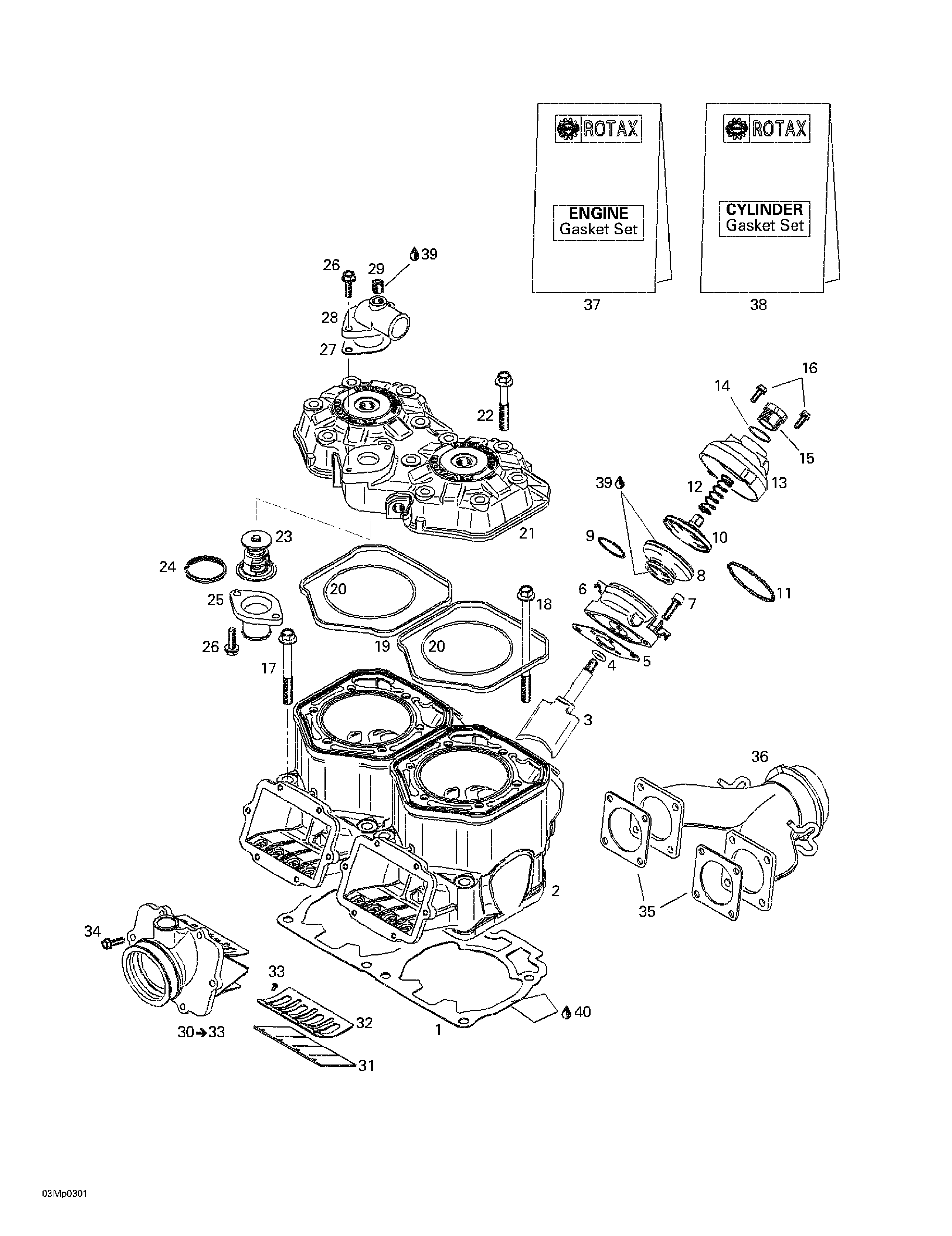

01- Cylinder, Exhaust Manifold, Reed Valve 2 для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003

  • №
    Артикул
    Название
  • 1
    420931839 Gasket 0.8 mm. MX Z 800.
    Gasket 0.8 mm. MX Z 800.
  • 420931964 Gasket 0.7 mm. MX Z 800.
    Gasket 0.7 mm. MX Z 800.
  • 420931837 Gasket 0.6 mm. MX Z 800.
    Gasket 0.6 mm. MX Z 800.
  • 420931838 Gasket 0.5 mm. MX Z 800.
    Gasket 0.5 mm. MX Z 800.
  • 2
    420923817 Nicasil cylinder. MX Z 800.
    Nicasil cylinder. MX Z 800.
  • 3
    420854465 Exhaust valve. MX Z 800.
    Exhaust valve. MX Z 800.
  • 4
    420430110 O-ring. MX Z 800.
    O-ring. MX Z 800.
  • 5
    420931542 Gasket. MX Z 800.
    Gasket. MX Z 800.
  • 6
    420854455 Valve housing. MX Z 800.
    Valve housing. MX Z 800.
  • 7
    205062544 Socket head screw M6 x 25. MX Z 800.
    Socket head screw M6 x 25. MX Z 800.
  • 8
    420260729 Bellows. MX Z 800.
    Bellows. MX Z 800.
  • 9
    420838253 Spring clamp. MX Z 800.
    Spring clamp. MX Z 800.
  • 10
    420854449 Exhaust valve. MX Z 800.
    Exhaust valve. MX Z 800.
  • 11
    290239048 Hose spring. MX Z 800.
    Hose spring. MX Z 800.
  • 12
    420239940 Spring. MX Z 800.
    Spring. MX Z 800.
  • 13
    290911558 Valve cover. MX Z 800.
    Valve cover. MX Z 800.
  • 14
    420430220 O-ring. MX Z 800.
    O-ring. MX Z 800.
  • 15
    420241221 Adjuster screw. MX Z 800.
    Adjuster screw. MX Z 800.
  • 16
    420241270 Screw M5 x 25. MX Z 800.
    Screw M5 x 25. MX Z 800.
  • 17
    420640524 Hex. collar screw M10 x 80. MX Z 800.
    Hex. collar screw M10 x 80. MX Z 800.
  • 18
    420640534 Hex. collar screw M10 x 120. MX Z 800.
    Hex. collar screw M10 x 120. MX Z 800.
  • 19
    420931590 Rubber ring. MX Z 800.
    Rubber ring. MX Z 800.
  • 20
    290931410 O-ring. MX Z 800.
    O-ring. MX Z 800.
  • 21
    420923825 Cylinder head (silver). MX Z 800.
    Cylinder head (silver). MX Z 800.
  • 22
    420941621 Hex. collar screw M8 x 56.5. MX Z 800.
    Hex. collar screw M8 x 56.5. MX Z 800.
  • 23
    420922517 Thermostat (42 Deg.). MX Z 800.
    Thermostat (42 Deg.). MX Z 800.
  • 24
    420931272 Sealing ring. MX Z 800.
    Sealing ring. MX Z 800.
  • 25
    420922025 Outlet socket. MX Z 800.
    Outlet socket. MX Z 800.
  • 26
    420941250 Screw M6 x 20. MX Z 800.
    Screw M6 x 20. MX Z 800.
  • 27
    420850338 Gasket. MX Z 800.
    Gasket. MX Z 800.
  • 28
    420922062 Bent outlet socket. MX Z 800.
    Bent outlet socket. MX Z 800.
  • 29
    420240480 Plug screw 1/8-27 NPT. MX Z 800.
    Plug screw 1/8-27 NPT. MX Z 800.
  • 30
    420867879 Intake socket ass'y. Includes 30 - 33. MX Z 800.
    Intake socket ass'y. Includes 30 - 33. MX Z 800.
  • 31
    420924680 Reed pedal. MX Z 800.
    Reed pedal. MX Z 800.
  • 32
    420924695 Reed pedal stop. MX Z 800.
    Reed pedal stop. MX Z 800.
  • 33
    420941215 Screw M3 x 5. MX Z 800.
    Screw M3 x 5. MX Z 800.
  • 34
    420941925 Screw M5 x 16. MX Z 800.
    Screw M5 x 16. MX Z 800.
  • 35
    420931850 Gasket. MX Z 800.
    Gasket. MX Z 800.
  • 36
    420973713 Exhaust manifold. MX Z 800.
    Exhaust manifold. MX Z 800.
  • 37
    420888741 Engine gasket set. MX Z 800.
    Engine gasket set. MX Z 800.
  • 38
    420888745 Cylinder gasket set. MX Z 800.
    Cylinder gasket set. MX Z 800.
  • 39
    420297906 Sealing compound, 30 ml. MX Z 800.
    Sealing compound, 30 ml. MX Z 800.
  • 40
    293800038 Loctite 518, 50 ml. MX Z 800.
    Loctite 518, 50 ml. MX Z 800.
