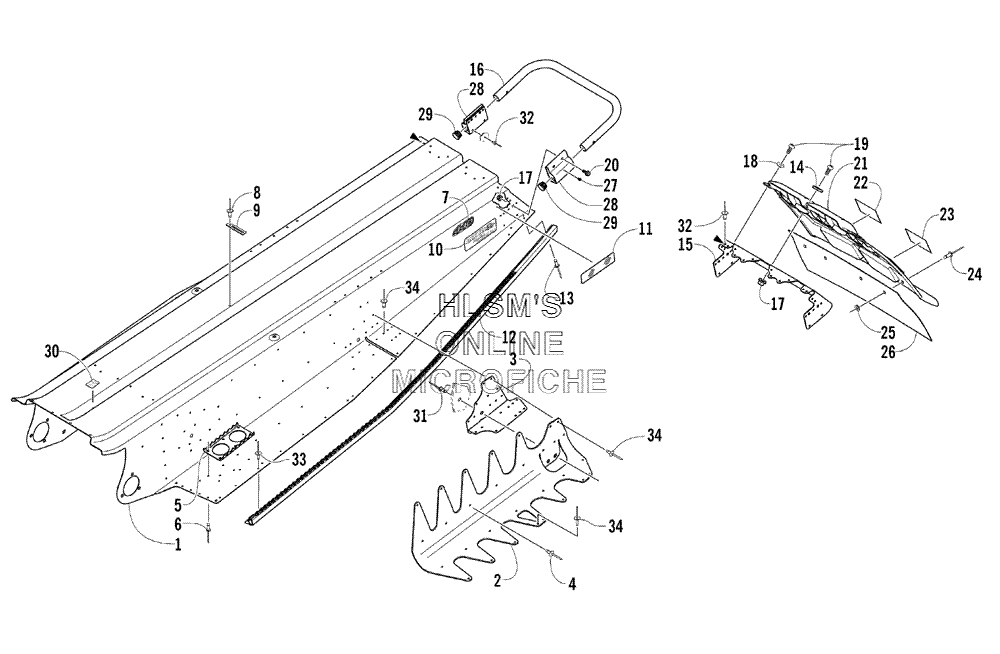

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLIES для Arctic Cat AC SNO PRO MOD - 2005 года выпуска`
-
№АртикулНазвание
-
11718-879 TUNNEL ASSEMBLY (INC. 2, 4)TUNNEL ASSEMBLY (INC. 2, 4)
-
22706-708 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
-
22706-709 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
-
32706-940 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
32706-941 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
40623-072 RIVETRIVET
-
52706-700 PLATE, GRIPPLATE, GRIP
-
68060-628 RIVETRIVET
-
76611-633 DECAL, TUNNELDECAL, TUNNEL
-
88060-706 RIVETRIVET
-
93002-964 CLAMP, WIRECLAMP, WIRE
-
105611-939 DECAL, A/C GENUINE LUBRICANTSDECAL, A/C GENUINE LUBRICANTS
-
110411-647 DECAL, REFLECTOR (RED)DECAL, REFLECTOR (RED)
-
123706-106 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
123706-107 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
138060-484 RIVETRIVET
-
143706-061 HOLDDOWN, SNOWFLAPHOLDDOWN, SNOWFLAP
-
153706-108 PLATE, TUNNEL, CLOSE OFFPLATE, TUNNEL, CLOSE OFF
-
162706-984 BUMPER (REAR)BUMPER (REAR)
-
178047-366 NUT, LOCKNUT, LOCK
-
181623-242 WASHERWASHER
-
198017-581 SCREW, MACHINESCREW, MACHINE
-
208020-041 SCREW, CAPSCREW, CAP
-
212706-590 SNOWFLAP W/DECAL (INC. 22, 23)SNOWFLAP W/DECAL (INC. 22, 23)
-
225611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
235611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
248061-628 RIVETRIVET
-
258050-157 WASHERWASHER
-
263606-226 EXTENSION, SNOWFLAPEXTENSION, SNOWFLAP
-
270623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
283706-105 BRACKET (REAR) BUMPERBRACKET (REAR) BUMPER
-
290603-049 CAP, SPINDLECAP, SPINDLE
-
302606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
311623-241 RIVETRIVET
-
328060-686 RIVETRIVET
-
330123-418 RIVETRIVET
-
340623-806 RIVETRIVET
