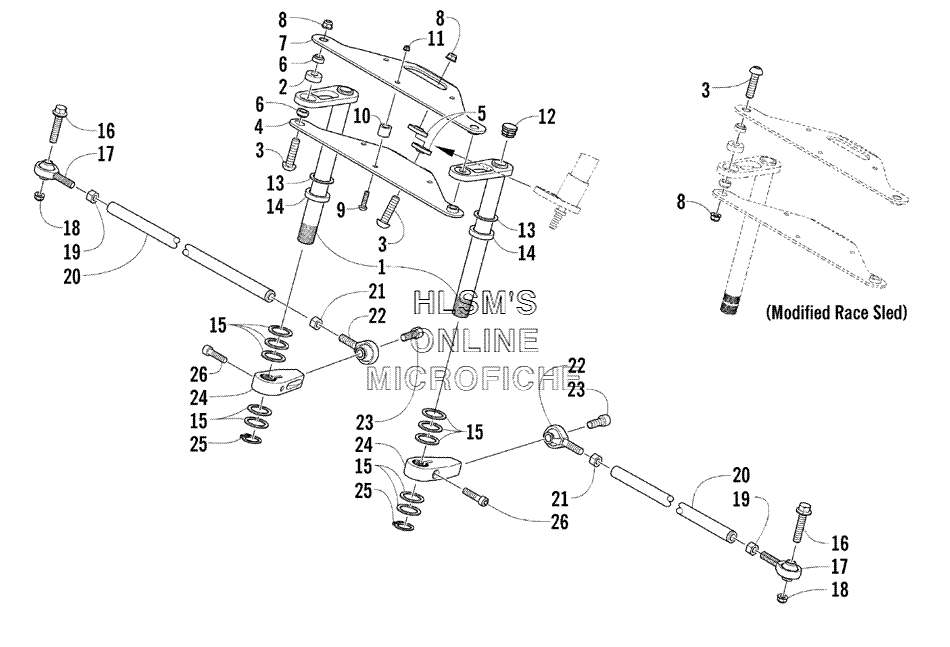

TIE ROD ASSEMBLY для Arctic Cat AC SNO PRO MOD - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1705-086 SHAFT, STEERING (INC. 2)
    SHAFT, STEERING (INC. 2)
  • 2
    0605-807 BEARING
    BEARING
  • 3
    1623-400 SCREW, CAP
    SCREW, CAP
  • 4
    1705-083 LINK, STEERING, BOTTOM (INC. ONE NO. 5 AND TWO NO. 6)
    LINK, STEERING, BOTTOM (INC. ONE NO. 5 AND TWO NO. 6)
  • 5
    0605-808 INSERT, STEERING
    INSERT, STEERING
  • 6
    0605-803 INSERT, STEERING
    INSERT, STEERING
  • 7
    1705-082 LINK, STEERING, TOP (INC. ONE NO. 5 AND TWO NO. 6)
    LINK, STEERING, TOP (INC. ONE NO. 5 AND TWO NO. 6)
  • 8
    8047-486 NUT, LOCK
    NUT, LOCK
  • 9
    1623-365 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    0605-804 SPACER
    SPACER
  • 11
    8047-366 NUT, LOCK
    NUT, LOCK
  • 12
    0606-654 PLUG
    PLUG
  • 13
    0623-954 WASHER, THRUST
    WASHER, THRUST
  • 14
    0605-806 SPACER
    SPACER
  • 15
    0623-955 WASHER, THRUST
    WASHER, THRUST
  • 16
    8020-226 SCREW, CAP
    SCREW, CAP
  • 17
    0605-788 ROD, END (RIGHT)
    ROD, END (RIGHT)
  • 18
    8047-486 NUT, LOCK
    NUT, LOCK
  • 19
    0123-917 NUT, HEX (LEFT)
    NUT, HEX (LEFT)
  • 20
    0605-798 TUBE, TIE ROD, SPINDLE
    TUBE, TIE ROD, SPINDLE
  • 21
    0623-294 NUT, HEX (RIGHT)
    NUT, HEX (RIGHT)
  • 22
    0605-607 BALL JOINT (LEFT)
    BALL JOINT (LEFT)
  • 23
    1623-394 SCREW, CAP
    SCREW, CAP
  • 24
    0605-785 ARM, SHAFT
    ARM, SHAFT
  • 25
    0623-956 SNAP RING
    SNAP RING
  • 26
    8005-584 SCREW, CAP
    SCREW, CAP
