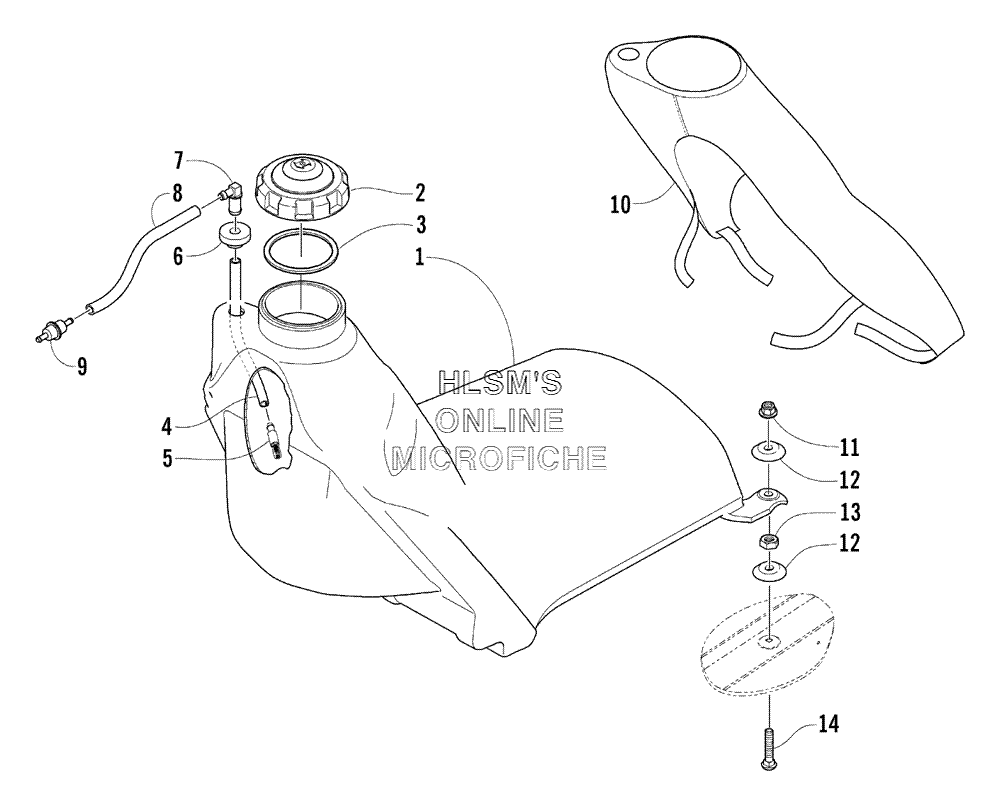

GAS TANK ASSEMBLY для Arctic Cat AC SNO PRO MOD - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-716 TANK, GAS (INC. 2, 8)
    TANK, GAS (INC. 2, 8)
  • 2
    1670-610 CAP, GAS TANK (INC. 3)
    CAP, GAS TANK (INC. 3)
  • 3
    1670-228 SEAL, TANK CAP
    SEAL, TANK CAP
  • 4
    0610-017 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 4
    0610-008 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 5
    0510-358 STRAINER, GAS TANK
    STRAINER, GAS TANK
  • 6
    1670-325 GROMMET, GAS TANK
    GROMMET, GAS TANK
  • 7
    0109-414 FITTING, ELBOW
    FITTING, ELBOW
  • 8
    0610-015 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 8
    0610-016 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 9
    1670-166 FILTER, INNER, LINE FUEL
    FILTER, INNER, LINE FUEL
  • 10
    2706-586 COVER, GAS TANK
    COVER, GAS TANK
  • 11
    8047-366 NUT, LOCK
    NUT, LOCK
  • 12
    0123-765 WASHER, CUP
    WASHER, CUP
  • 13
    8041-366 NUT, LOCK
    NUT, LOCK
  • 14
    8011-041 BOLT, CARRIAGE
    BOLT, CARRIAGE
