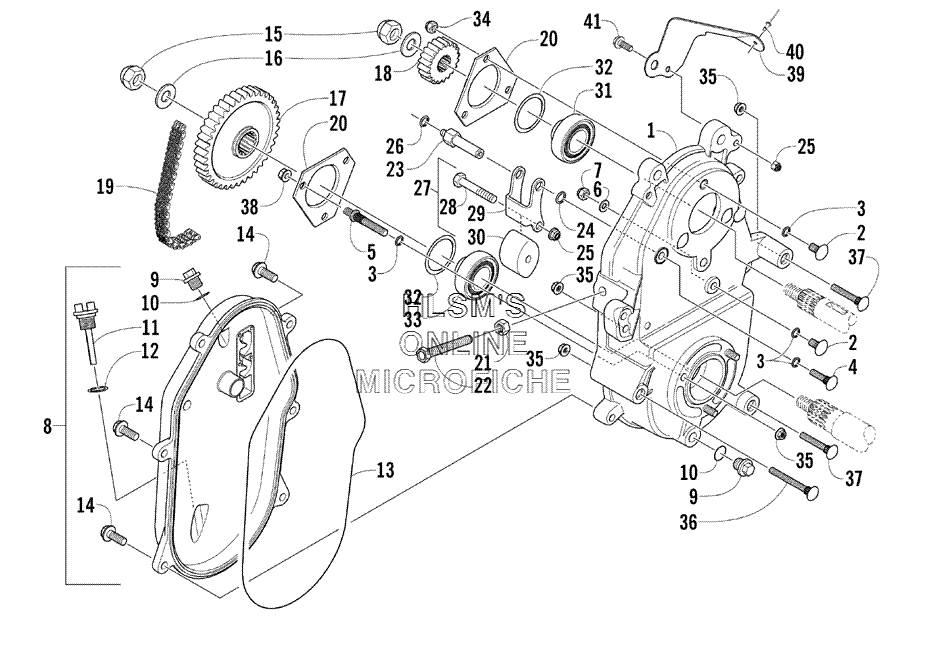

DRIVE/DROPCASE ASSEMBLY для Arctic Cat AC SNO PRO MOD - 2005 года выпуска`
-
№АртикулНазвание
-
10702-628 DROPCASE W/STUDS (INC. 2, 7)DROPCASE W/STUDS (INC. 2, 7)
-
20123-523 BOLT, RIBBEDBOLT, RIBBED
-
30607-025 O?RING, STUDO?RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50623-317 STUDSTUD
-
60623-094 WASHERWASHER
-
78042-426 NUT, LOCKNUT, LOCK
-
87998-488 COVER, DROPCASE, ASSEMBLY (INC. ONE NO. 9, 10)COVER, DROPCASE, ASSEMBLY (INC. ONE NO. 9, 10)
-
90623-293 PLUG, DROPCASEPLUG, DROPCASE
-
101602-213 O-RINGO-RING
-
110602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
120670-183 O?O-RINGIL LEVEL STICKO?O-RINGIL LEVEL STICK
-
130602-437 SEAL, DROPCASESEAL, DROPCASE
-
148020-133 SCREW, CAPSCREW, CAP
-
150623-465 NUT, LOCKNUT, LOCK
-
160623-231 WASHER, SPRINGWASHER, SPRING
-
171602-804 SPROCKET (46 TEETH/17 WIDE)SPROCKET (46 TEETH/17 WIDE)
-
181602-735 SPROCKET (20 TEETH/17 WIDE)SPROCKET (20 TEETH/17 WIDE)
-
191602-806 CHAIN, 74P (17 WIDE)CHAIN, 74P (17 WIDE)
-
201602-521 PLATE, FLANGEPLATE, FLANGE
-
210123-150 NUTNUT
-
220602-638 SCREW, CHAIN ROLLERSCREW, CHAIN ROLLER
-
231602-864 PIVOT, TENSIONERPIVOT, TENSIONER
-
241602-855 O-RINGO-RING
-
258047-366 NUT, LOCKNUT, LOCK
-
261602-322 O-RINGO-RING
-
270702-715 ADJUSTER, CHAIN, ASSEMBLY (INC. 28, 30 AND ONE NO. 25)ADJUSTER, CHAIN, ASSEMBLY (INC. 28, 30 AND ONE NO. 25)
-
288002-046 SCREW, CAPSCREW, CAP
-
290605-812 BRACKET, CHAIN ROLLERBRACKET, CHAIN ROLLER
-
300107-411 PAD, TIGHTENERPAD, TIGHTENER
-
311602-051 BEARING, 1 IN.BEARING, 1 IN.
-
320107-003 SEAL, O-RINGSEAL, O-RING
-
331602-601 BEARING, 1 1/16 IN.BEARING, 1 1/16 IN.
-
348041-426 NUT, LOCKNUT, LOCK
-
358047-426 NUT, LOCKNUT, LOCK
-
361623-121 BOLT, CARRIAGEBOLT, CARRIAGE
-
378011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
388048-426 NUT, LOCKNUT, LOCK
-
394606-015 SUPPORT, CONSOLESUPPORT, CONSOLE
-
401623-130 RIVETRIVET
-
418020-044 SCREW, CAPSCREW, CAP
