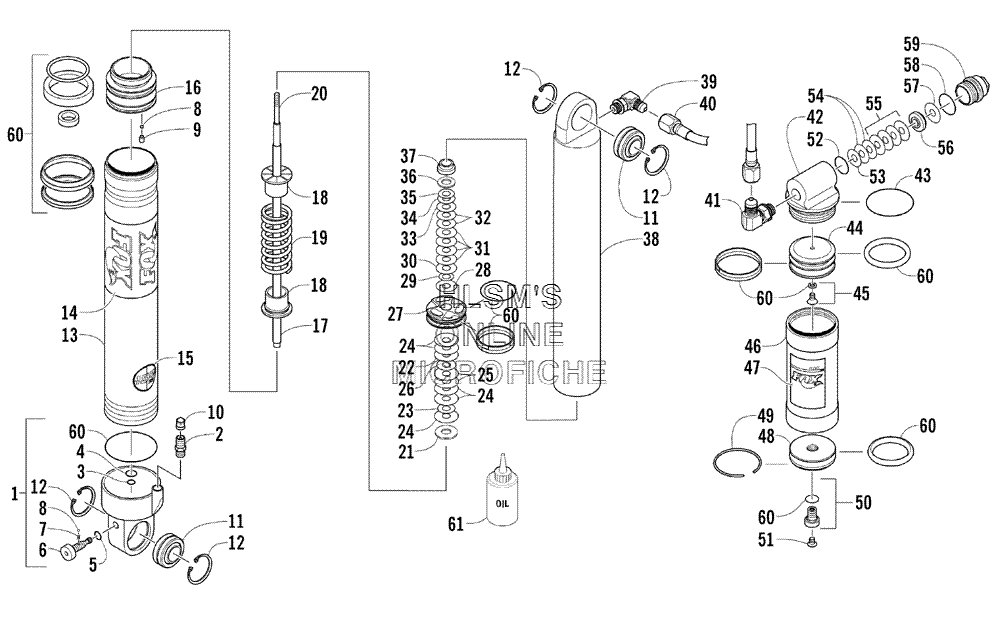

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat AC SNO PRO MOD - 2005 года выпуска

  • №
    Артикул
    Название
  • -
    1703-790 SHOCK ABSORBER ASSEMBLY (RIGHT)
    SHOCK ABSORBER ASSEMBLY (RIGHT)
  • -
    1703-791 SHOCK ABSORBER ASSEMBLY (LEFT)
    SHOCK ABSORBER ASSEMBLY (LEFT)
  • 1
    2603-512 CAP, AIR SLEEVE (RIGHT) (INC. 2, 7 AND ONE NO. 8)
    CAP, AIR SLEEVE (RIGHT) (INC. 2, 7 AND ONE NO. 8)
  • 1
    2603-513 CAP, AIR SLEEVE (LEFT) (INC. 2, 7 AND ONE NO. 8)
    CAP, AIR SLEEVE (LEFT) (INC. 2, 7 AND ONE NO. 8)
  • 2
    2603-326 VALVE, AIR
    VALVE, AIR
  • 3
    2603-506 O-RING
    O-RING
  • 4
    1604-318 O-RING
    O-RING
  • 5
    2603-503 O-RING
    O-RING
  • 6
    2603-514 KNOB, DAMPING ADJUST
    KNOB, DAMPING ADJUST
  • 7
    2603-529 SPRING, REBOUND
    SPRING, REBOUND
  • 8
    1604-315 BALL, BLEED
    BALL, BLEED
  • 9
    1603-940 SCREW
    SCREW
  • 10
    2603-327 CAP, VALVE
    CAP, VALVE
  • 11
    1604-664 BEARING, SPHERICAL
    BEARING, SPHERICAL
  • 12
    2604-714 RING, SNAP
    RING, SNAP
  • 13
    2603-411 SLEEVE, SHOCK, ASSEMBLY
    SLEEVE, SHOCK, ASSEMBLY
  • 14
    2603-509 DECAL, SHOCK
    DECAL, SHOCK
  • 15
    2603-510 DECAL, MAXIMUM PRESSURE WARNING
    DECAL, MAXIMUM PRESSURE WARNING
  • 16
    2603-524 BEARING, ASSEMBLY
    BEARING, ASSEMBLY
  • 17
    2603-523 SHAFT, SHOCK, ASSEMBLY
    SHAFT, SHOCK, ASSEMBLY
  • 18
    2603-522 GUIDE, SPRING
    GUIDE, SPRING
  • 19
    2603-507 SPRING
    SPRING
  • 20
    2603-516 ROD, DAMPING ADJUST
    ROD, DAMPING ADJUST
  • 21
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 22
    0603-348 VALVE, SHOCK 1.300 X 0.006 IN.
    VALVE, SHOCK 1.300 X 0.006 IN.
  • 23
    0603-337 VALVE, SHOCK 0.900 X 0.008 IN.
    VALVE, SHOCK 0.900 X 0.008 IN.
  • 24
    0603-349 VALVE, SHOCK 1.300 X 0.008 IN.
    VALVE, SHOCK 1.300 X 0.008 IN.
  • 25
    0603-350 VALVE, SHOCK 1.300 X 0.010 IN.
    VALVE, SHOCK 1.300 X 0.010 IN.
  • 26
    0603-893 VALVE, SHOCK 1.000 X 0.004 IN.
    VALVE, SHOCK 1.000 X 0.004 IN.
  • 27
    2603-531 PISTON, DAMPING
    PISTON, DAMPING
  • 28
    0603-343 VALVE, SHOCK 1.100 X 0.008 IN.
    VALVE, SHOCK 1.100 X 0.008 IN.
  • 29
    0603-332 VALVE, SHOCK 0.700 X 0.010 IN.
    VALVE, SHOCK 0.700 X 0.010 IN.
  • 30
    0603-344 VALVE, SHOCK 1.100 X 0.010 IN.
    VALVE, SHOCK 1.100 X 0.010 IN.
  • 31
    0603-888 VALVE, SHOCK 1.100 X 0.015 IN.
    VALVE, SHOCK 1.100 X 0.015 IN.
  • 32
    0603-887 VALVE, SHOCK 1.000 X 0.015 IN.
    VALVE, SHOCK 1.000 X 0.015 IN.
  • 33
    0603-341 VALVE, SHOCK 1.000 X 0.010 IN.
    VALVE, SHOCK 1.000 X 0.010 IN.
  • 34
    0603-338 VALVE, SHOCK 0.900 X 0.010 IN.
    VALVE, SHOCK 0.900 X 0.010 IN.
  • 35
    0603-335 VALVE, SHOCK 0.800 X 0.010 IN.
    VALVE, SHOCK 0.800 X 0.010 IN.
  • 36
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 37
    0603-301 NUT, CAP
    NUT, CAP
  • 38
    2603-508 BODY, SHOCK
    BODY, SHOCK
  • 39
    2604-950 FITTING, ELBOW
    FITTING, ELBOW
  • 40
    2603-505 HOSE, SWIVEL
    HOSE, SWIVEL
  • 41
    2604-943 FITTING, ELBOW
    FITTING, ELBOW
  • 42
    2603-528 HOUSING, DAMPING ADJUST
    HOUSING, DAMPING ADJUST
  • 43
    2603-504 O-RING
    O-RING
  • 44
    2604-969 PISTON, INTERNAL FLOATING, ASSEMBLY
    PISTON, INTERNAL FLOATING, ASSEMBLY
  • 45
    1604-316 SCREW, RELIEF W/O-RING
    SCREW, RELIEF W/O-RING
  • 46
    2603-515 RESERVOIR
    RESERVOIR
  • 47
    2603-584 DECAL, SHOCK, RESERVOIR
    DECAL, SHOCK, RESERVOIR
  • 48
    2603-525 END CAP, SHOCK, ASSEMBLY
    END CAP, SHOCK, ASSEMBLY
  • 49
    0604-992 RING, RETAINING
    RING, RETAINING
  • 50
    0703-341 VALVE, PRESSURE
    VALVE, PRESSURE
  • 51
    0624-097 SCREW, MACHINE
    SCREW, MACHINE
  • 52
    0603-975 O-RING
    O-RING
  • 53
    2603-499 VALVE, SHOCK 0.500 X 0.006 IN.
    VALVE, SHOCK 0.500 X 0.006 IN.
  • 54
    2603-500 VALVE, SHOCK 0.600 X 0.010 IN.
    VALVE, SHOCK 0.600 X 0.010 IN.
  • 55
    2603-501 VALVE, SHOCK 0.700 X 0.010 IN.
    VALVE, SHOCK 0.700 X 0.010 IN.
  • 56
    2603-526 PISTON, DAMPING
    PISTON, DAMPING
  • 57
    0603-331 VALVE, SHOCK 0.700 X 0.008 IN.
    VALVE, SHOCK 0.700 X 0.008 IN.
  • 58
    2603-502 O-RING
    O-RING
  • 59
    2603-527 CARTRIDGE, DAMPING ADJUST
    CARTRIDGE, DAMPING ADJUST
  • 60
    2603-498 REBUILD KIT
    REBUILD KIT
  • 61
    2639-905 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
