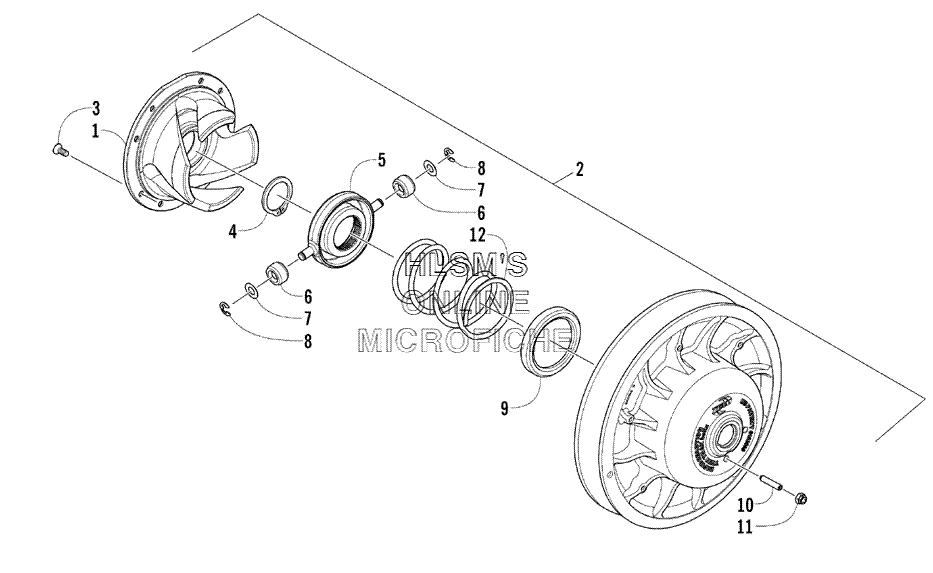

DRIVEN CLUTCH для Arctic Cat AC SNO PRO MOD - 2005 года выпуска

  • №
    Артикул
    Название
  • -
    0726-197 DRIVEN CLUTCH
    DRIVEN CLUTCH
  • 1
    0648-737 BRACKET, TORQUE 70, 44, 32/68, 48, 46
    BRACKET, TORQUE 70, 44, 32/68, 48, 46
  • 2
    0748-609 DRIVEN CLUTCH, UNCALIBRATED (INC. 3, 11)
    DRIVEN CLUTCH, UNCALIBRATED (INC. 3, 11)
  • 3
    0648-695 SCREW, CAP
    SCREW, CAP
  • 4
    0648-697 RING, RETAINING
    RING, RETAINING
  • 6
    0648-699 ROLLER, CLUTCH
    ROLLER, CLUTCH
  • 7
    0648-700 WASHER, THRUST
    WASHER, THRUST
  • 8
    0648-701 RING, RETAINING
    RING, RETAINING
  • 9
    0648-703 WASHER, THRUST
    WASHER, THRUST
  • 10
    0648-707 SCREW, SET
    SCREW, SET
  • 11
    0648-708 NUT, LOCK
    NUT, LOCK
  • 12
    0648-702 SPRING, DRIVEN CLUTCH (RED/BLACK)
    SPRING, DRIVEN CLUTCH (RED/BLACK)
