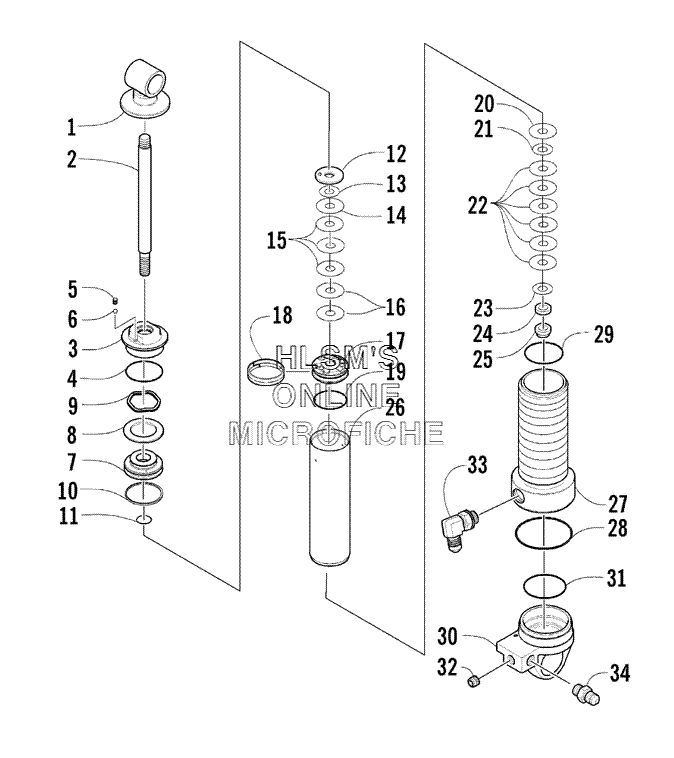

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat AC SNO PRO MOD - 2005 года выпуска

  • №
    Артикул
    Название
  • -
    1704-349 SHOCK ABSORBER ASSEMBLY
    SHOCK ABSORBER ASSEMBLY
  • -
    3639-107 SHOCK ABSORBER REBUILD KIT
    SHOCK ABSORBER REBUILD KIT
  • 1
    0604-625 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    2604-529 ROD, SHOCK
    ROD, SHOCK
  • 3
    2604-568 BEARING ASSEMBLY (INC. 4)
    BEARING ASSEMBLY (INC. 4)
  • 7
    1704-262 PISTON, SEPARATOR (INC. 8, 9)
    PISTON, SEPARATOR (INC. 8, 9)
  • 8
    2604-669 WASHER
    WASHER
  • 9
    2604-668 RING, RETAINING
    RING, RETAINING
  • 12
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 13
    0603-349 VALVE, SHOCK 1.300 X 0.008 IN.
    VALVE, SHOCK 1.300 X 0.008 IN.
  • 14
    0603-334 VALVE, SHOCK 0.800 X 0.008 IN.
    VALVE, SHOCK 0.800 X 0.008 IN.
  • 15
    0603-891 VALVE, SHOCK 1.300 X 0.012 IN.
    VALVE, SHOCK 1.300 X 0.012 IN.
  • 16
    0603-890 VALVE, SHOCK 1.300 X 0.015 IN.
    VALVE, SHOCK 1.300 X 0.015 IN.
  • 17
    2604-965 PISTON, 0.041 IN., ORIFICE
    PISTON, 0.041 IN., ORIFICE
  • 20
    0603-343 VALVE, SHOCK 1.100 X 0.008 IN.
    VALVE, SHOCK 1.100 X 0.008 IN.
  • 21
    0603-331 VALVE, SHOCK 0.700 X 0.008 IN.
    VALVE, SHOCK 0.700 X 0.008 IN.
  • 22
    0603-344 VALVE, SHOCK 1.100 X 0.010 IN.
    VALVE, SHOCK 1.100 X 0.010 IN.
  • 23
    0603-880 VALVE, SHOCK 0.900 X 0.012 IN.
    VALVE, SHOCK 0.900 X 0.012 IN.
  • 24
    2604-966 WASHER, TOP OUT
    WASHER, TOP OUT
  • 25
    0603-301 NUT, CAP
    NUT, CAP
  • 26
    2604-942 BODY, SHOCK
    BODY, SHOCK
  • 27
    2604-941 SLEEVE, ADJUSTER (INC. 28, 29)
    SLEEVE, ADJUSTER (INC. 28, 29)
  • 28
    0604-809 O-RING
    O-RING
  • 29
    0604-810 O-RING
    O-RING
  • 30
    2604-909 END CAP, SHOCK (INC. 31)
    END CAP, SHOCK (INC. 31)
  • 31
    0603-438 O-RING
    O-RING
  • 32
    2604-207 PLUG, BRASS
    PLUG, BRASS
  • 33
    2604-943 FITTING, ELBOW
    FITTING, ELBOW
  • 34
    2604-944 FITTING, STRAIGHT
    FITTING, STRAIGHT
