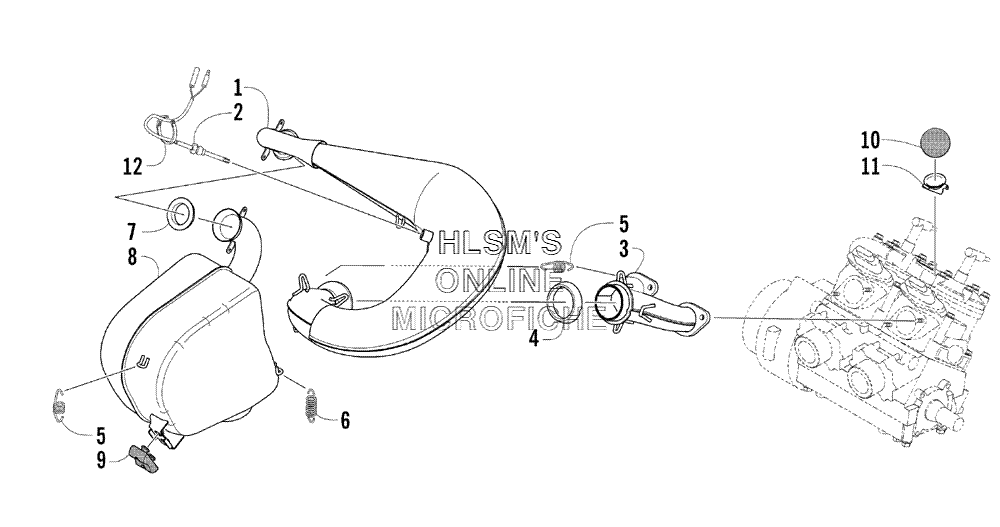

EXHAUST ASSEMBLY для Arctic Cat AC SNO PRO MOD - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1712-163 CHAMBER, EXPANSION, COATED
    CHAMBER, EXPANSION, COATED
  • 2
    0630-145 SENSOR, TEMPERATURE, EXHAUST
    SENSOR, TEMPERATURE, EXHAUST
  • 3
    1712-097 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 4
    1612-014 GASKET, EXHAUST
    GASKET, EXHAUST
  • 5
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 6
    0612-471 SPRING, EXHAUST
    SPRING, EXHAUST
  • 7
    0612-693 GASKET, EXHAUST, TAILPIPE
    GASKET, EXHAUST, TAILPIPE
  • 8
    1712-090 RESONATOR
    RESONATOR
  • 9
    1612-685 MOUNT, RESONATOR, RUBBER
    MOUNT, RESONATOR, RUBBER
  • 10
    1612-678 MOUNT, EXPANSION CHAMBER
    MOUNT, EXPANSION CHAMBER
  • 11
    1712-036 BRACKET, MOUNTING, EXPANSION CHAMBER
    BRACKET, MOUNTING, EXPANSION CHAMBER
  • 12
    0123-811 CABLE TIE, 4 IN.
    CABLE TIE, 4 IN.
