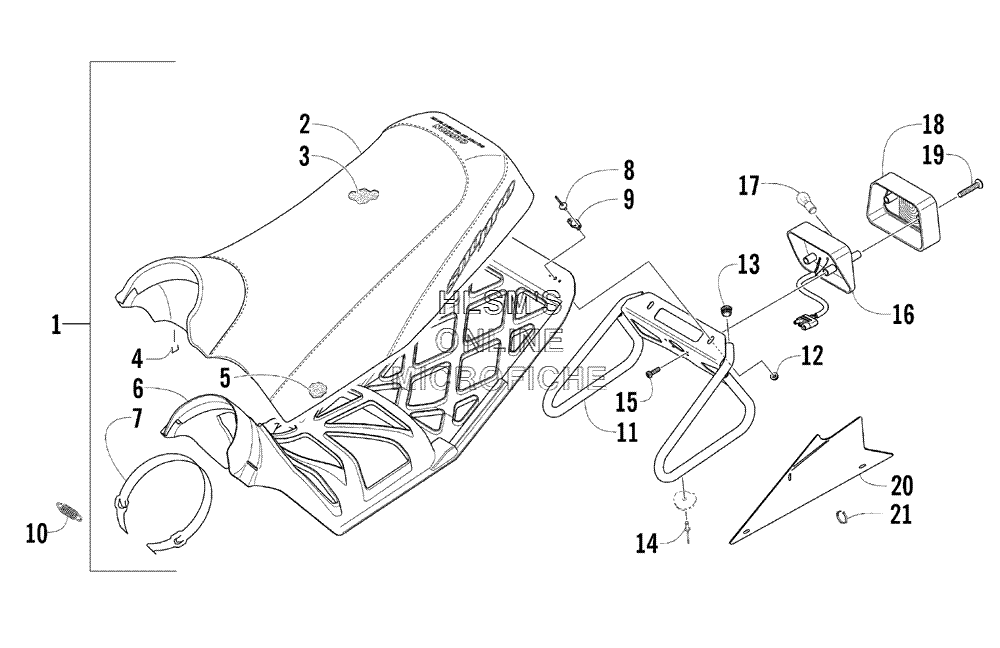

SEAT ASSEMBLY для Arctic Cat AC SNO PRO MOD - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    7998-433 COMPLETE SEAT ASSEMBLY (INC. 2, 9)
    COMPLETE SEAT ASSEMBLY (INC. 2, 9)
  • 2
    2706-844 COVER, SEAT
    COVER, SEAT
  • 3
    0717-194 FOAM, SEAT (UPPER)
    FOAM, SEAT (UPPER)
  • 4
    0624-528 STAPLE
    STAPLE
  • 5
    0617-461 FOAM, SEAT (LOWER)
    FOAM, SEAT (LOWER)
  • 6
    3606-452 BASE, SEAT
    BASE, SEAT
  • 7
    2706-768 STRAP, HOLD, DOWN, SEAT
    STRAP, HOLD, DOWN, SEAT
  • 8
    8061-508 RIVET
    RIVET
  • 9
    0716-858 HOLD, DOWN, SEAT
    HOLD, DOWN, SEAT
  • 10
    3606-549 SPRING, SEAT HOLD, DOWN STRAP
    SPRING, SEAT HOLD, DOWN STRAP
  • 11
    2706-885 SUBFRAME, SEAT
    SUBFRAME, SEAT
  • 12
    8047-366 NUT, LOCK
    NUT, LOCK
  • 13
    0606-654 PLUG, HOLE
    PLUG, HOLE
  • 14
    1623-130 RIVET
    RIVET
  • 15
    1623-251 SCREW, PLASTITE
    SCREW, PLASTITE
  • 16
    0609-664 TAILLIGHT W/SOCKET ASSEMBLY (INC. 17, 19)
    TAILLIGHT W/SOCKET ASSEMBLY (INC. 17, 19)
  • 17
    0109-460 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 18
    0609-665 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 19
    0609-666 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 20
    3706-128 KIT, NUMBER PLATE
    KIT, NUMBER PLATE
  • 21
    0123-788 CABLE TIE
    CABLE TIE
