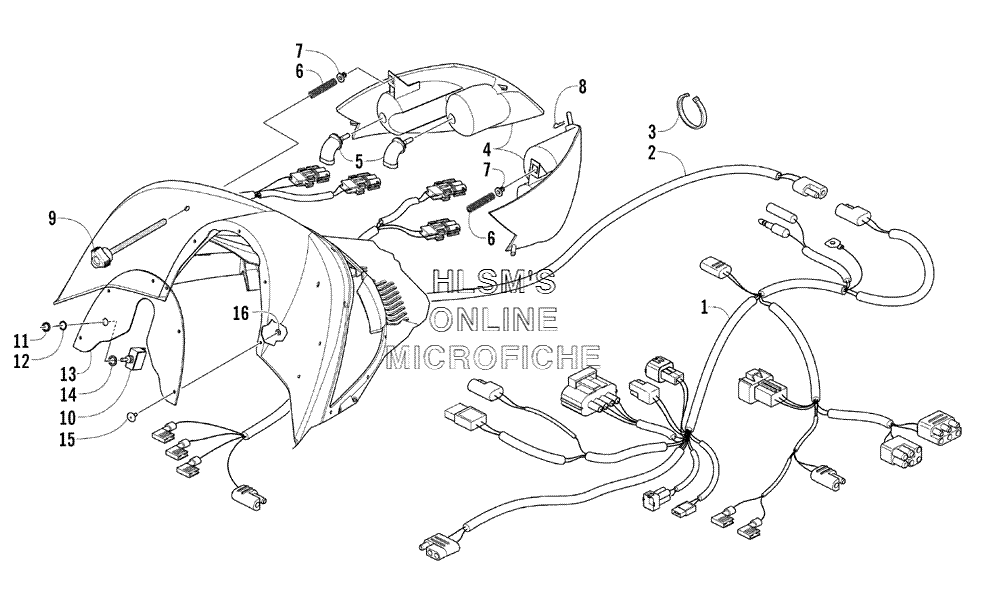

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat AC SNO PRO MOD - 2005 года выпуска`
-
№АртикулНазвание
-
10686-982 HARNESS, MAINHARNESS, MAIN
-
20686-980 HARNESS, HOODHARNESS, HOOD
-
30123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
40609-530 LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)
-
40609-531 LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)
-
50609-251 BULB, HEADLIGHTBULB, HEADLIGHT
-
60623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
71623-025 INSERTINSERT
-
81623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
100609-233 SWITCH, HIGH/LOW BEAM (INC. 11)SWITCH, HIGH/LOW BEAM (INC. 11)
-
110609-220 NUTNUT
-
120123-985 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
133606-446 PLATE, COVERPLATE, COVER
-
140623-153 WASHER, NYLONWASHER, NYLON
-
158061-506 RIVETRIVET
-
160123-149 WASHERWASHER
