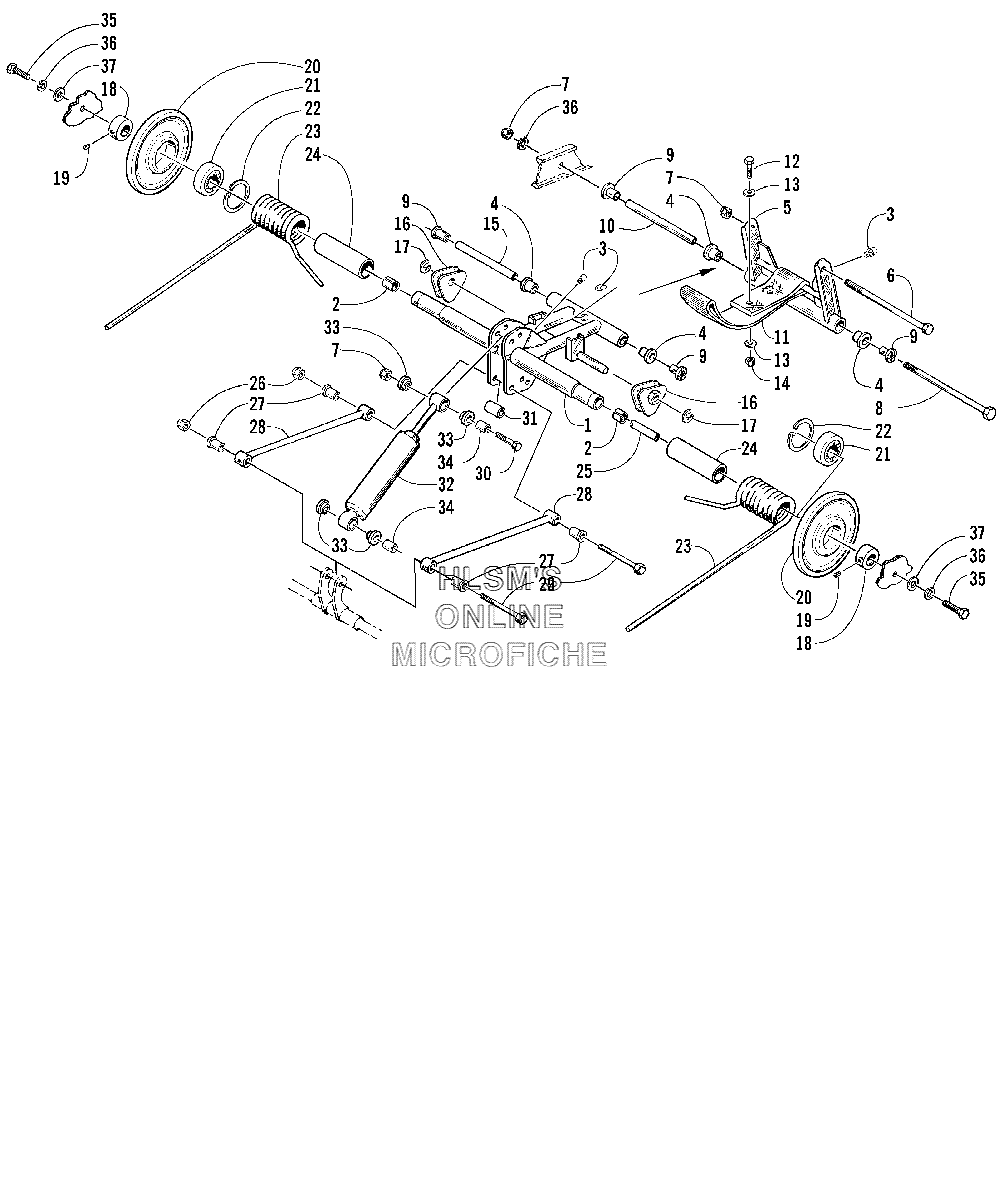

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat Z 440 ESR - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0704-639 ARM, IDLER (BLACK) (INC. 2 AND TWO NO. 3, 4)
    ARM, IDLER (BLACK) (INC. 2 AND TWO NO. 3, 4)
  • 2
    0603-083 BEARING
    BEARING
  • 3
    0623-922 FITTING, GREASE
    FITTING, GREASE
  • 4
    0104-386 BUSHING
    BUSHING
  • 5
    0704-643 ARM (REAR) (BLACK) (INC. ONE NO. 3 AND TWO NO. 4)
    ARM (REAR) (BLACK) (INC. ONE NO. 3 AND TWO NO. 4)
  • 6
    0623-106 SCREW, CAP
    SCREW, CAP
  • 7
    8040-486 NUT, LOCK
    NUT, LOCK
  • 8
    0623-105 SCREW, CAP
    SCREW, CAP
  • 9
    0603-061 AXLE, SERRATED
    AXLE, SERRATED
  • 10
    0604-194 TUBE, AXLE
    TUBE, AXLE
  • 11
    1604-860 STRAP, LIMITER
    STRAP, LIMITER
  • 12
    8002-042 SCREW, CAP
    SCREW, CAP
  • 13
    0623-184 WASHER
    WASHER
  • 14
    8040-366 NUT, LOCK
    NUT, LOCK
  • 15
    0604-204 AXLE, IDLER
    AXLE, IDLER
  • 16
    1604-204 BLOCK, SPRING ADJUSTER (RIGHT)
    BLOCK, SPRING ADJUSTER (RIGHT)
  • 16
    1604-205 BLOCK, SPRING ADJUSTER (LEFT)
    BLOCK, SPRING ADJUSTER (LEFT)
  • 17
    0623-138 RING, RETAINING
    RING, RETAINING
  • 18
    0704-853 COLLAR, LOCK
    COLLAR, LOCK
  • 19
    0623-217 SCREW, SET
    SCREW, SET
  • 20
    1604-690 WHEEL, IDLER (INC. 21, 22)
    WHEEL, IDLER (INC. 21, 22)
  • 21
    0107-598 BEARING
    BEARING
  • 22
    0123-798 RING, RETAINING
    RING, RETAINING
  • 23
    0704-856 SPRING, SUSPENSION (RIGHT)
    SPRING, SUSPENSION (RIGHT)
  • 23
    0704-857 SPRING, SUSPENSION (LEFT)
    SPRING, SUSPENSION (LEFT)
  • 24
    0114-254 SLEEVE, SPRING
    SLEEVE, SPRING
  • 25
    0114-163 AXLE, INNER CARRIAGE
    AXLE, INNER CARRIAGE
  • 26
    8041-486 NUT, LOCK
    NUT, LOCK
  • 27
    1604-498 AXLE, LINK, FLANGED
    AXLE, LINK, FLANGED
  • 28
    0704-350 LINK REAR SHOCK
    LINK REAR SHOCK
  • 29
    8002-233 SCREW, CAP
    SCREW, CAP
  • 30
    8002-227 SCREW, CAP
    SCREW, CAP
  • 31
    0704-854 SPACER, SHOCK LINK
    SPACER, SHOCK LINK
  • 32
    1604-455 SHOCK ABSORBER ARM (REAR) (INC. 33, 34)
    SHOCK ABSORBER ARM (REAR) (INC. 33, 34)
  • 33
    0604-321 BUSHING, SHOCK
    BUSHING, SHOCK
  • 34
    1604-185 SLEEVE, SHOCK
    SLEEVE, SHOCK
  • 35
    8002-224 SCREW, CAP
    SCREW, CAP
  • 36
    8051-277 WASHER, LOCK
    WASHER, LOCK
  • 37
    0623-044 WASHER
    WASHER
