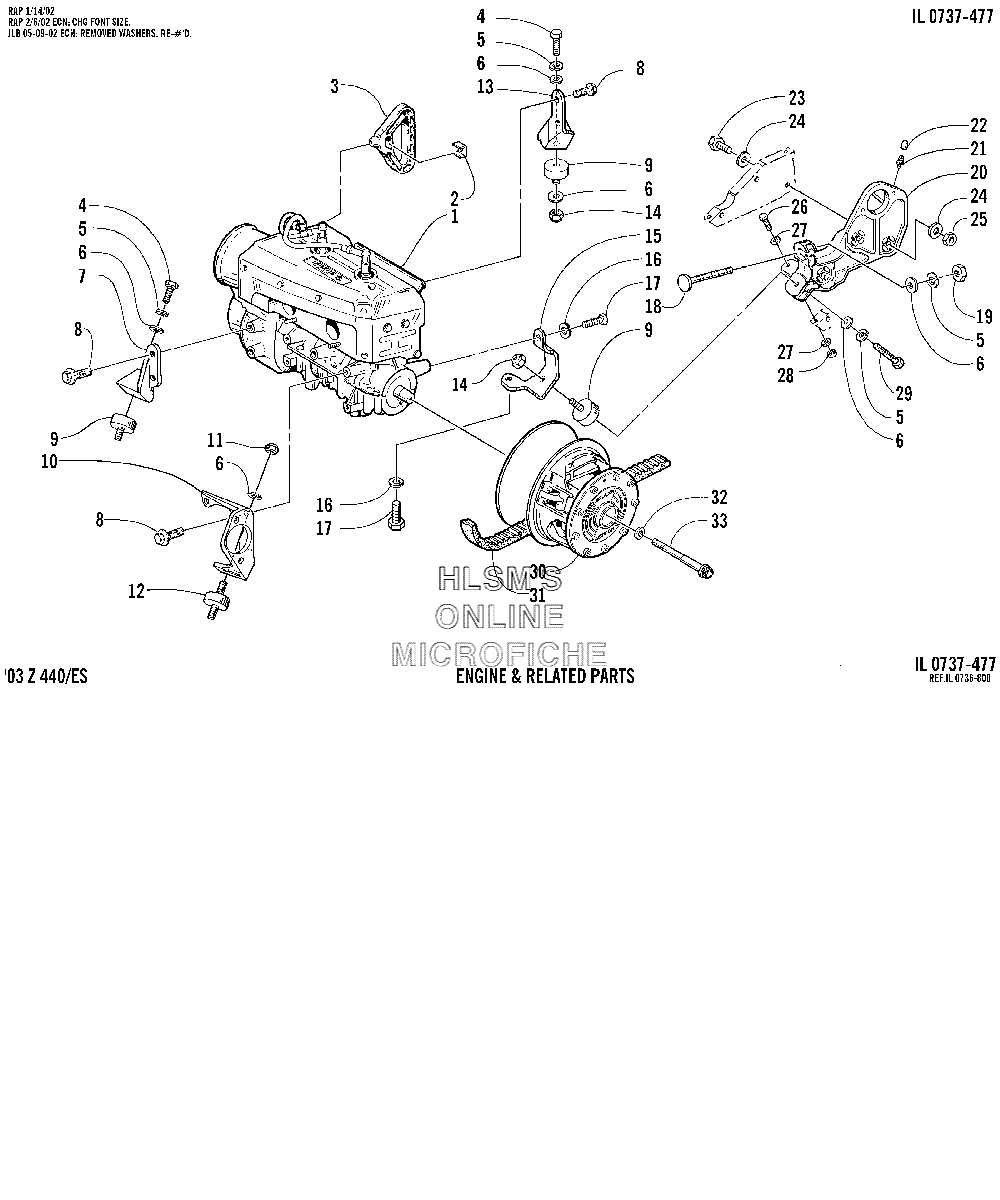

ENGINE AND RELATED PARTS для Arctic Cat Z 440 ESR - 2003 года выпуска
-
№АртикулНазвание
-
10662-334 ENGINE, AS44A6ENGINE, AS44A6
-
20606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
30636-363 HANDLE, RECOILHANDLE, RECOIL
-
48002-222 SCREW, CAPSCREW, CAP
-
58051-277 WASHER, LOCKWASHER, LOCK
-
68050-277 WASHERWASHER
-
70708-050 BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)
-
88020-130 SCREW, CAPSCREW, CAP
-
90608-217 MOUNT, ENGINEMOUNT, ENGINE
-
100608-287 BRACKET, ENGINE MOUNTING (LEFT) (FRONT)BRACKET, ENGINE MOUNTING (LEFT) (FRONT)
-
118041-486 NUT, LOCKNUT, LOCK
-
120608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
130708-048 BRACKET, ENGINE MOUNTING (RIGHT) (REAR)BRACKET, ENGINE MOUNTING (RIGHT) (REAR)
-
148040-486 NUT, LOCKNUT, LOCK
-
150708-412 BRACKET, ENGINE MOUNTING (LEFT) (REAR)BRACKET, ENGINE MOUNTING (LEFT) (REAR)
-
168051-332 WASHER, LOCKWASHER, LOCK
-
178002-402 SCREW, CAPSCREW, CAP
-
180608-197 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
198042-486 NUTNUT
-
200708-140 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 21, 22)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 21, 22)
-
210623-899 FITTING, GREASEFITTING, GREASE
-
220623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
238002-225 SCREW, CAPSCREW, CAP
-
240623-044 WASHERWASHER
-
250623-026 NUT, LOCKNUT, LOCK
-
268002-041 SCREW, CAPSCREW, CAP
-
278050-222 WASHERWASHER
-
288040-366 NUT, LOCKNUT, LOCK
-
298002-226 SCREW, CAPSCREW, CAP
-
300725-301 CLUTCH, DRIVECLUTCH, DRIVE
-
310627-021 BELT, DRIVEBELT, DRIVE
-
320623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
330623-804 BOLT, CLUTCHBOLT, CLUTCH
