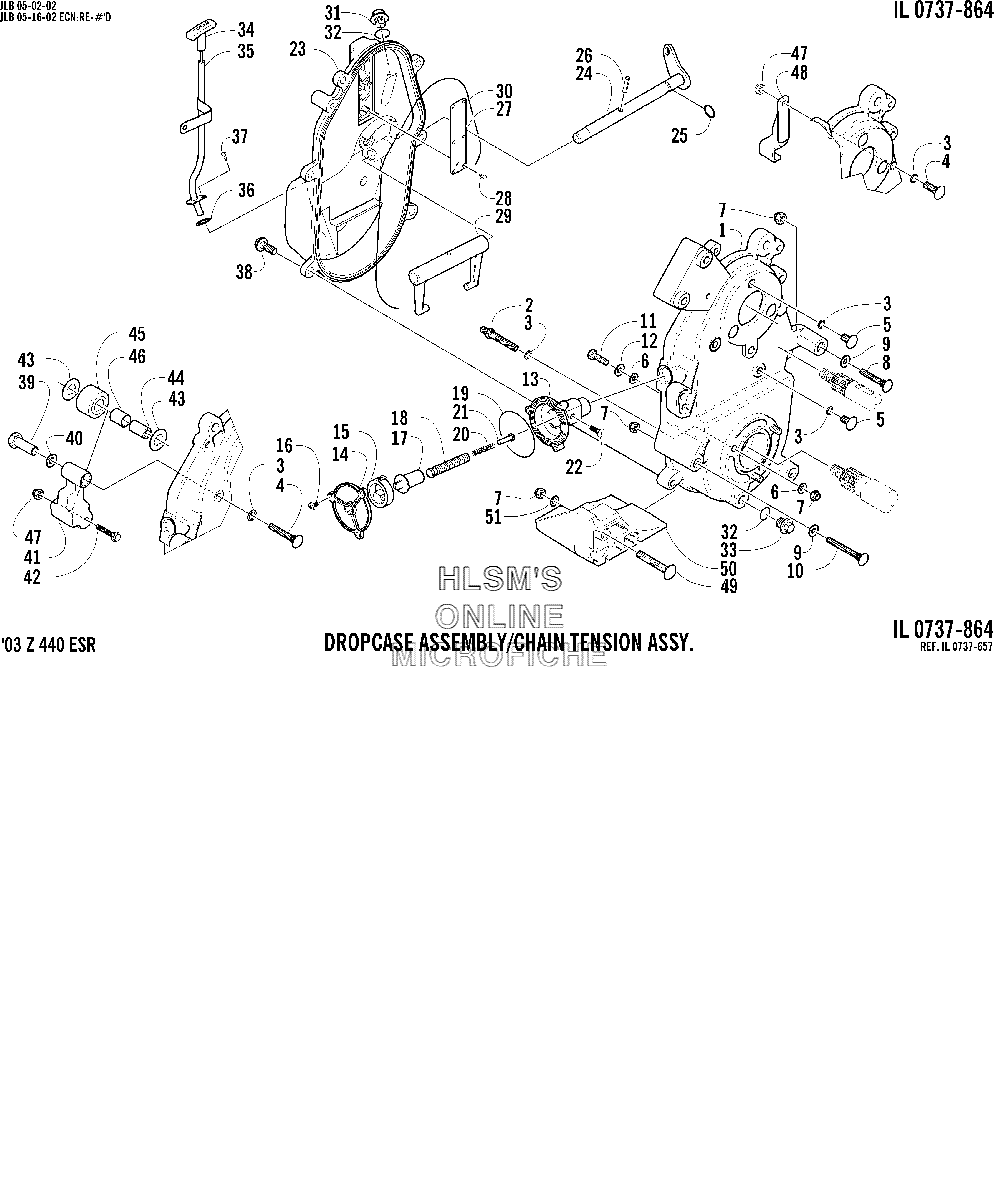

DROPCASE AND CHAIN TENSION ASSEMBLY для Arctic Cat Z 440 ESR - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0702-450 DROPCASE W/STUDS (INC. 2, 5)
    DROPCASE W/STUDS (INC. 2, 5)
  • 2
    0623-317 STUD, RIBBED
    STUD, RIBBED
  • 3
    0607-025 O-RING, STUD
    O-RING, STUD
  • 4
    0623-117 BOLT, RIBBED
    BOLT, RIBBED
  • 5
    0123-523 BOLT, RIBBED
    BOLT, RIBBED
  • 6
    8050-247 WASHER
    WASHER
  • 7
    8040-426 NUT, LOCK
    NUT, LOCK
  • 8
    8011-139 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 9
    8050-252 WASHER
    WASHER
  • 10
    8011-143 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 11
    8002-136 SCREW, CAP
    SCREW, CAP
  • 12
    8051-247 WASHER, LOCK
    WASHER, LOCK
  • 13
    0602-746 HOUSING, SCREW, CHAIN ADJUSTER
    HOUSING, SCREW, CHAIN ADJUSTER
  • 14
    0602-645 COVER, ADJUSTER HOUSING
    COVER, ADJUSTER HOUSING
  • 15
    0602-803 SPRING, POWER, ADJUSTER SHAFT
    SPRING, POWER, ADJUSTER SHAFT
  • 16
    0623-526 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 17
    0602-870 SHAFT, CHAIN ADJUSTER
    SHAFT, CHAIN ADJUSTER
  • 18
    0602-748 SCREW, CHAIN ADJUSTER
    SCREW, CHAIN ADJUSTER
  • 19
    0602-801 O-RING, COVER, CHAIN ADJUSTER
    O-RING, COVER, CHAIN ADJUSTER
  • 20
    0602-901 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 21
    0602-804 RIVET, BUTTON HEAD
    RIVET, BUTTON HEAD
  • 22
    0623-541 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    1602-243 COVER, DROPCASE
    COVER, DROPCASE
  • 24
    0702-350 SHAFT, SHIFT FORK
    SHAFT, SHIFT FORK
  • 25
    0602-021 SEAL, O-RING
    SEAL, O-RING
  • 26
    0623-542 PIN, SPRING
    PIN, SPRING
  • 27
    1602-151 COVER, OIL VENT
    COVER, OIL VENT
  • 28
    0623-081 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 29
    0602-085 FORK, SHIFT
    FORK, SHIFT
  • 30
    0602-437 SEAL, DROPCASE
    SEAL, DROPCASE
  • 31
    0623-293 PLUG, DRAIN
    PLUG, DRAIN
  • 32
    1602-213 O-RING
    O-RING
  • 33
    0602-479 PLUG, DRAIN, MAGNETIC
    PLUG, DRAIN, MAGNETIC
  • 34
    1602-107 STICK, OIL LEVEL
    STICK, OIL LEVEL
  • 35
    1602-106 TUBE, OIL LEVEL STICK
    TUBE, OIL LEVEL STICK
  • 36
    0605-014 O, O-RINGIL LEVEL STICK TUBE
    O, O-RINGIL LEVEL STICK TUBE
  • 37
    0623-914 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 38
    8020-134 SCREW, CAP
    SCREW, CAP
  • 39
    0602-681 NUT, ROLLER ARM
    NUT, ROLLER ARM
  • 40
    8050-222 WASHER
    WASHER
  • 41
    0602-675 ARM, CHAIN ROLLER
    ARM, CHAIN ROLLER
  • 42
    8002-045 SCREW, CAP
    SCREW, CAP
  • 43
    0623-525 WASHER
    WASHER
  • 44
    0602-676 SHAFT, CHAIN ROLLER
    SHAFT, CHAIN ROLLER
  • 45
    0702-129 ROLLER, CHAIN TIGHTENER (INC. 46)
    ROLLER, CHAIN TIGHTENER (INC. 46)
  • 46
    0602-383 BEARING, CHAIN TIGHTENER
    BEARING, CHAIN TIGHTENER
  • 47
    0623-122 NUT, LOCK
    NUT, LOCK
  • 48
    0602-466 BRACKET, CHAIN BACKING
    BRACKET, CHAIN BACKING
  • 49
    8011-137 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 50
    0616-964 GUARD, DROPCASE
    GUARD, DROPCASE
  • 51
    8050-242 WASHER
    WASHER
