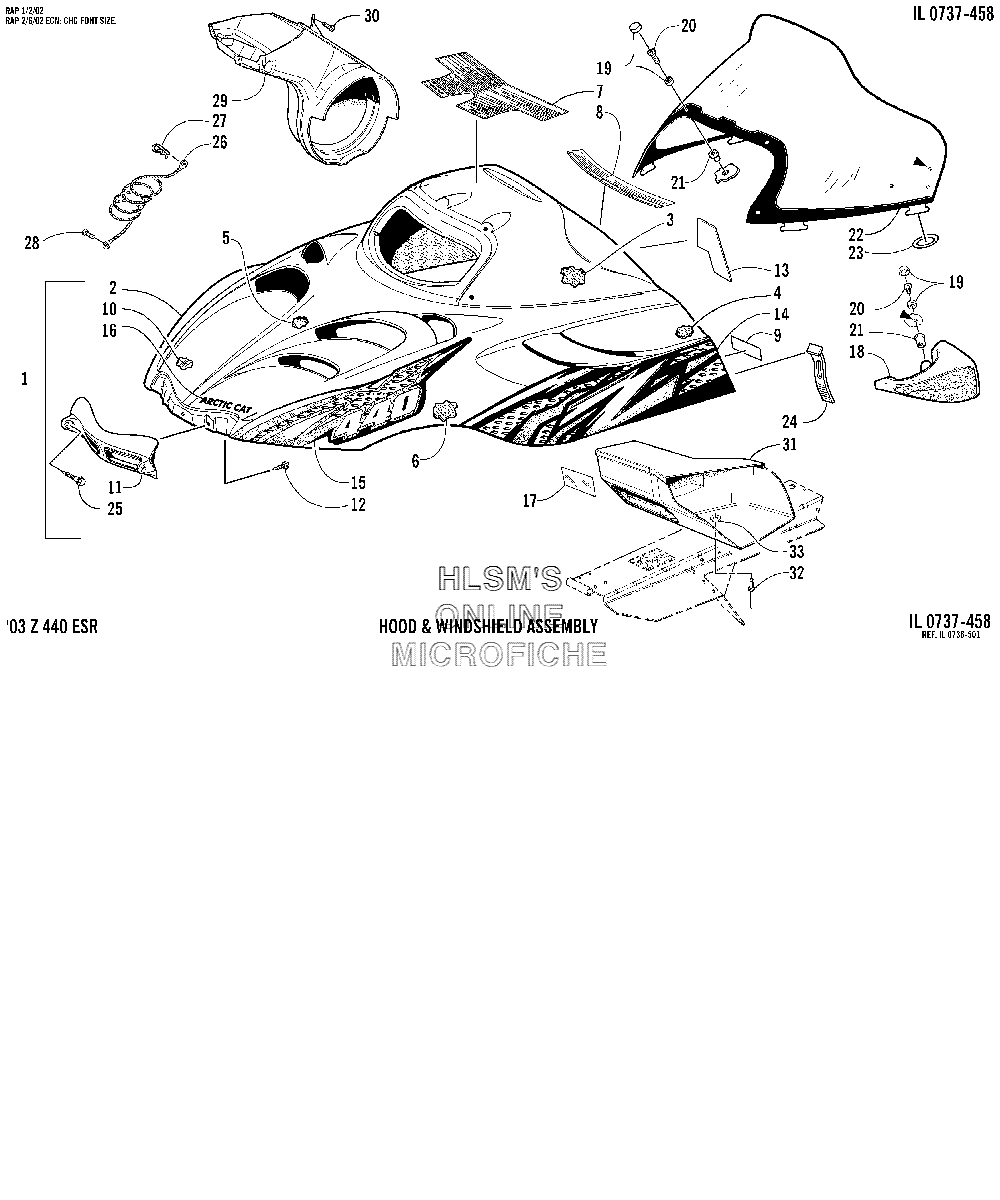

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Z 440 ESR - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-319 HOOD W/DECALS (BLACK) (INC. 2, 16)
    HOOD W/DECALS (BLACK) (INC. 2, 16)
  • 2
    1718-323 HOOD W/O DECALS (BLACK) (INC. 3, 13)
    HOOD W/O DECALS (BLACK) (INC. 3, 13)
  • 3
    0617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)
    FOAM, HOOD (UPPER/MIDDLE/RIGHT)
  • 3
    0617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)
    FOAM, HOOD (UPPER/MIDDLE/LEFT)
  • 4
    0617-322 FOAM, HOOD (UPPER/RIGHT)
    FOAM, HOOD (UPPER/RIGHT)
  • 4
    0617-323 FOAM, HOOD (UPPER/LEFT)
    FOAM, HOOD (UPPER/LEFT)
  • 5
    0617-328 FOAM, HOOD (MIDDLE)
    FOAM, HOOD (MIDDLE)
  • 6
    0617-326 FOAM, HOOD (REAR) (RIGHT)
    FOAM, HOOD (REAR) (RIGHT)
  • 6
    0617-327 FOAM, HOOD (REAR) (LEFT)
    FOAM, HOOD (REAR) (LEFT)
  • 7
    3611-485 DECAL, WARNING, GENERAL AND BRAKE
    DECAL, WARNING, GENERAL AND BRAKE
  • 8
    3611-970 DECAL, CAUTION, ENGINE/BATTERY/FUEL
    DECAL, CAUTION, ENGINE/BATTERY/FUEL
  • 9
    3611-509 DECAL, WARNING, SEATING CAPACITY
    DECAL, WARNING, SEATING CAPACITY
  • 10
    1606-938 FOIL, HOOD (RIGHT)
    FOIL, HOOD (RIGHT)
  • 10
    1606-939 FOIL, HOOD (LEFT)
    FOIL, HOOD (LEFT)
  • 11
    1606-720 HINGE, HOOD
    HINGE, HOOD
  • 12
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 13
    3611-580 DECAL REVERSE
    DECAL REVERSE
  • 14
    4611-688 DECAL, HOOD (LOWER/RIGHT)
    DECAL, HOOD (LOWER/RIGHT)
  • 14
    4611-689 DECAL, HOOD (LOWER/LEFT)
    DECAL, HOOD (LOWER/LEFT)
  • 15
    4611-692 DECAL, HOOD (UPPER/RIGHT)
    DECAL, HOOD (UPPER/RIGHT)
  • 15
    4611-693 DECAL, HOOD (UPPER/LEFT)
    DECAL, HOOD (UPPER/LEFT)
  • 16
    4611-470 DECAL, "ARCTIC CAT", HOOD
    DECAL, "ARCTIC CAT", HOOD
  • 17
    0706-548 TAPE, FOIL
    TAPE, FOIL
  • 18
    2639-477 MIRROR KIT (INC. SIX NO. 19, 21)
    MIRROR KIT (INC. SIX NO. 19, 21)
  • 19
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 20
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 22
    2606-366 WINDSHIELD
    WINDSHIELD
  • 23
    0616-032 O-RING
    O-RING
  • 24
    1606-067 STRAP, HOLD, DOWN
    STRAP, HOLD, DOWN
  • 25
    0623-690 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    2606-247 CABLE, HOOD
    CABLE, HOOD
  • 27
    0623-805 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 28
    0623-057 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 29
    1606-829 DUCT, AIR, INNER
    DUCT, AIR, INNER
  • 30
    0623-257 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 31
    1606-872 DUCT, AIR, OUTER
    DUCT, AIR, OUTER
  • 32
    8060-506 RIVET
    RIVET
  • 33
    0123-149 WASHER
    WASHER
